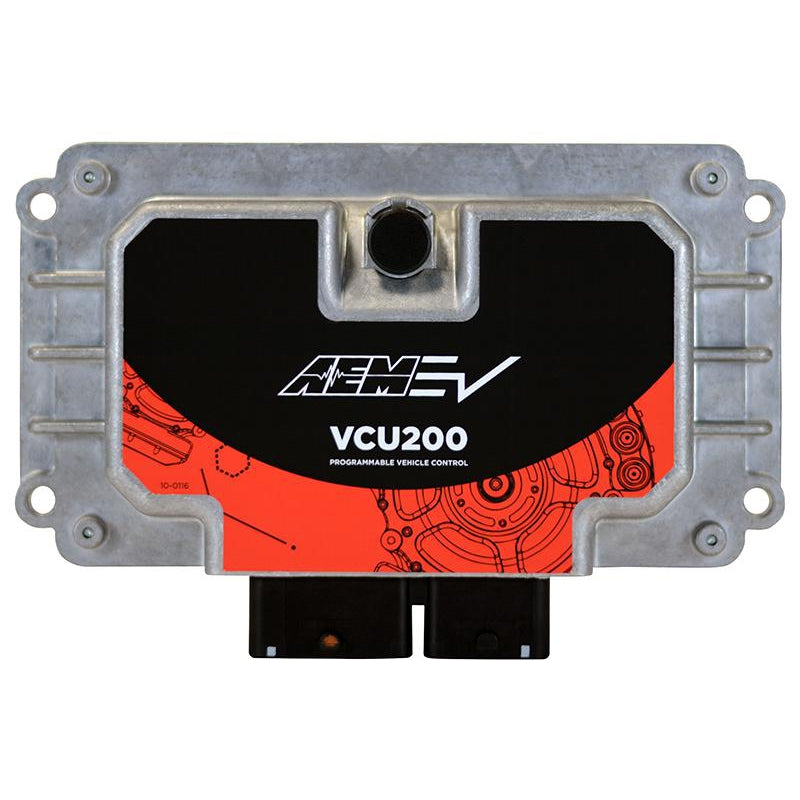

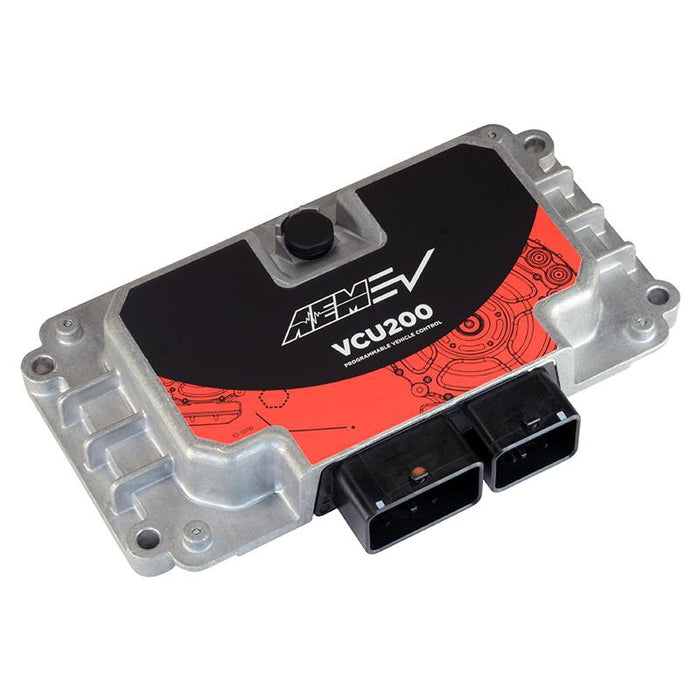

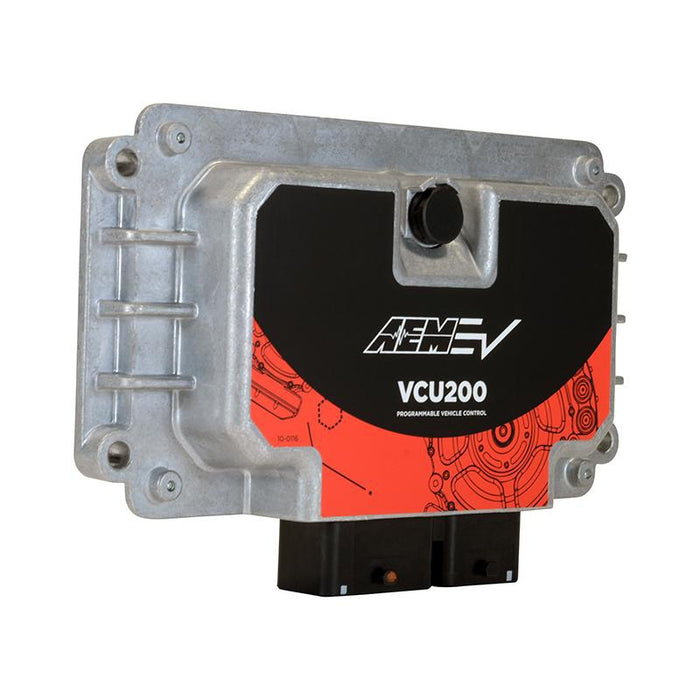

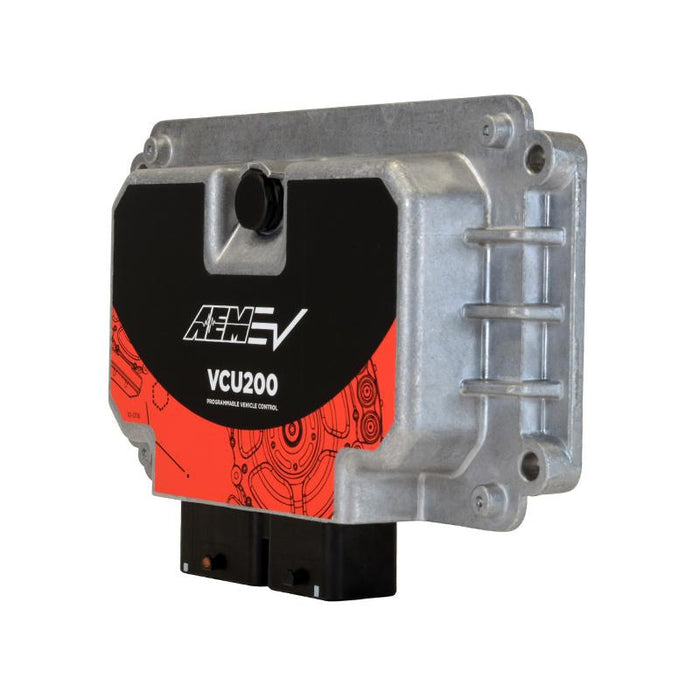

AEM VCU200 Programmable EV Vehicle Control Unit
Buy now pay later,no extra cost!
Payments from $396.03 with
AEM EV Vehicle Control Units (VCUs) are the missing link for high-performance EV street-conversion motorsports applications. They allow the calibrator to create customized torque management strategies applicable to a wide range of EV systems and component combinations. They integrate EV systems and unify the tuning experience providing motorsports- and conversion-ready features presented in a high feature, modern and customizable interface. Be In Control with AEM EV.
AEM EV's VCU200 is built on OEM hardware and features OEM quality strategies. Combined, these provide the highest level of reliability, and more importantly, safety for both the programmer and end-user.
The VCU200 in default configuration can manage a single inverter/motor system, communicate with four independent CAN bus networks, and it can be used on direct-drive and indirect-drive EV setups. Multiple motor control systems may be possible depending on the application (contact sales@aemev.com). Please refer to the Supported Applications Tab for supported Motors, Inverters, Battery Management Systems (BMS) and other EV devices.

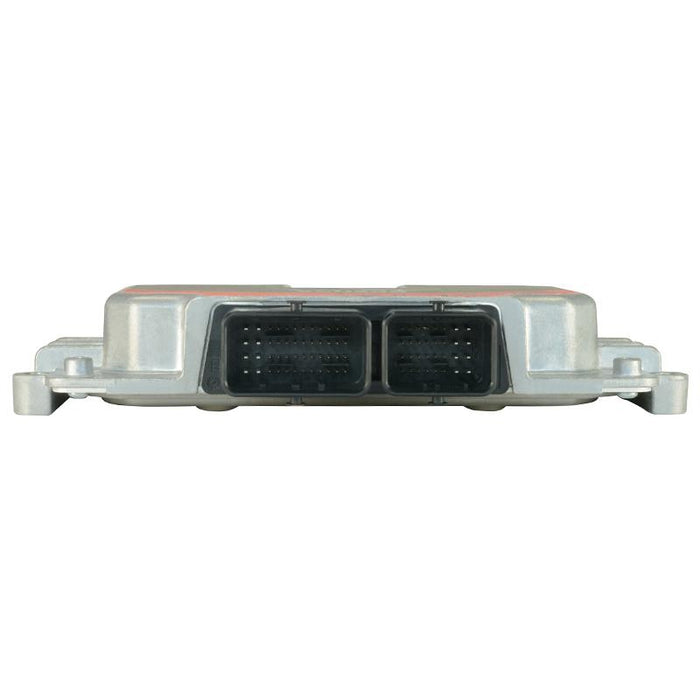

The AEM EV VCU200 features a waterproof aluminum enclosure (IP67K, -40C - 105C) and has an 80 pin connector. It is built on OEM hardware with OEM control strategies and uses proprietary AEMcal software for programming (learn more about AEMcal software).
The VCU200 can control one electric motor/inverter and link 4 independent controller area networks (CAN bus). A general set of hardware features is shown below. Actual features are application dependent (contact sales@aemev.com).
INPUTS:
- 13 Analog inputs
- 15 Digital Inputs
- 4 Frequency inputs
OUTPUTS:
- 12 Low-side drivers
- 6 High-side drivers
- 4 Half Bridges with shunt resistors which provide - 4 low side drivers (PWM) or 4 High Side Drivers
Primary functions of the AEM VCU200 include
- Input characterization including accelerator pedal, brake switch, PRND switches and other driver/vehicle inputs
- Redundancy and arbitration features for all safety-critical inputs
- Startup and shutdown sequencing of high voltage components, including independent contactor control
- CAN message translation for BMS, inverter, PDUs, and other CAN accessories
- Motor torque management dependent on vehicle operating states and other driver-selectable modes
- Closed-loop motor speed regulation for indirect drive transmission applications
- Dynamic torque limits that maximize safety and optimize performance
- Accessory control of cooling pumps, cooling fans, lights and more
- Diagnostics and fault detection including CAN message timeouts, thermal limits, contactor, and inverter enable cross-checks
DANGER!
USE THIS PRODUCT WITH EXTREME CAUTION. MISUSE AND/OR IMPROPER INSTALLATION CAN CAUSE SIGNIFICANT DAMAGE TO YOUR VEHICLE AND PROPERTY BELONGING TO YOU OR OTHERS, AS WELL AS PERSONAL INJURY OR DEATH. IF YOU ARE NOT TRAINED IN ELECTRICAL ENGINEERING OR COMPLETELY FAMILIAR WITH THE SAFETY REQUIREMENTS OF HIGH VOLTAGE ELECTRIC VEHICLES, AND/OR ARE NOT WELL-VERSED IN CONFIGURING THE NECESSARY CONTROL CALIBRATIONS IN THE AEM VEHICLE CONTROL UNIT (VCU), DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO INSTALL OR USE THIS PRODUCT. REFER THE INSTALLATION AND CALIBRATION TO A REPUTABLE INSTALLATION FACILITY, OR CONTACT AEM EV FOR A REFERRAL IN YOUR AREA. IT IS THE RESPONSIBILITY OF THE INSTALLER TO ULTIMATELY CONFIRM THAT THE INSTALLATION AND CALIBRATIONS ARE SAFE FOR ITS INTENDED USE.
AEM AND ITS AFFILIATES, SHAREHOLDERS, DIRECTORS, OFFICERS, AGENTS, REPRESENTATIVES, SUCCESSORS AND ASSIGNS (COLLECTIVELY, THE “AEM PARTIES”) HOLD NO RESPONSIBILITY FOR ANY DAMAGE OR INJURY THAT RESULTS FROM INSTALLATION OR MISUSE OF ANY AEM PRODUCTS. EXCEPT FOR, TO THE EXTENT APPLICABLE TO THE PRODUCTS YOU HAVE PURCHASED, AEM’S 12 MONTH LIMITED WARRANTY (WHICH CAN BE FOUND AT https://www.aemelectronics.com/about-us/warranty-returns), ALL AEM PRODUCTS ARE PROVIDED “AS IS” AND THE AEM PARTIES EXPRESSLY DISCLAIM ALL WARRANTIES, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE. THE AEM PARTIES SPECIFICALLY DISCLAIM ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ALL WARRANTIES ARISING FROM COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OR TRADE PRACTICE.
UNDER NO CIRCUMSTANCES SHALL ANY AEM PARTY BE LIABLE TO YOU OR ANY OTHER PERSON OR ENTITY FOR ANY DAMAGES OF ANY AMOUNT OR CHARACTER (INCLUDING, WITHOUT LIMITATION, ANY GENERAL, INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, CONSEQUENTIAL OR PUNITIVE DAMAGES) ARISING OUT OF, RELATED TO, OR IN CONNECTION WITH (1) YOUR INSTALLATION OF ANY AEM PRODUCTS OR (2) YOUR MISUSE OF ANY AEM PRODUCTS. IN NO EVENT SHALL ANY AEM PARTY BE LIABLE TO YOU OR ANY OTHER PERSON OR ENTITY FOR ANY LOST OR CORRUPTED DATA, LOST PROFITS, LOST REVENUES, LOSS OF USE, DIMINUTION IN VALUE, LOSS OF OTHER INTANGIBLES OR ANY SPECIAL, INCIDENTAL, INDIRECT, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, REGARDLESS OF WHETHER SUCH DAMAGES WERE FORESEEABLE AND WHETHER OR NOT THE AEM PARTIES WERE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS MAY NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS SHALL ONLY APPLY TO THE EXTENT PERMISSIBLE UNDER APPLICABLE LAW.
