Aeromotive 10-17 Mustang GT Stealth Eliminator Race System with 5.0L 4-V Fuel Rails

$5,257.52 NZD
SKU AER17348
Buy now pay later,no extra cost!

Payments from $525.75 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.

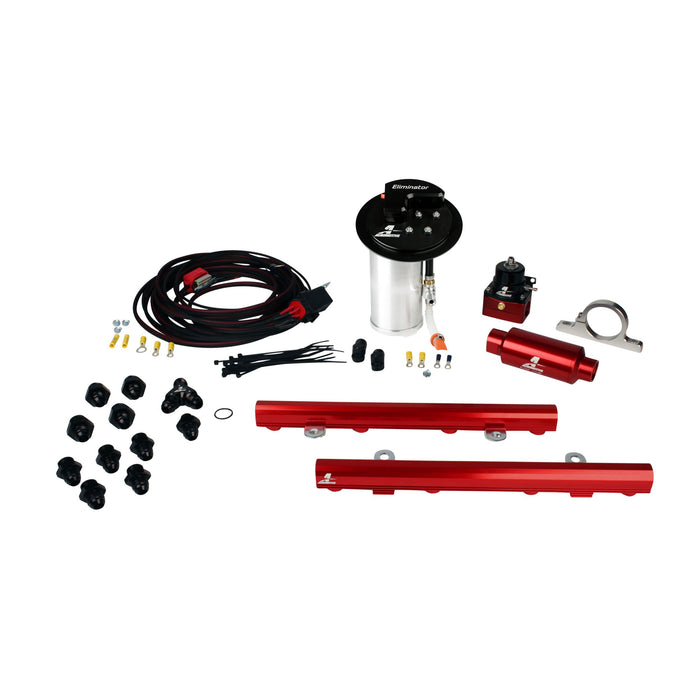

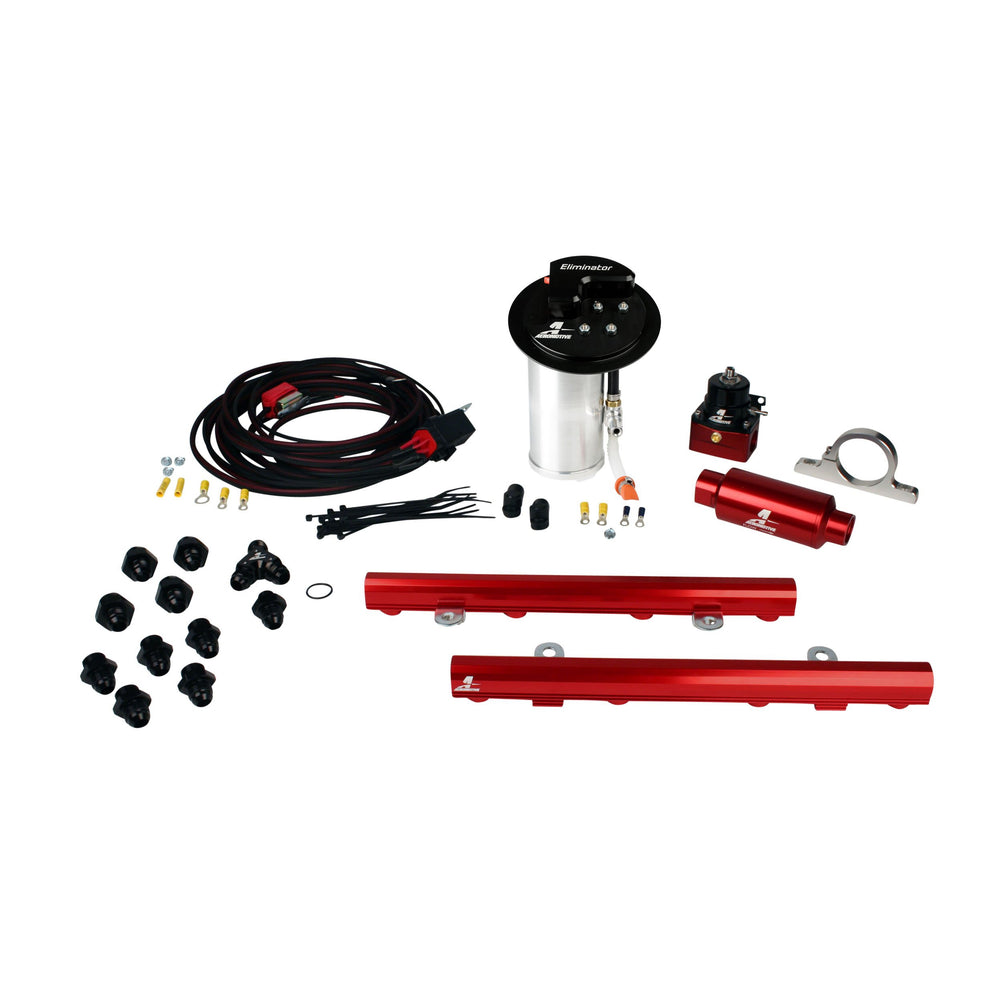

This system contains the following parts:
  • 1ea p/n 14130 Fuel Rails
  • 1ea p/n 13134 Fuel Pressure Regulator
  • 1ea p/n 18695 Fuel Pump Assembly
  • 1ea p/n 16307 Fuel Pump Wiring Kit
  • 1ea p/n 12305 Filter Bracket
  • 1ea p/n 12335 Filter Assembly, 40-micron
  • 1ea p/n 15107 One-Way Check Valve
  • 6ea p/n 15607 ORB-08 to AN-08 Fittings
  • 5ea p/n 15610 ORB-10 to AN-08 Fittings
  • 1ea p/n 15674 Y-Block, AN-08
  • 1ea p/n OR002-2910 AN-10 O-Ring

P/N 17348 10-17 Mustang GT Stealth EFI Fuel System.
For Late Model GT’s with original Coyote 4-V 5.0L.

  • Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated on gas.
  • For 2010-2017 Mustang GT Chassis with original 5.0L 4-V Coyote engine and/or equivalent intake.
  • Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.

Additional Information:

Weight 18.17 lbs
Dimensions 19 × 13 × 13 in
