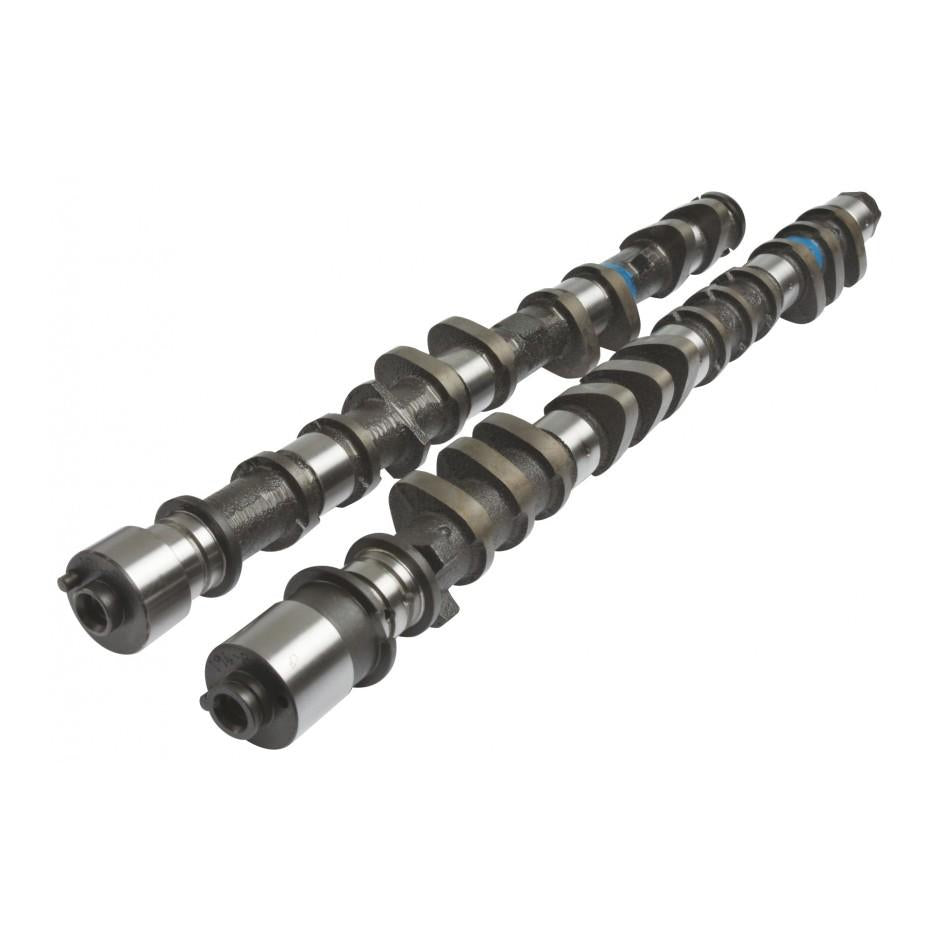

Kelford Cams 194-TA Toyota 4A-GE 20V Stage 1 Turbo Performance Cam
by Kelford Cams
Save 5%
Original Price
$1,178.66 NZD
Current Price
$1,119.72 NZD
SKU KC194-TA
Buy now pay later,no extra cost!
Payments from $111.97 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
264/264 Degrees advertised duration. 8.20mm/8.20mm lift.
Additional Information:
Turbo cams specifically designed for turbocharged 4A-GE 20V engines. These cams can use VVT or adjustable gears to set fixed timing.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 4A-GE, 20 VALVE | 194-TA | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.45mm | Exhaust: | 8.50mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 8.20mm | Exhaust: | 8.20mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 228 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 47 BBDC | ||
| IVC: | 45 ABDC | EVC: | 1 ATDC | ||||
| Suggested Centre Lines: | Intake: | 111 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 1.30mm | Exhaust: | 1.10 | ||
