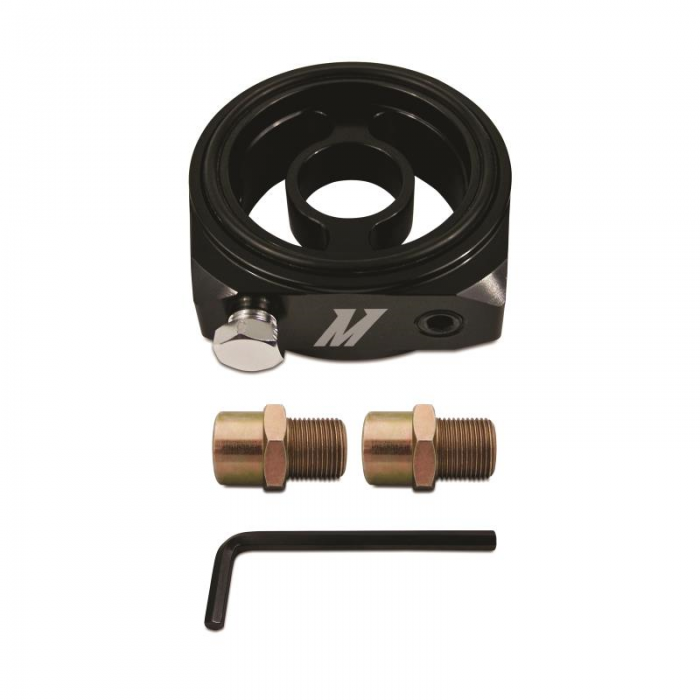

Mishimoto Oil Filter Sandwich Plate Adapter
by Mishimoto
Save 15%
Original Price
$171.35 NZD
Current Price
$145.65 NZD
SKU misMMOP-TPS
Buy now pay later,no extra cost!
Payments from $14.56 with
Enjoy now. Pay Later. Interest free. Learn More
The Mishimoto Oil Filter Sandwich Plate Adapters are made with 3 NPT ports to allow you to install an oil temperature sensor, oil pressure sensor, and/or a turbo oil feed. This easy-to-install plate eliminates the need to drill into your block by using the mounting point on your engine oil filter. Two adapters are included with purchase for fitment with multiple applications.
Features:
- 6061 aluminum, CNC-machined
- Three 1/8" NPT ports (with plug) for sensors/oil feed/etc.
- M20 x 1.5" & 3/4" UNF
- 2 Sandwich Plate Adapters
- Mishimoto Lifetime Warranty
Purchase Includes:
- (1) Oil Plate Sandwich Adapter with (3) 1/8" NPT Ports
- (1) Large O-ring
- (2) Sandwich Plate Adapters (1 x M20 x 1.5" & 1x 3/4" UNF 16)
- (2) Black Flush Fittings w/ Allen Key Bolt
- (1) Allen Key
- (1) Hex Head Fitting
- Installation Guide
- Mishimoto Lifetime Warranty
Product Specs:
| Material | 6061 Aluminum |
| Install Torque Specs | Sandwich Plate Adapter: 35 ft/lbs |
| Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact support@mishimoto.com |
| Overall Height | 2.8" |
| Overall Length | 3" |
| Overall Width | 1.125" |
