HKS GTIII-4R Turbine 0.81 A/R WG
by HKS
$6,594.46 NZD
SKU 14001-AK033
Buy now pay later,no extra cost!
Payments from $659.44 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*
GTIII-4R Turbine
Variable Ported Shroud
Ported shroud functions depending on the bolt's position.
When surge occurs due to the vehicle specification,ported shroud is able to prevent surging.
Features:
- A successor model of TO4Z. Compact in size, but withstandable over 700PS.
- Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.
- Ported shroud function is selectable using an adapter.
Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging. - Impeller wheel rotation sensor compatible. （The sensor will be available separately.）
Easy replacement with TO4Z series turbine and the turbo kit using TO4Z. (Oil inlet / outlet are designed for GTIII-4R).
* Water cooling line is not available.

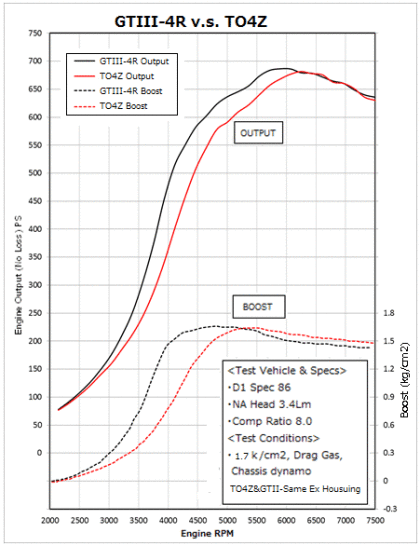

Engine Output & Boost
Note:
- The graph above shows the result of in-house testing.
The actual results may vary depending on each vehicle's specification(s).
| Product | Spec | Code No. | Price | Instruction Manual | Remarks |
|---|---|---|---|---|---|
| GTIII-4R | A/R 0.81 WG | 14001-AK033 | Turbo Flange: T4 |
