HKS GTIII-RS A/R 0.75 WG Turbine
by HKS
$4,819.03 NZD
SKU 14001-AK032
Buy now pay later,no extra cost!
Payments from $481.90 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*

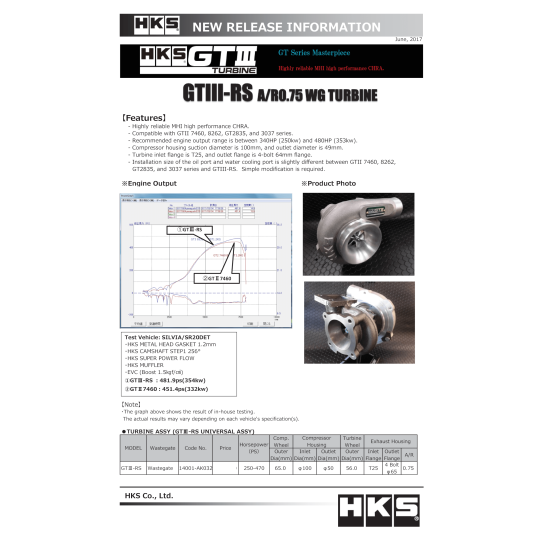

GTIII-RS A/R0.75 WG Turbine
Features:
- Highly reliable MHI high performance CHRA.
- Compatible with GTII 7460, 8262, GT2835, and 3037 series.
- Recommended engine output range is between 340HP (250kw) and 480HP (353kw).
- Compressor housing suction diameter is 100mm, and outlet diameter is 49mm.
- Turbine inlet flange is T25, and outlet flange is 4-bolt 64mm flange.
- Installation size of the oil port and water cooling port is slightly different between GTII 7460, 8262,
- GT2835, and 3037 series and GTIII-RS. Simple modification is required.
Engine Output:
Test Vehicle：Silvia/SR20DET
- HKS METAL HEAD GASKET 1.2mm
- HKS CAMSHAFT STEP1 256°
- HKS SUPER POWER FLOW
- HKS MUFFLER
- EVC (Boost 1.5㎏f/cm2)
1）GTIII-RS ：481.9ps(354kw)
2）GTII7460：451.4ps(332kw)
Note:
- The graph above shows the result of in-house testing.
The actual results may vary depending on each vehicle's specification(s).
| Product | Spec | Code No. | Price | Instruction Manual | Remarks |
|---|---|---|---|---|---|
| GTIII-RS | A/R 0.75 WG | 14001-AK032 | Turbo Flange: T25 |
