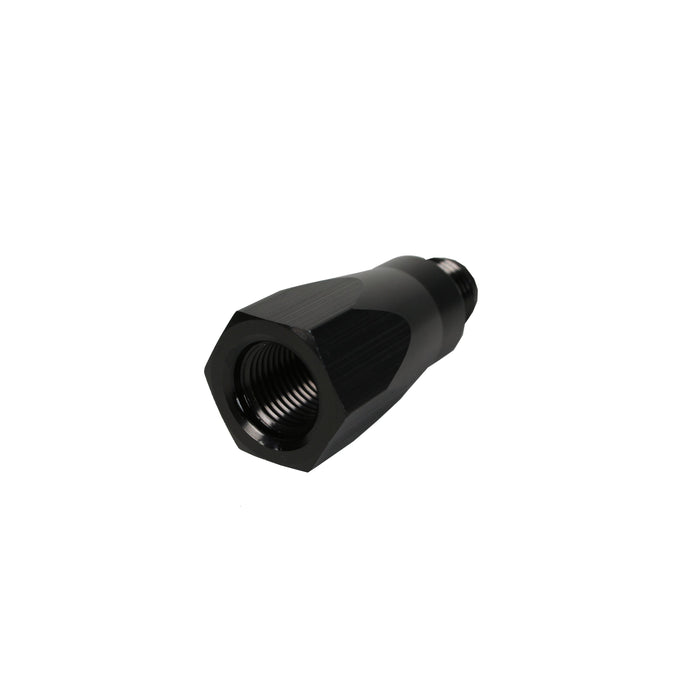

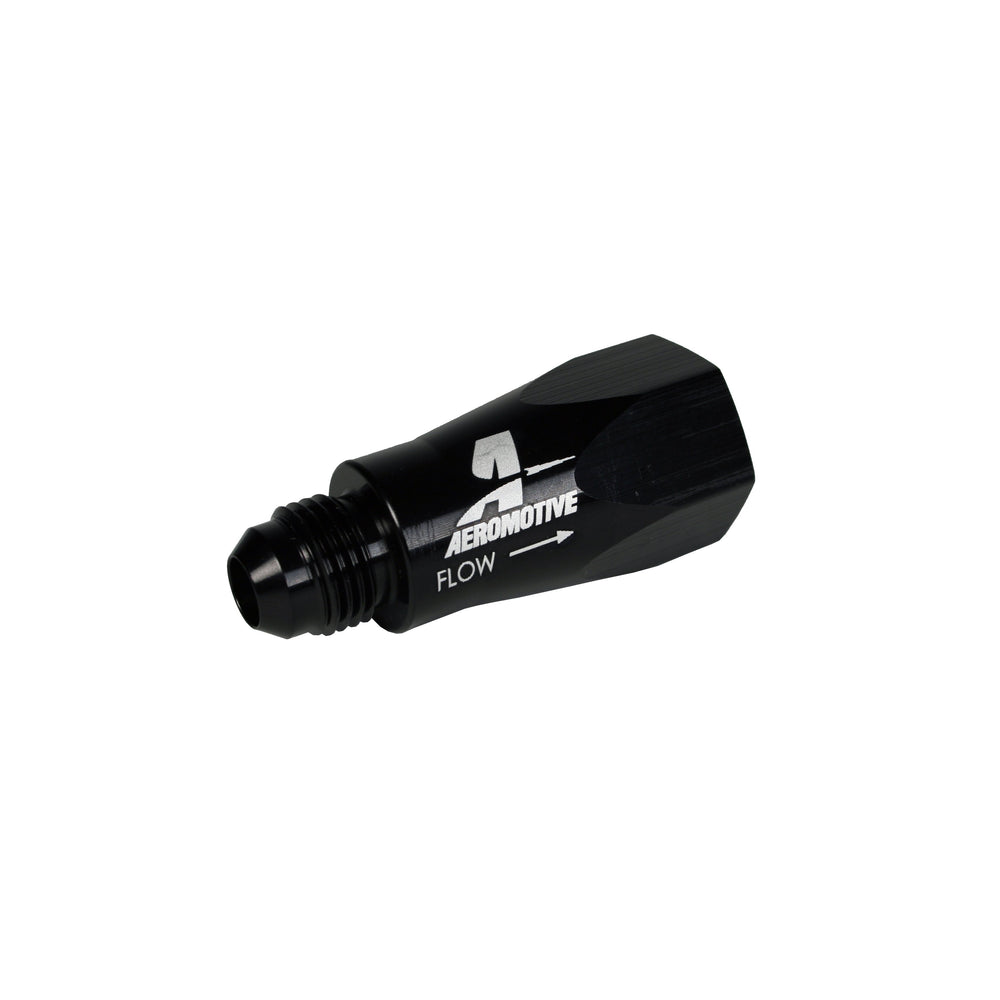

Aeromotive One-Way AN-06 Check Valve
by Aeromotive
$223.56 NZD
SKU AER15106
Buy now pay later,no extra cost!
Payments from $22.35 with
Enjoy now. Pay Later. Interest free. Learn More
High flow one-way check valves designed to prevent back-flow with minimal pressure drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual pumps are used and both pumps may not run simultaneously.
- CNC-machined billet aluminum and Type II bright dip black anodized finish.
- AN-06 male inlet, ORB-06 female outlet connections.
- Ideal configuration for easy installation into filter or fuel pump outlet port, no need for additional lines, hose-ends or fittings.
- Suitable for use with gasoline fuels only, not alcohol compatible.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Use AN-06 o-rings P/N 15621 for installation into ORB-06 port.
- Compatible ORB–06 to AN outlet adapters include:
- ORB-06 to AN-08: P/N 15649
- ORB-06 to AN-06: P/N 15606
Additional Information:
| Weight | 0.31 lbs |
| Dimensions | 5.5 × 3.63 × 1.25 in |
P/N 15106 AN-06 One-Way Check Valve
AN-06 inlet to ORB-06 outlet
- For installation after pump, before regulator.
- Requires ORB-06 to AN outlet fitting.
- Gasoline only, not rated for alcohol fuels.
