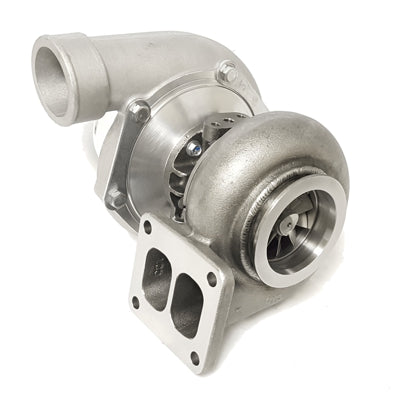

ATP Turbo Garrett GTW3884JB 62mm (aka GTW6265JB) Journal Bearing Tbo .84 A/R T4 DIV W/ 3" VB
by ATP Turbo
Save 10%
Original Price
$3,046.78 NZD
Current Price
$2,742.10 NZD
SKU GRT-TBO-J10
Buy now pay later,no extra cost!
Payments from $274.21 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTW3884JB 62mm (aka GTW6265JB) journal bearing turbo with .84 A/R T4 divided with 3" v-band exit turbine housing. 900 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6466 size turbo. Great performance at a competitive price!
GTW Series - Garrett's Performance solution to the popular 6466 size turbo. Great performance at a competitive price!
- Compressor Wheel Inducer: 62.3 mm
- Compressor Wheel Exducer: 84.4 mm
- Compressor Wheel Trim: 58
- Turbine Wheel Inducer: 74.2 mm
- Turbine Wheel Exducer: 64.6 mm
- Turbine Wheel Trim: 76
- Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-042
- Oil drain gasket: Product Code: ATP-GSK-027
- T4 Divided Inlet Flange (for Turbo Manifold)- Product Code: ATP-FLS-057
- T4 Divided Inlet Gasket - Product Code: ATP-GSK-014
- 3" Flat V-Band Outlet Flange (for Downpipe)- Product Code: ATP-FLS-063
- Matching Downpipe V-Band Outlet Clamp - Product Code: CLC-CLA-013
