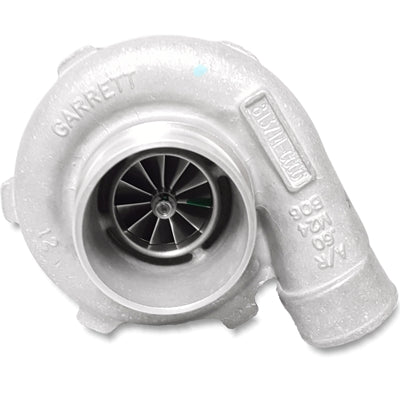

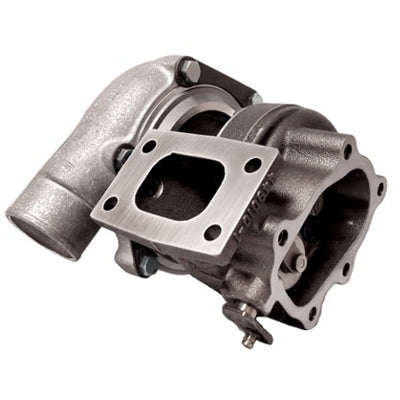

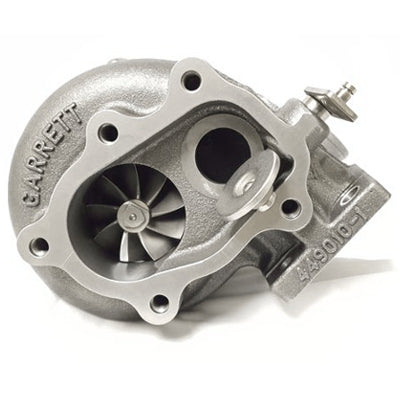

ATP Turbo Gen1 Garrett GTX2863R dual ball bearing turbo w/ .64 A/R T25 Int. w/g turbine hsg.
by ATP Turbo
Save 10%
Original Price
$3,695.92 NZD
Current Price
$3,326.33 NZD
SKU GRT-TBO-B78
Buy now pay later,no extra cost!
Payments from $332.63 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2863R dual ball bearing turbo with .64 A/R T25 internal wastegate turbine housing. 425HP potential flow.
The GTX2863R external dimensions is the same as a GT2860RS. As a result, no changes in the engine bay is required to upgrade from GT2860RS to GTX2863R!
- Compressor Wheel Inducer: 47.1mm
- Compressor Wheel Exducer: 63.4mm
- Compressor Wheel Trim: 56
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
Coolant (water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Inlet Flange, T25/GT25 Inlet Weld (stainless steel): Product Code: ATP-FLS-037 (mild steel - ATP-FLS-002 )
- Inlet Gasket, T25/GT25 Turbine Inlet: Product Code: GRT-GSK-004
- Outlet Flange, GT25R/GT28R/GT28RS/GT3071R-WG (stainless steel): Product Code: ATP-FLS-088 (mild steel - ATP-FLS-081)
- Outlet Gasket, 5-Bolt for Garrett T25 Flanged GT28/30R-WG Turbine Housings: Product Code: ATP-GSK-016
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor and Turbine Maps:
Applicable Garrett P/N's:
- 816365-5001S
- 836040-5003S
