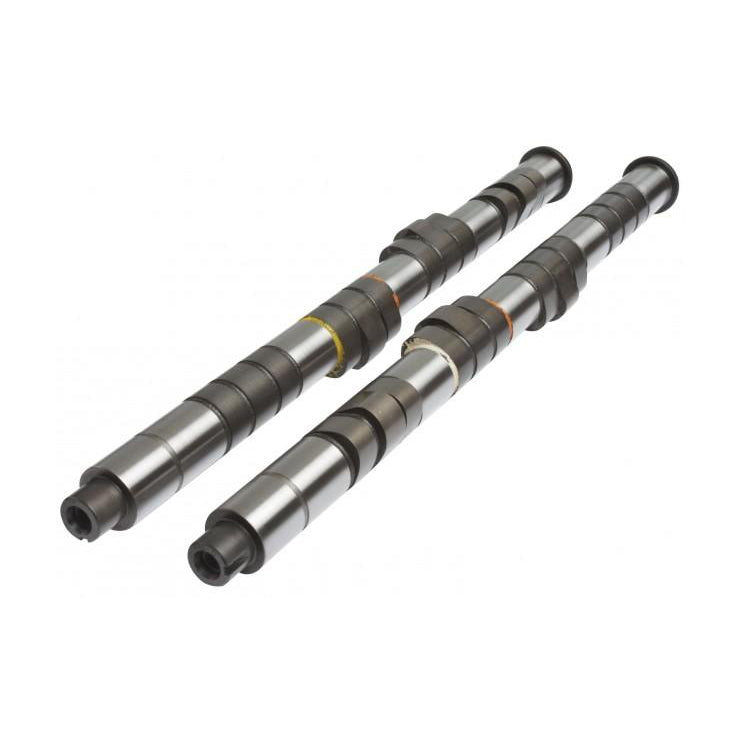

Kelford Cams 176-R1 Honda B16A/B18C VTEC Performance Cam
Buy now pay later,no extra cost!
Payments from $105.90 with

Note: Please check availability with us before ordering.
304/298 Degrees advertised duration. 13.00mm /11.30mm lift.
Additional Information
VTEC AllMotor drag racing cams. Head modifications are required to avoid valve to valve contact. Ideal for long stroke engines. Primary & Secondary lobe specifications are: Intake 270 & 270 / Exhaust 262 & 262 Degrees advertised duration. Intake 11.00mm & 11.00mm / Exhaust 10.00mm & 10.00mm lift.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| HONDA | B16A/B18C VTEC | 176-R1 | |||||
| Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
| Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 8.58mm | Exhaust: | 7.48mm | |||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
| Nett Valve Lift: | Intake: | 13.00mm | Exhaust: | 11.30mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 304 | Exhaust: | 298 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 274 | Exhaust: | 266 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 36 BTDC | EVO: | 57 BBDC | ||
| IVC: | 58 ABDC | EVC: | 29 ATDC | ||||
| Suggested Centre Lines: | Intake: | 101 | Exhaust: | 104 | |||
| VALVE | Lift @ TDC | Intake: | 5.68mm | Exhaust: | 4.40 | ||
