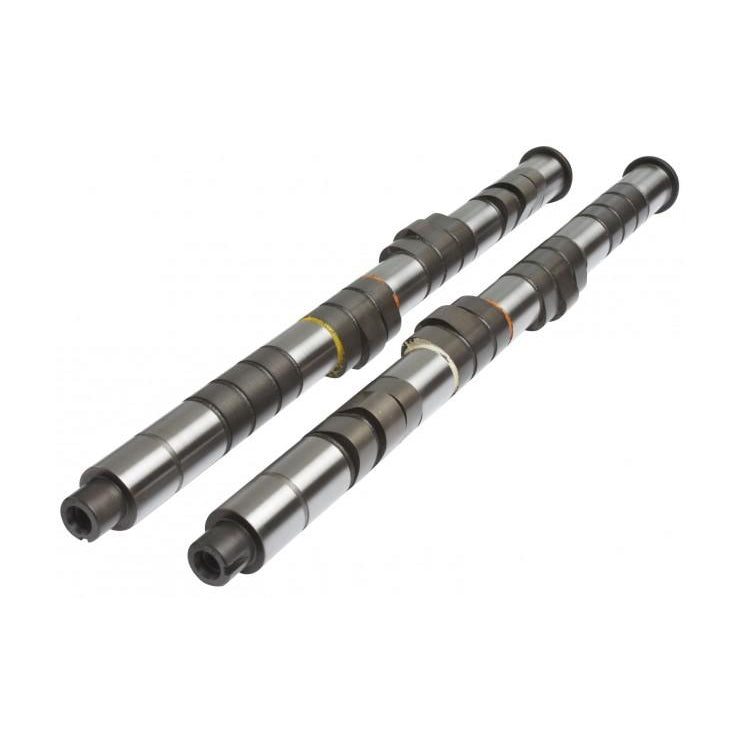

Kelford Cams 176-TS Honda B16A/B18C VTEC Turbo Street
by Kelford Cams
$1,217.85 NZD
SKU KC176-TS
Buy now pay later,no extra cost!
Payments from $121.78 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
274/274 Degrees advertised duration. 11.25mm /11.00mm lift.
Additional Information
The ultimate street turbo cams to suit 350-600HP engines. Valve timing is optimised for turbo setups helping produce a broader power band compared to OEM cams.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| HONDA | B16A/B18C VTEC | c | |||||
| Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
| Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 7.45mm | Exhaust: | 7.29mm | |||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
| Nett Valve Lift: | Intake: | 11.25mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 274 | Exhaust: | 274 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 236 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 10 BTDC | EVO: | 52 BBDC | ||
| IVC: | 46 ABDC | EVC: | 4 ATDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 114 | |||
| VALVE | Lift @ TDC | Intake: | 1.96mm | Exhaust: | 1.40 | ||
