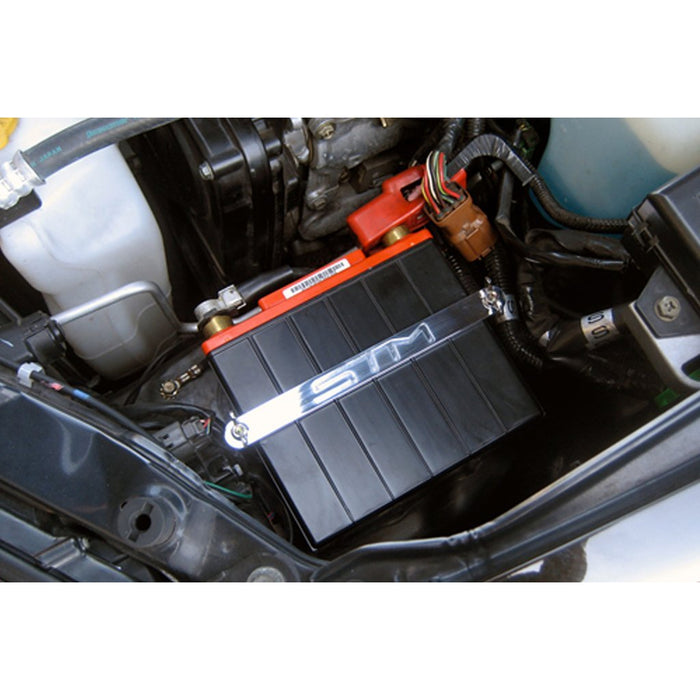

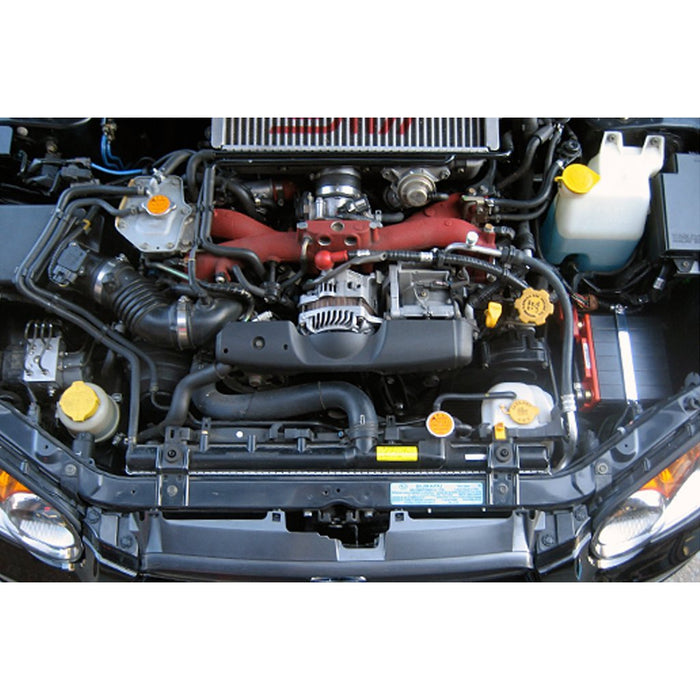

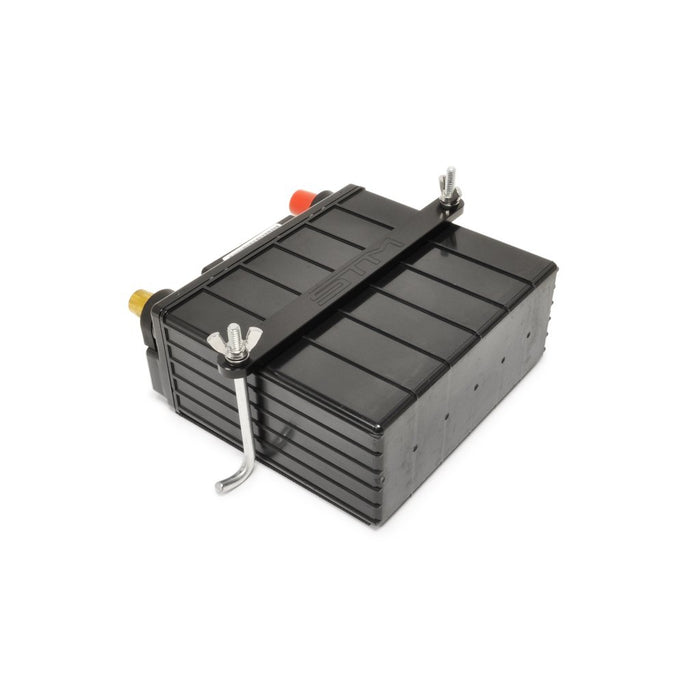

The STM Small Battery Kit for the 2002-2007 WRX and STi models includes everything needed to install in minutes. The factory battery weighed in at just over 38 pounds while the STM Kit with Odyssey small battery is just 14 pounds, saving you 20 pounds while lowering the center of gravity of that weight.
Features:
- Utilizes Existing Points for Mounting
- Lower Center of Gravity
- Non-Slip Pad to Keep Battery Snug and Reduce Shock
- Raw Aluminum or Black Anodized Tie Down
- Stainless Hardware
Vehicle Fitment:
- 2002-2007 Subaru WRX
- 2002-2007 Subaru STi
Weights:
|
Stock Battery |
38 Pounds |
| STM Kit with Odyssey PC680 | 14 Pounds |
| STM Kit with Genesis (16EP) | 13.25 Pounds |

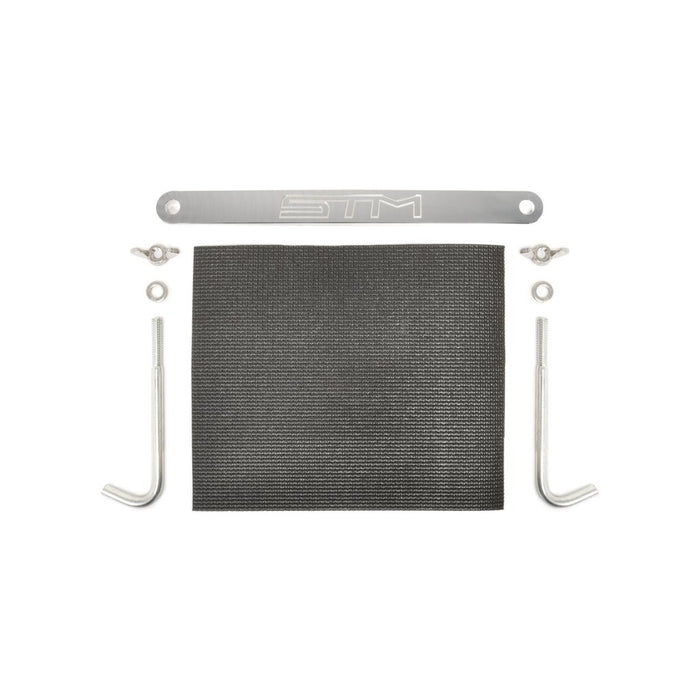

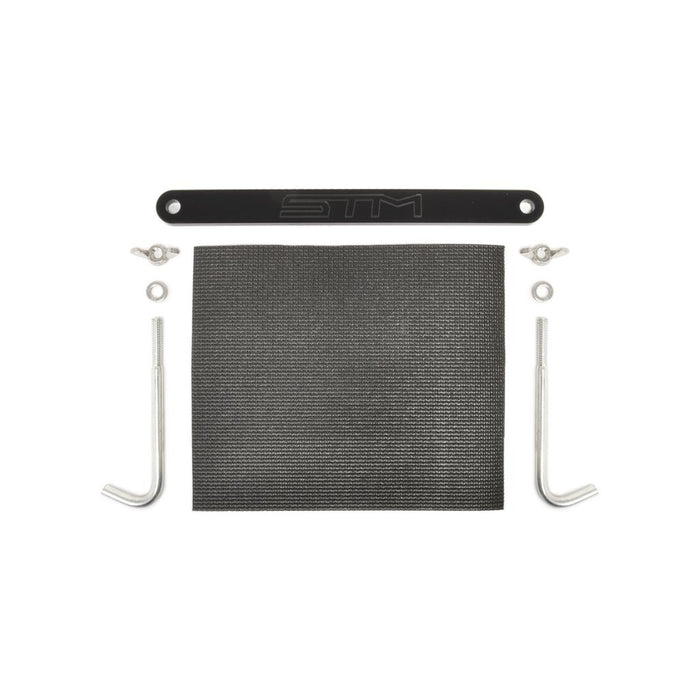

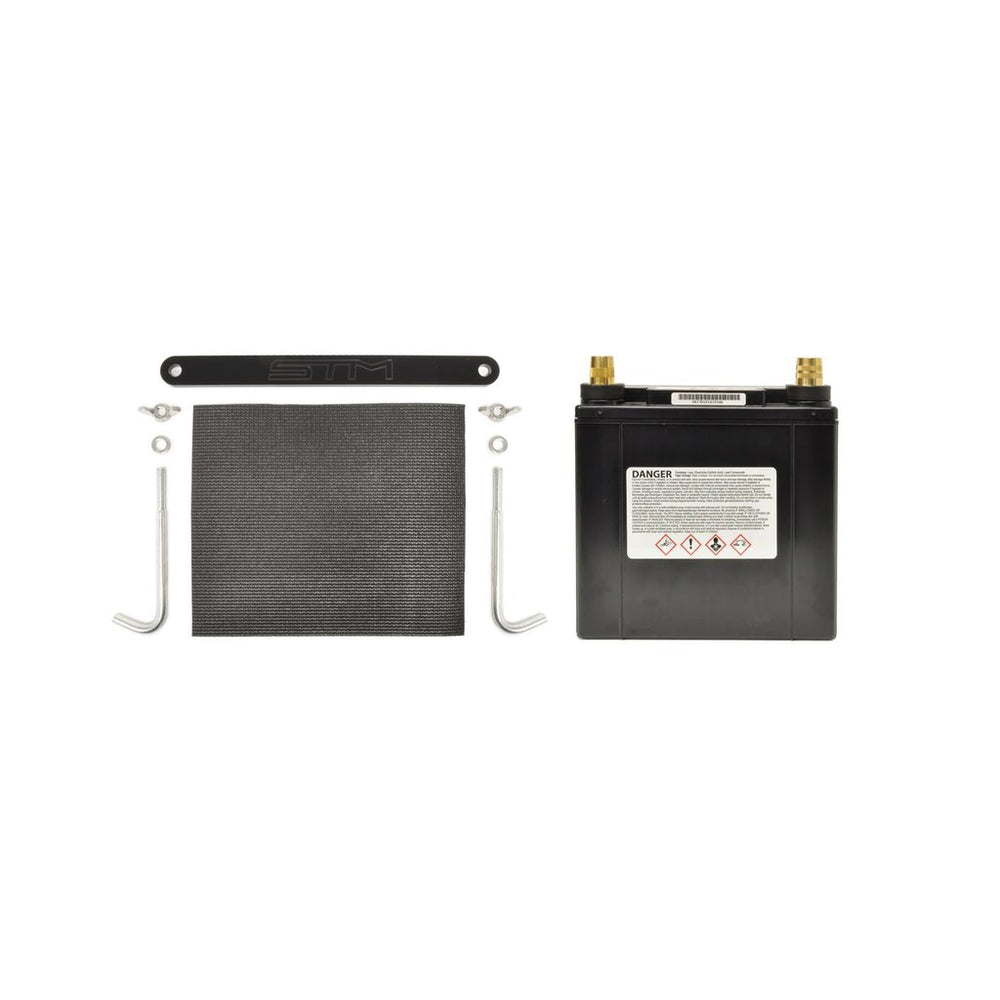

Battery Kits Include:
- (1) Choice of STM Tie Down
- (Optional) Battery & Terminals (3217-0006)
- (2) Small STM "J" Mounting Brackets (For 02-07 WRX/STi)
- (1) Long STM "J" Mounting Bracket (Used for other Subaru Applications)
- (2) M6 Stainless Wing Nuts
- (2) M6 Stainless Lock Washers
Install Notes:
Small batteries can fail if the posts are not torqued to 50 inch pounds. Additional torque will cause damage to your battery, so please be careful when installing.
Performance Notes:
While we, and most of the racing community, use these as replacement car batteries, these batteries are not intended for that use.
Warranty:
STM does not warranty batteries. Please contact the manufacturer with any performance concerns. No returns on batteries or electronics.
Which battery should I use?

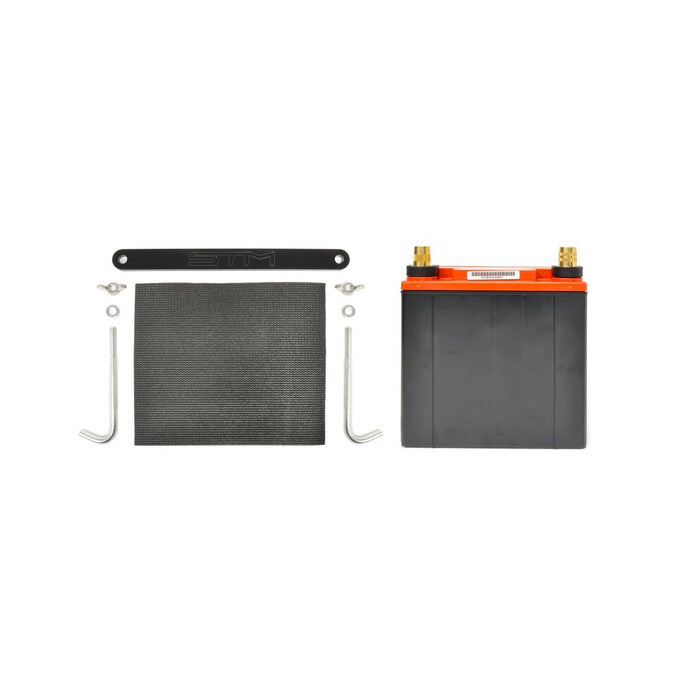

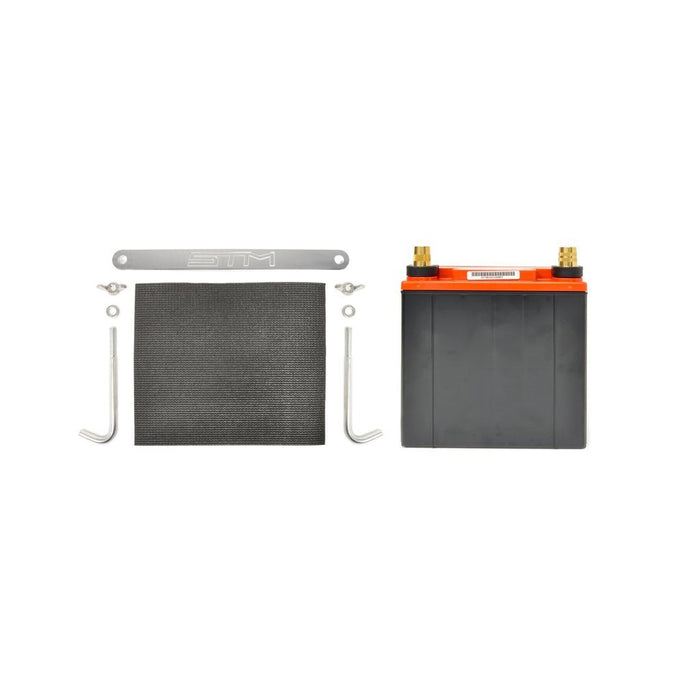

Odyssey PC680 Battery:
| Pulse (5-second) Hot Cranking Amps (PHCA): 520 | 15.85 pounds (Save 21.15 pounds vs stock) |
| Cold Cranking Amps (CCA): 170 | |
| 20Hr Nominal Capacity (Ah): 16 | |
| Reserve Capacity Minutes: 24 |

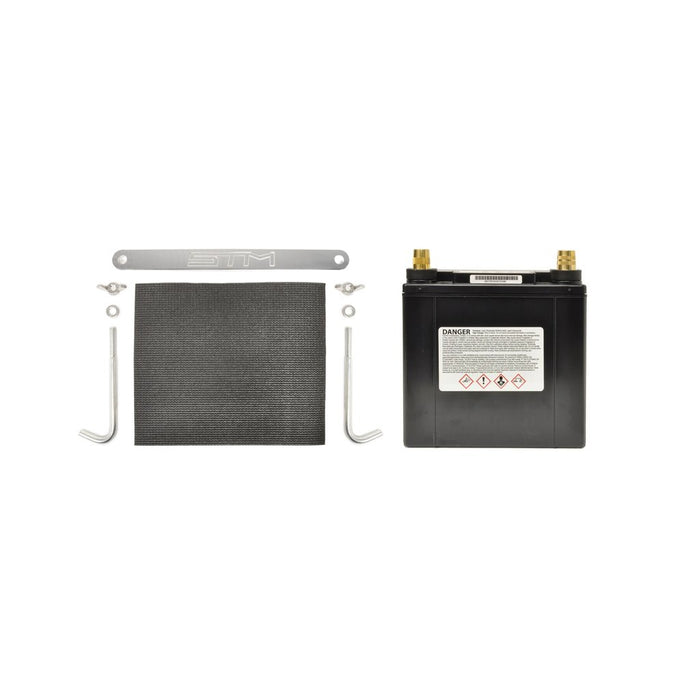

Genesis (16EP) G12V16Ah10EP Battery:
| Voltage: 12 | 15.10 pounds (Save 21.9 pounds vs stock) |
| Capacity: 16Ah @ 10Hr | |
| Terminal Type: M6 Threaded Insert | |
| Chemistry: Thin Plate Pure Lead-Tin | |
| Case Material: Flame Retardant ABS Plastic | |
| Mfg Warranty: 12 Month | |
| Cycle Charge Voltage: 14.7V to 15.0V at 77°F | |
| Standby Charge Voltage: 13.5V to 13.8V at 77°F | |
| Maximum Charge Current: No charge current limits | |
| Shelf Life w/o Charge: 2 years | |
| Operating Temperature: -40°F to 113°F | |
| Expected Trickle Life (@ 25°C): 10 years | |
| Capacity Range: 16-20Ah (~80-90wpc) |
