The STM Small Battery Kit for the 2G Eclipse and Talon is a direct replacement for your giant, heavy, stock battery and will drop 26 pounds from the front of the car! Less Weight = Free Power! Not to mention it looks great, and opens up the engine bay.

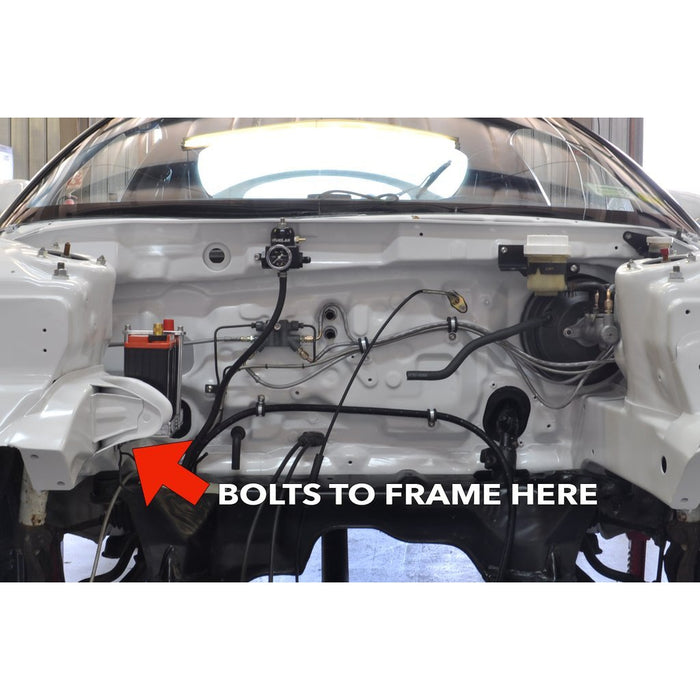

The STM battery kits utilize existing mounting points on the 2G for a clean, bolt-on install and includes the STM engraved billet aluminum base, stainless mounting hardware and your choice of STM tie down plate. This kit is available with or without the battery and terminals.
More Installed pictures coming soon!
If you have any questions about any of our parts please feel free to give us a call directly!
Features:
- Billet Aluminum Base
- Tig-Welded Aluminum
- CNC Engraved Plates
- Utilizes Existing Bolt Holes for Mounting
- Choice of Tie Down Plate
- Stainless Hardware
- Made in the USA!
- See the chart below for weights

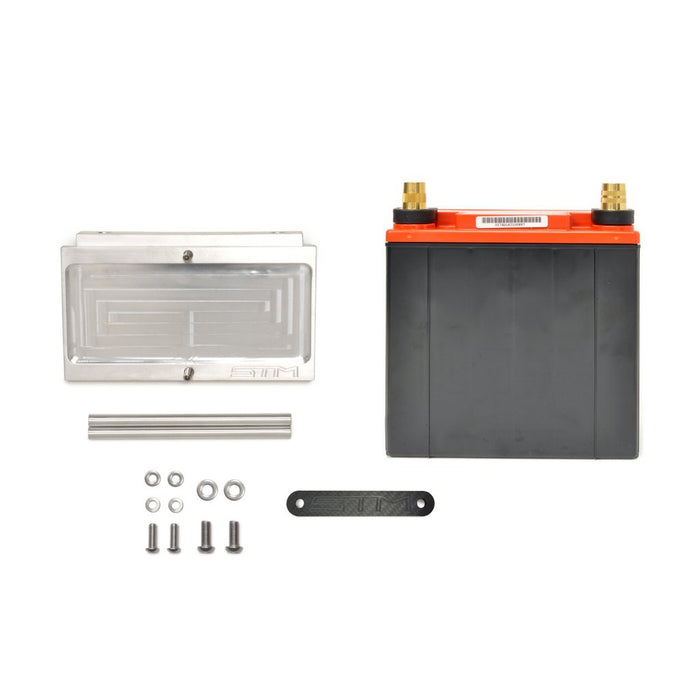

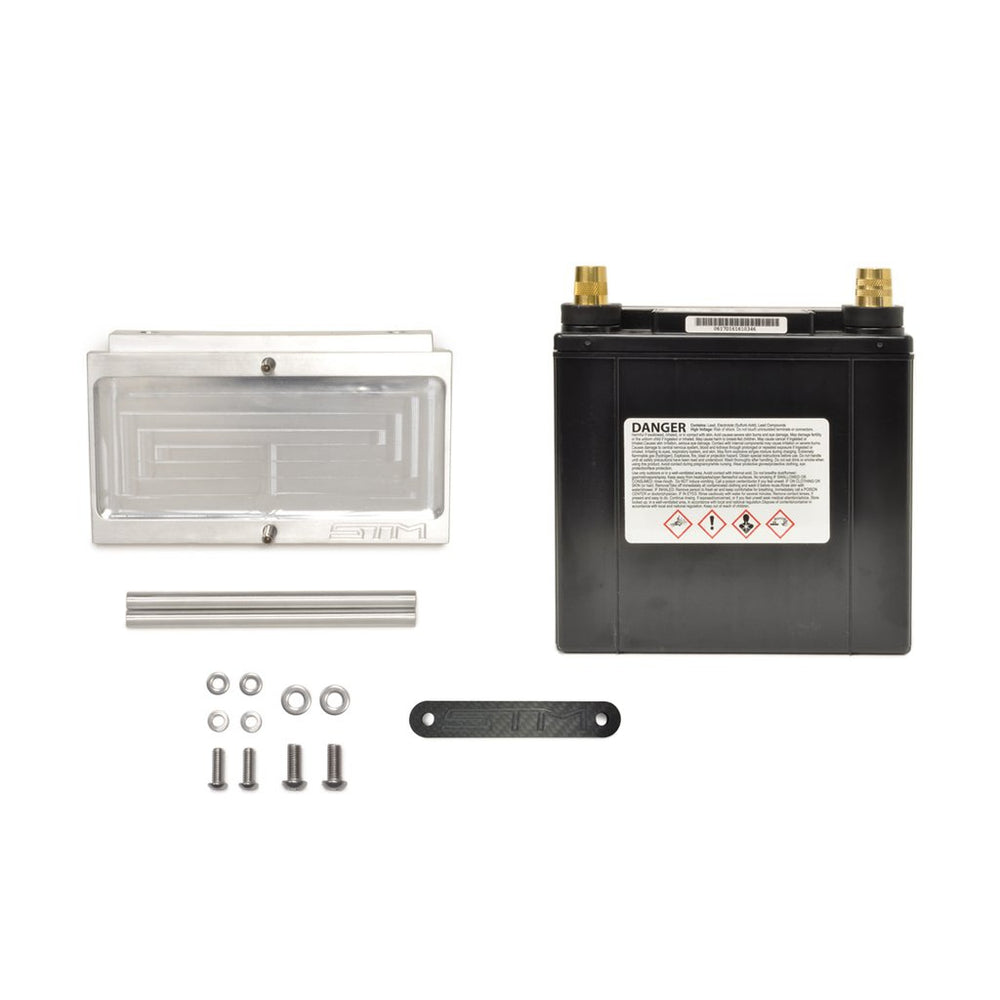

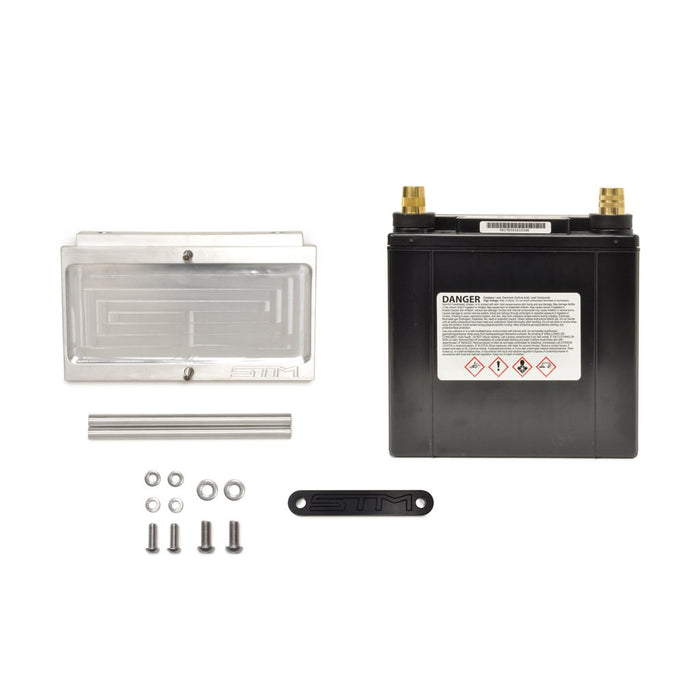

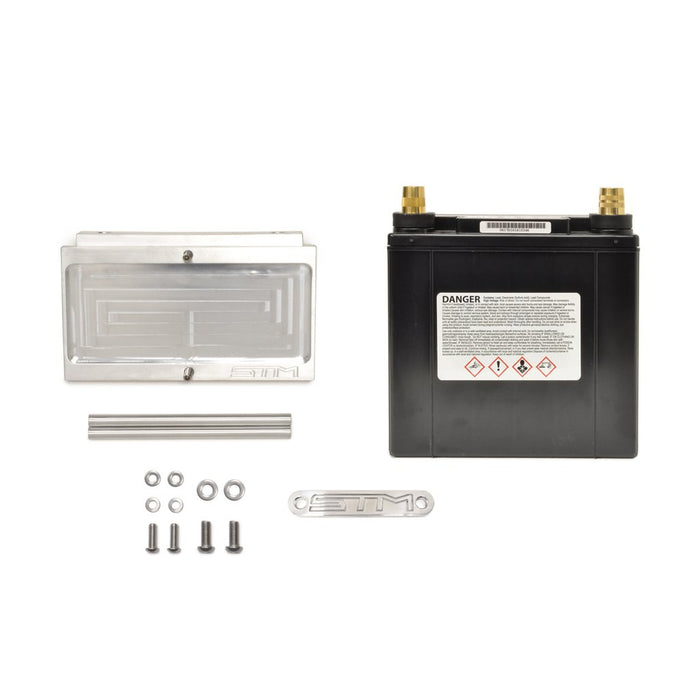

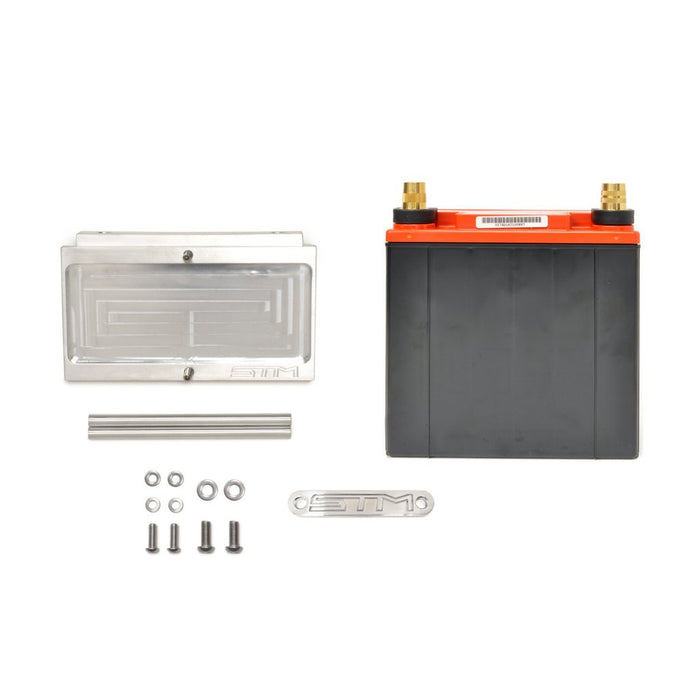

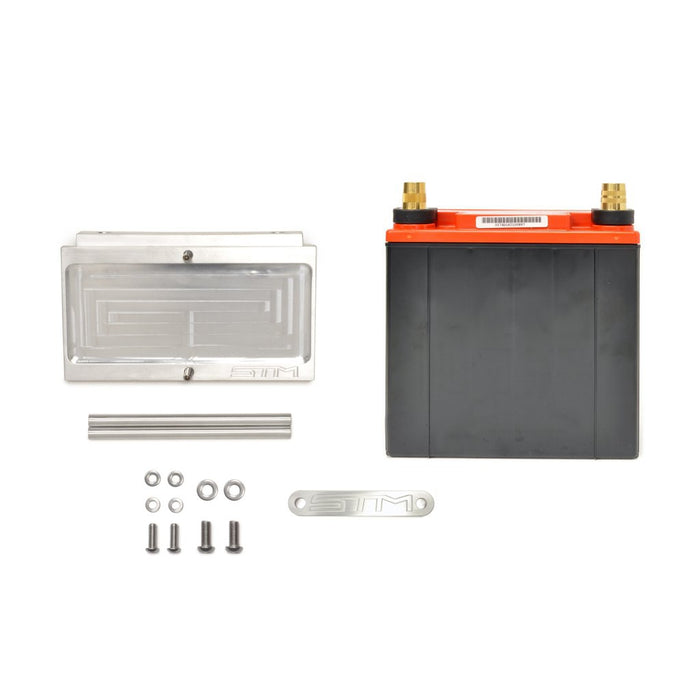

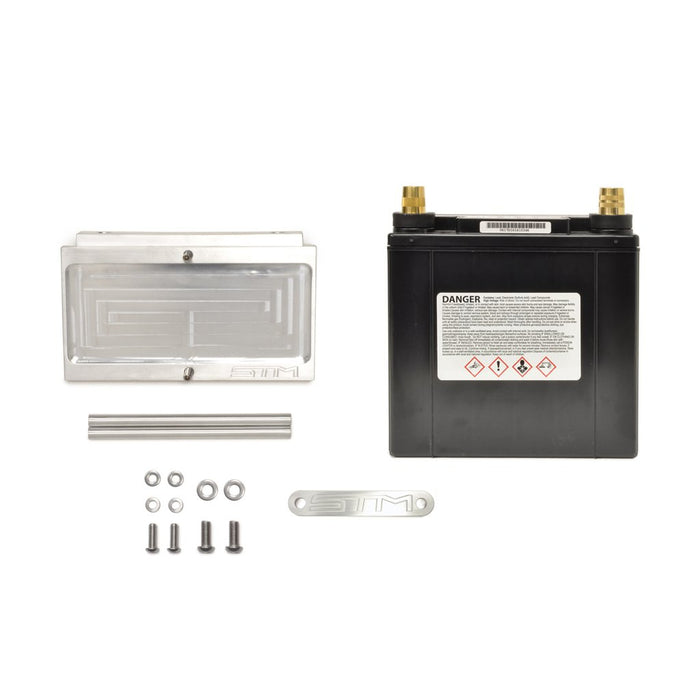

Full Battery Kit Includes:
- STM Aluminum Small Battery Tray and Hardware (Listed below)
- Choice of STM Tie Down
- Choice of Battery
- Battery Terminals (3217-0006)

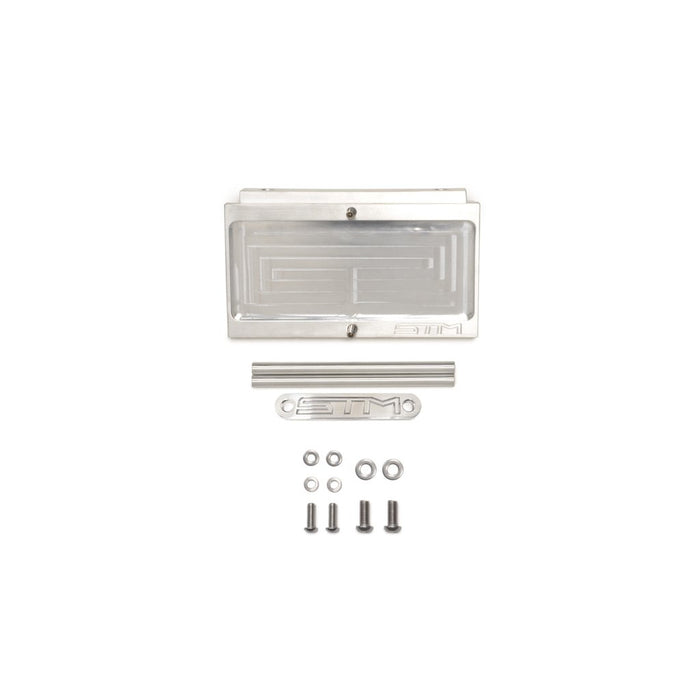

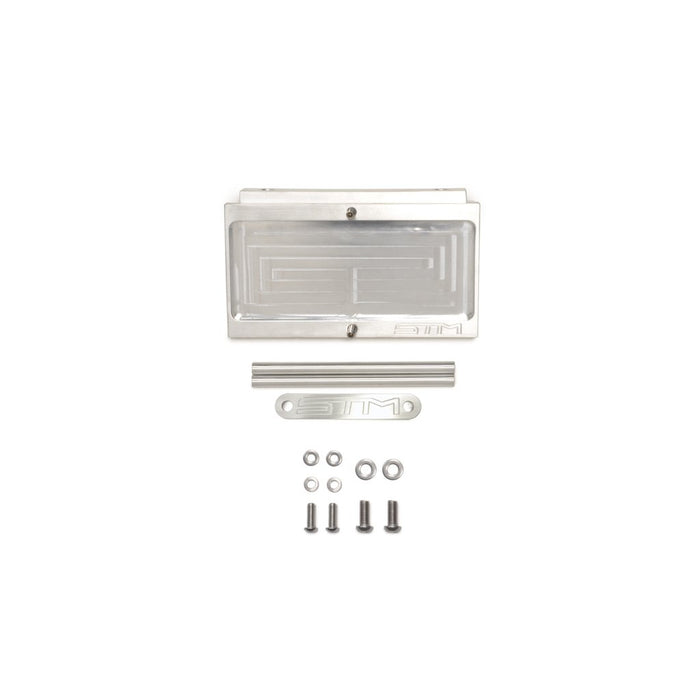

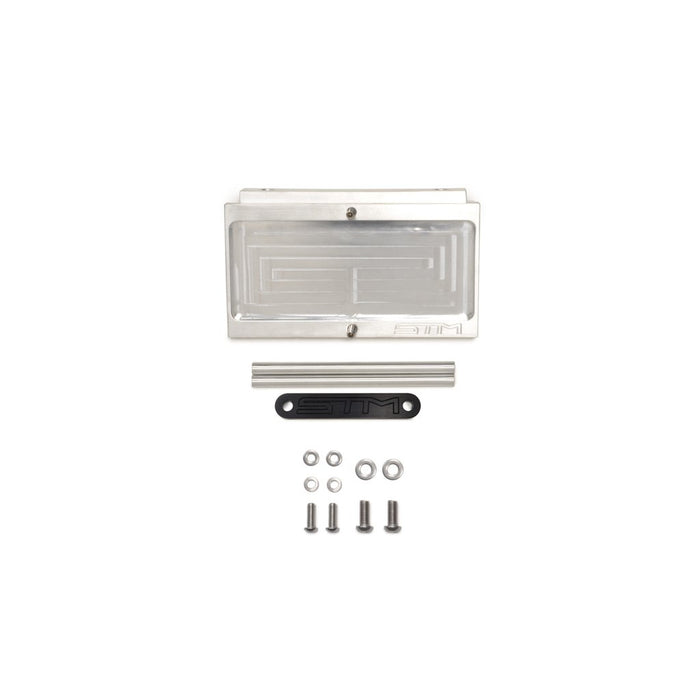

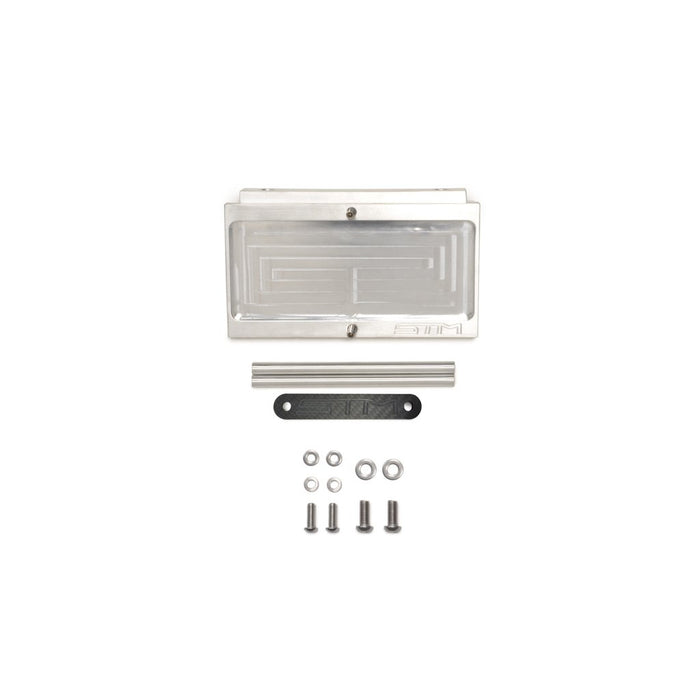

STM Battery Tray Includes:
- (1) STM Battery Tray
- (2) Post Braces
- (2) 1/4x20 Stainless Button Head Bolts
- (2) M6 Stainless Flat Washers
- (2) M6 Stainless Lock Washers
- (2) M8x20 Stainless Button Head Bolts
- (2) M8 Stainless Flat Washers
Vehicle Fitment:
- 1995-1999 2G DSM
- (Eclipse GST/GSX & Talon TSi Turbo)
Install Notes:
Small batteries can fail if the posts are not torqued to 50 inch pounds. Additional torque will cause damage to your battery, so please be careful when installing.
Performance Notes:
While we, and most of the racing community, use these as replacement car batteries, these batteries are not intended for that use.
Warranty:
STM does not warranty batteries. We offer the STM Lifetime Guarantee on the STM Battery Tray, but we cannot warranty the batteries themselves. Please contact the manufacturer with any performance concerns.
STM 2G DSM Small Battery Kits:
| Stock Battery Weight: 42 pounds | ||
| STM Kit & Battery Specs | Full Kit Weight | |
Odyssey PC680 Battery:
| Pulse (5-second) Hot Cranking Amps (PHCA): 520 | 15.70 pounds (Save 26.30 pounds vs stock) |
| Cold Cranking Amps (CCA): 170 | |
| 20Hr Nominal Capacity (Ah): 16 | |
| Reserve Capacity Minutes: 24 |
Genesis (16EP) G12V16Ah10EP Battery:
| Voltage: 12 | 14.95 pounds (Save 27.05 pounds vs stock) |
| Capacity: 16Ah @ 10Hr | |
| Terminal Type: M6 Threaded Insert | |
| Chemistry: Thin Plate Pure Lead-Tin | |
| Case Material: Flame Retardant ABS Plastic | |
| Mfg Warranty: 12 Month | |
| Cycle Charge Voltage: 14.7V to 15.0V at 77°F | |
| Standby Charge Voltage: 13.5V to 13.8V at 77°F | |
| Maximum Charge Current: No charge current limits | |
| Shelf Life w/o Charge: 2 years | |
| Operating Temperature: -40°F to 113°F | |
| Expected Trickle Life (@ 25°C): 10 years | |
| Capacity Range: 16-20Ah (~80-90wpc) |
