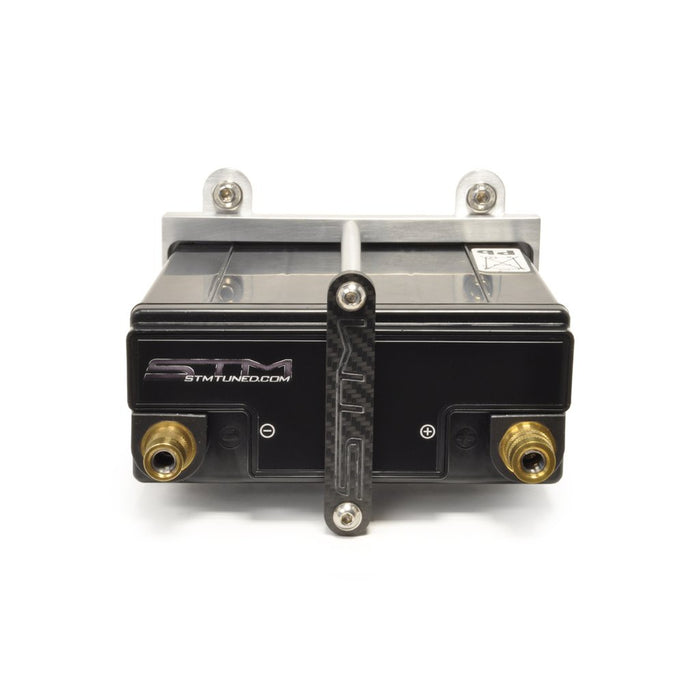

STM Tuned Small Battery Kit for R35 GTR
Buy now pay later,no extra cost!
Payments from $44.27 with

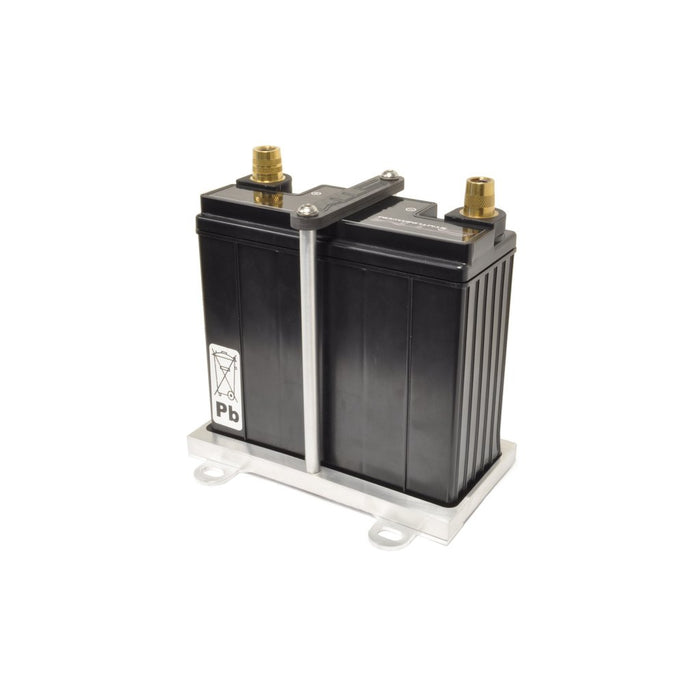

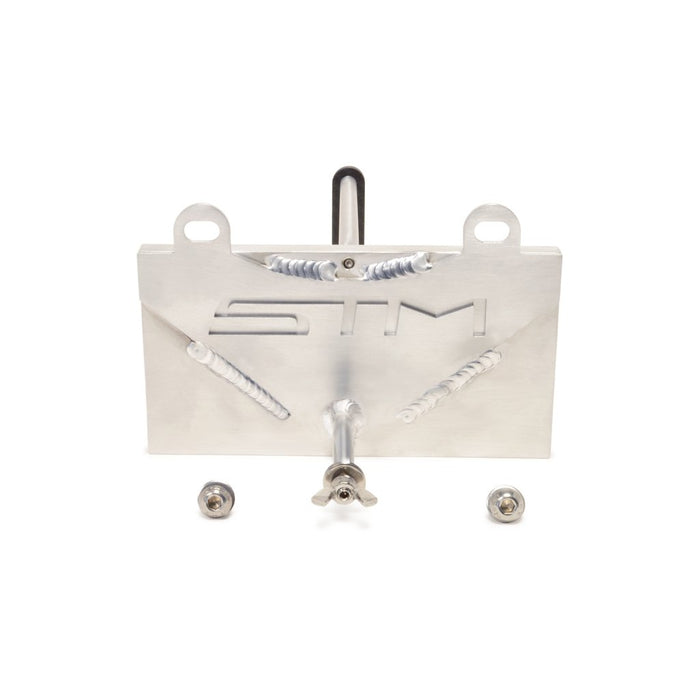

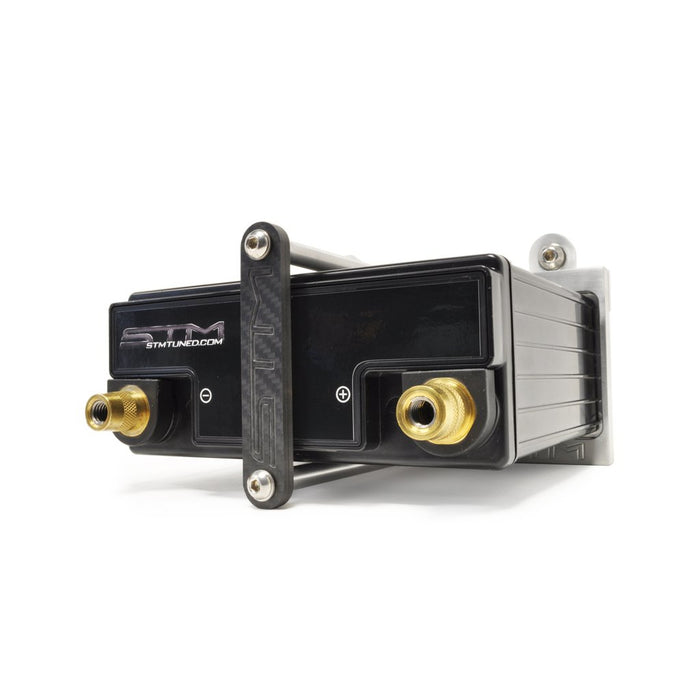

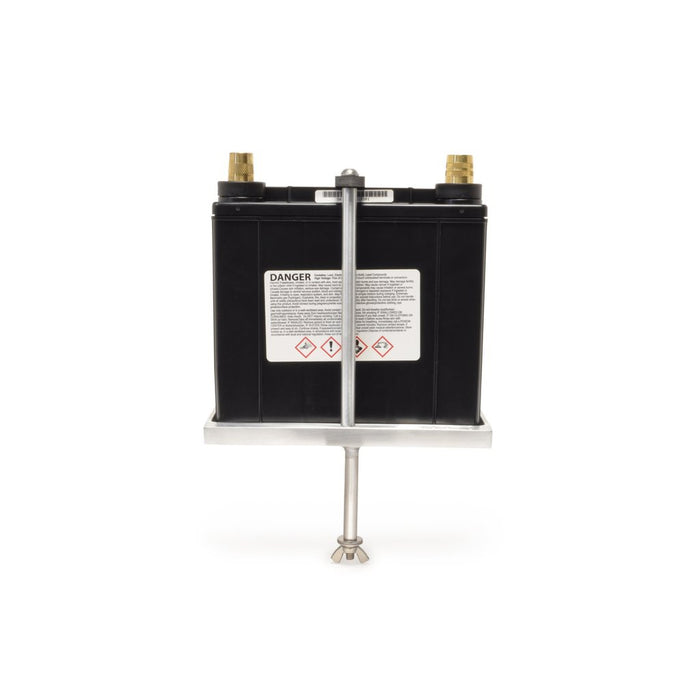

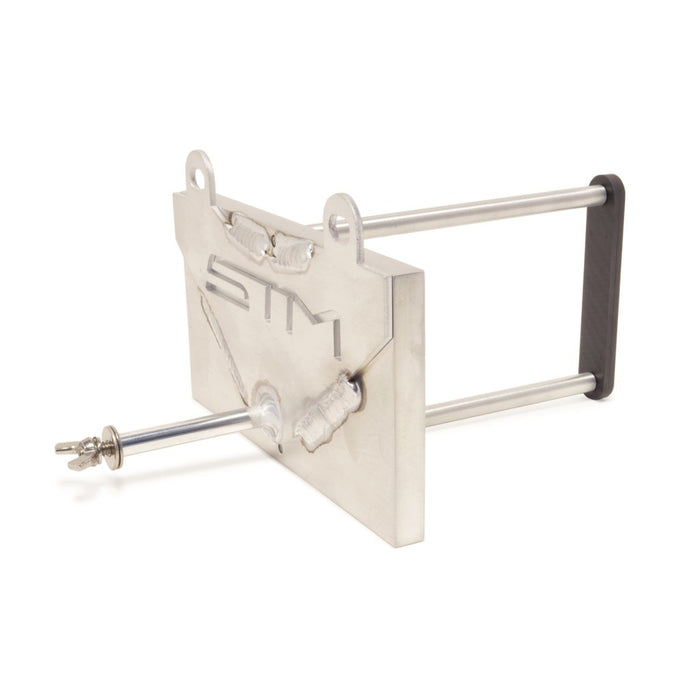

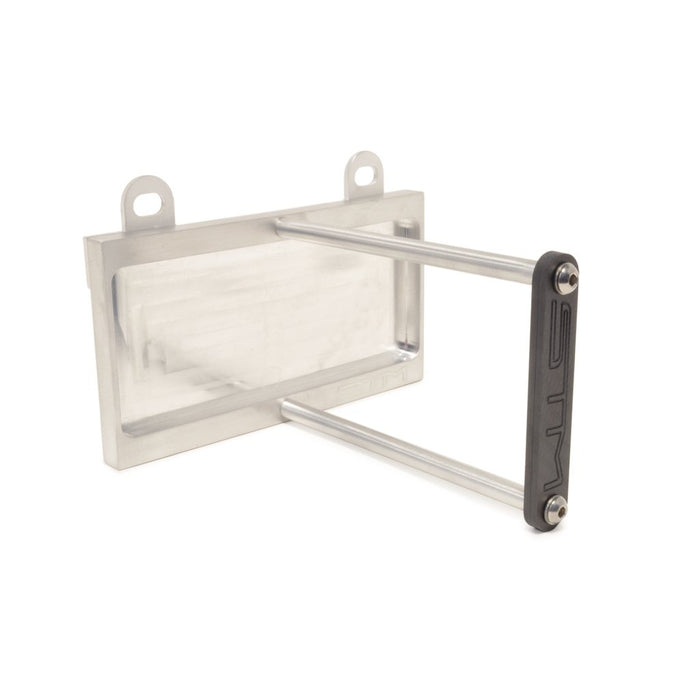

The STM Small Battery Kit is an essential upgrade, allowing you to shed the weight of the heavy, factory battery and clean up the engine bay. Bolts to existing mounting points on the R35 for a clean install and includes a super lightweight, CNC machined, aluminum base, then hand-fabricated for the final product. Stainless mounting hardware is included along with the solid carbon fiber STM Tie Down.
Features:
- Billet Aluminum Base
- Tig-Welded Aluminum
- CNC Engraved Plates

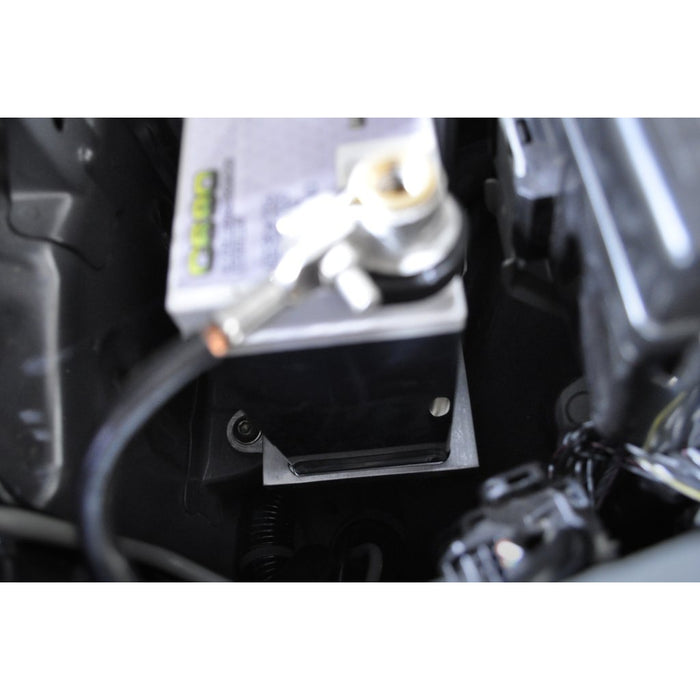

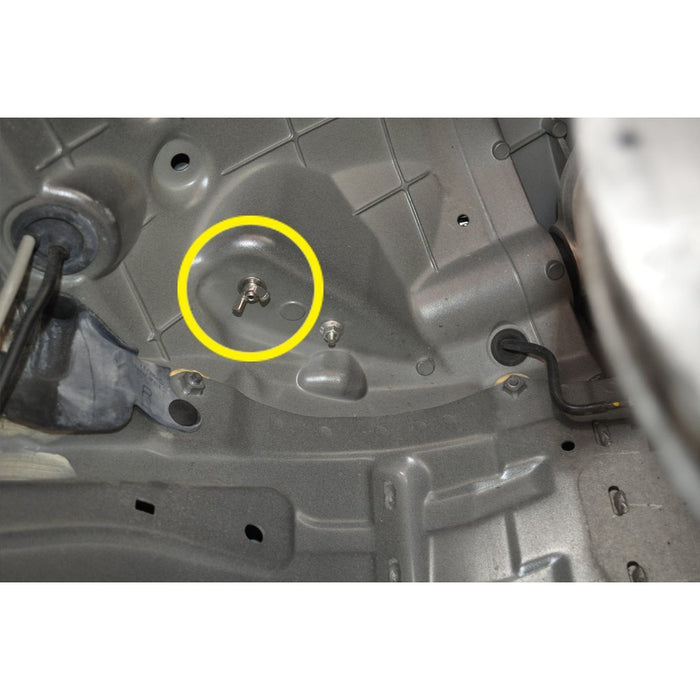

- Utilizes Existing Bolt Holes for Mounting
- Solid Carbon Fiber Tie Down Plate
- Stainless Hardware
- Made in the USA!
Vehicle Fitment:
2009-2021 Nissan R35 GT-R
Weights:
- Stock Battery with Factory Tray: 28.90 pounds
- Stock Battery: 27.2 pounds
- Stock Battery Tray: 1.70 pounds
- STM Tray: 1.15 pounds
- Odyssey PC680 Kit: 15.70 pounds (Save 13.20)
- Genesis 16EP Kit: 14.95 pounds (Save 13.95)

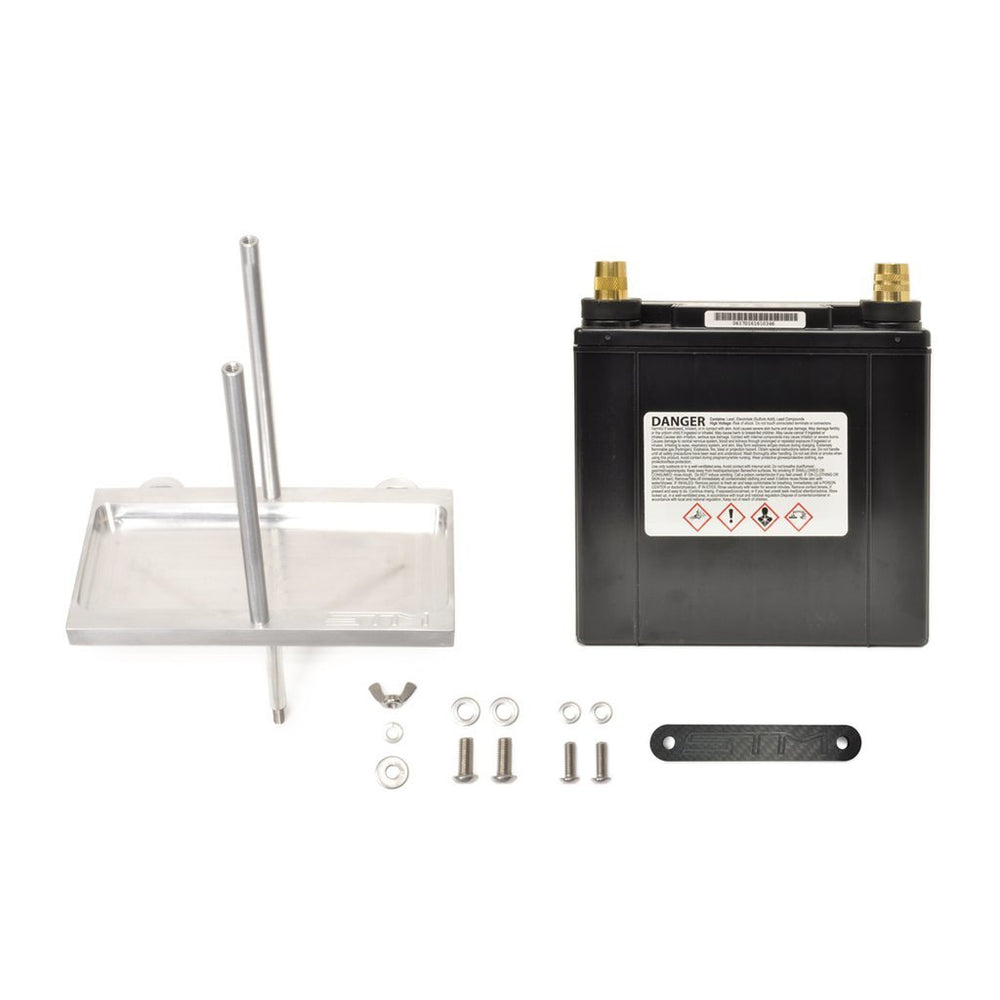

Full Battery Kit Includes:
- STM Aluminum Small Battery Tray and Hardware (Listed below)
- Solid STM Carbon Fiber Tie Down
- Choice of Battery
- Battery Terminals (3217-0006)

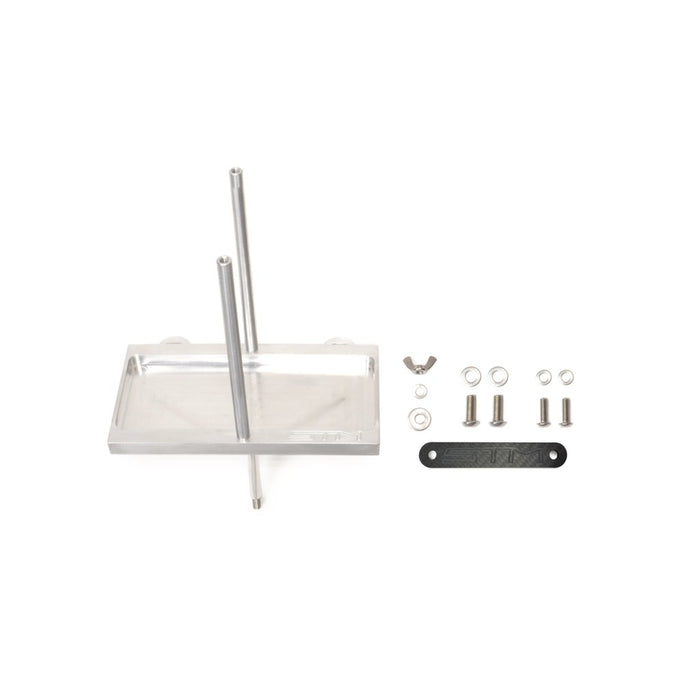

STM Battery Tray Includes:
- (1) STM Battery Tray
- (2) Post Braces
- (1) STM Carbon Fiber Tie Down
- (1) Stainless 1/4x20 Wing Nut
- (3) M6 Stainless Lock Washer
- (2) M6 Stainless Fender Washers
- (2) M8x20 Stainless Bolts
- (2) M8 Stainless Flat Washers
- (2) 1/4x20 Stainless Bolts
- (2) M6 Stainless Flat Washers
Install Notes:
Small batteries can fail if the posts are not torqued to 50 inch pounds. Additional torque will cause damage to your battery, so please be careful when installing.
Performance Notes:
While we, and most of the racing community, use these as replacement car batteries, these batteries are not intended for that use.
Warranty:
STM does not warranty batteries. We offer the STM Lifetime Guarantee on the STM Battery Tray, but we cannot warranty the batteries themselves. Please contact the manufacturer with any performance concerns.
STM R35 GT-R Small Battery Kits:
| Stock Battery with Factory Tray: 28.90 pounds | ||
| Stock Battery: 27.2 pounds | ||
| Stock Battery Tray: 1.70 pounds | ||
| STM Tray: 1.15 pounds | ||
| Battery Specs | Full Kit Weight (with Hardware & Terminals) | |

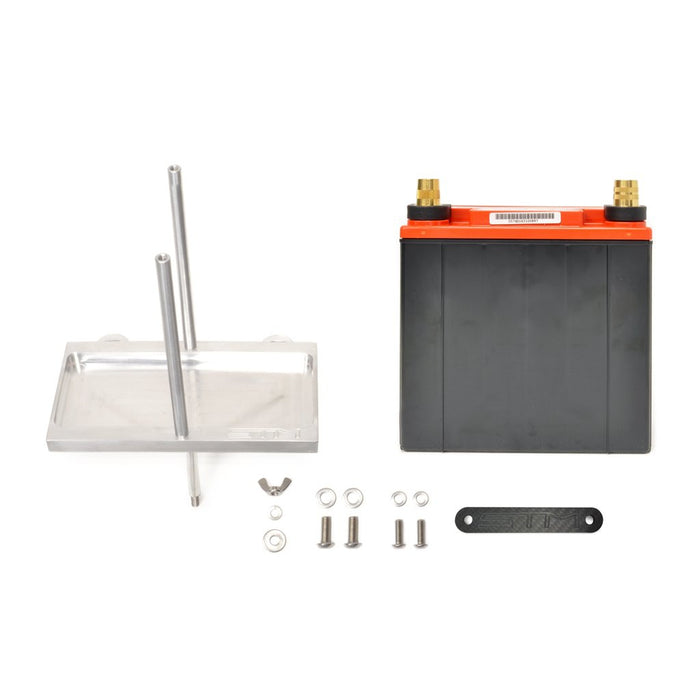

Odyssey PC680 Battery:
| Pulse (5-second) Hot Cranking Amps (PHCA): 520 | 15.70 pounds (Save 13.20 pounds vs stock) |
| Cold Cranking Amps (CCA): 170 | |
| 20Hr Nominal Capacity (Ah): 16 | |
| Reserve Capacity Minutes: 24 |

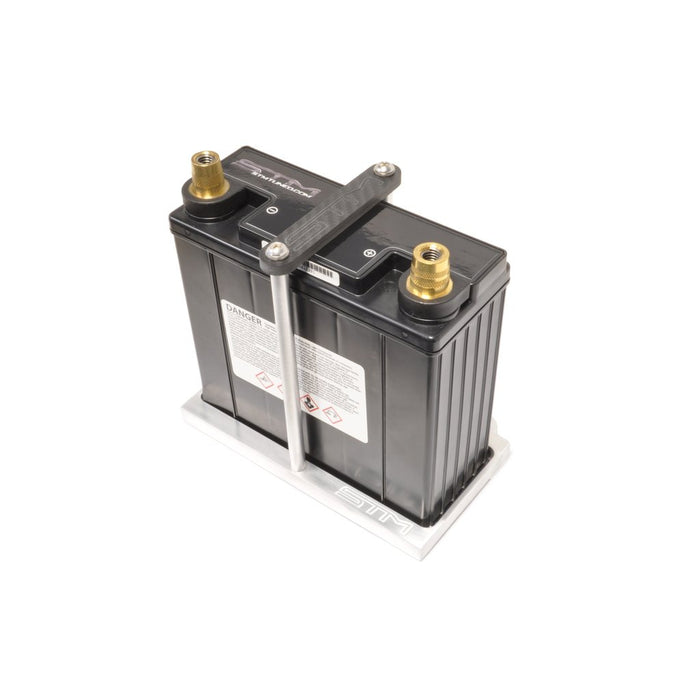

Genesis (16EP) G12V16Ah10EP Battery:
| Voltage: 12 | 14.95 pounds (Save 13.95 pounds vs stock) |
| Capacity: 16Ah @ 10Hr | |
| Terminal Type: M6 Threaded Insert | |
| Chemistry: Thin Plate Pure Lead-Tin | |
| Case Material: Flame Retardant ABS Plastic | |
| Mfg Warranty: 12 Month | |
| Cycle Charge Voltage: 14.7V to 15.0V at 77°F | |
| Standby Charge Voltage: 13.5V to 13.8V at 77°F | |
| Maximum Charge Current: No charge current limits | |
| Shelf Life w/o Charge: 2 years | |
| Operating Temperature: -40°F to 113°F | |
| Expected Trickle Life (@ 25°C): 10 years | |
| Capacity Range: 16-20Ah (~80-90wpc) |
