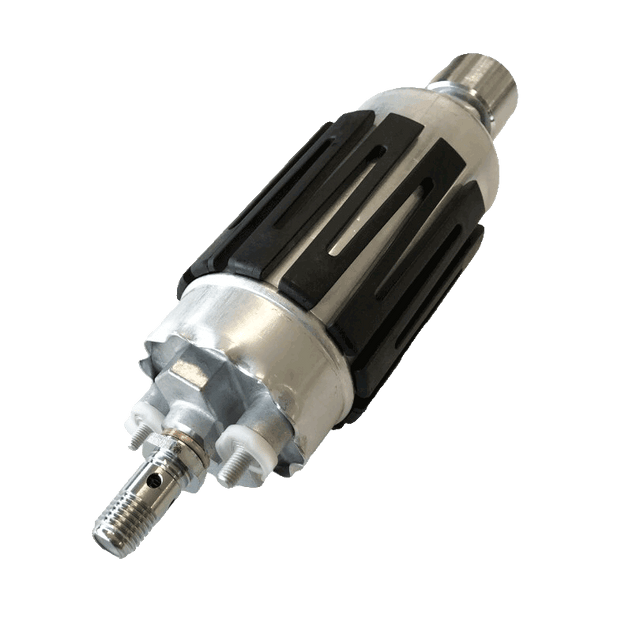

Bosch 200 External High Flow Fuel Pump Kit - replaces the 044
Buy now pay later,no extra cost!
Payments from $30.40 with
Bosch 275l/h @5bar In-line fuel pump.
This fuel pump kit is the replacement for the Bosch 044 (was Bosch part number 0 580 254 044). With improved design and high quality material, the expected service life is 2.5x the 044 pump.
- It is capable of providing 275l/h @ 5bar
- Flows ~10% higher than 044 at 7bar -do not exceed 7-bar fuel pressure
- Weighs 15% less than 044 at 860g
- Draws 14amps (±1A) with 5 bar fuel rail pressure and 15amps (±1A) at 8bar
- M18x1.5 inlet fitting and M12x1.5 outlet fitting
- External non return valve - pressure relief valve 8-10bar
- Not suitable for voltage regulation (variable speed control)
- Compatible with gasoline and diesel
- Operating Voltage: 6 - 15V
This pump is designed to be used as an external pump, not intank. We recommend you look at the range of TI Automotive (was Walbro) pumps for a pump that is is designed to be used inside a fuel tank.
The pump in the kit is Bosch part number 0 580 464 150. The 200 part number refers to the Bosch kit.
Please check the drawing below and notes below if you are replacing an existing 044 fuel pump.
- the diameter of the pump is smaller without the noise suppressing sleeve and the sleeve does not go the full length of the pump
- the outlet thread in the end of the 200 pump is M10 x 1.0 while on the 044 it was M12 x 1.5
DIMENSIONS
The Bosch 200 kit supersedes the Bosch 044 one of the most popular aftermarket fuel pumps and is sometimes referred to as the "Bosch Motorsport Fuel Pump".
