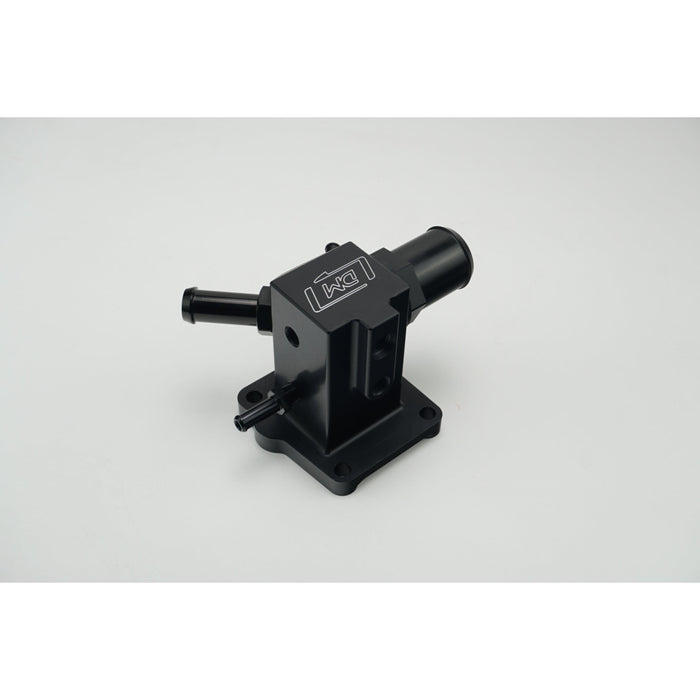

Damond Motorsports Mazdaspeed Water Outlet Manifold
Buy now pay later,no extra cost!
Payments from $58.50 with

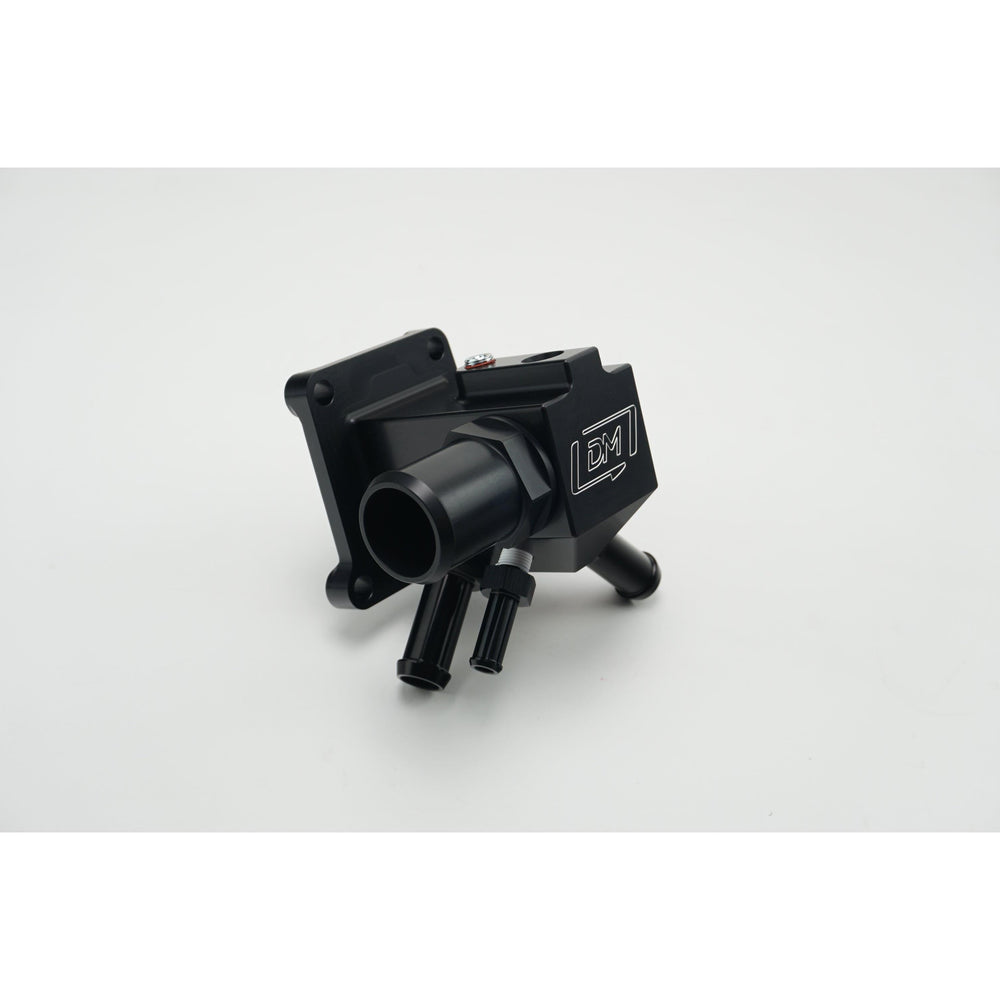

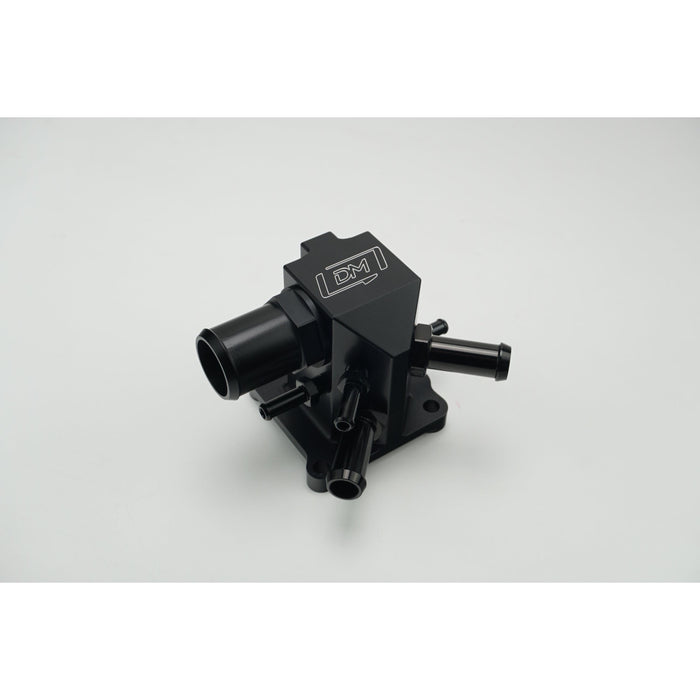

The Damond Motorsports Mazdaspeed Water Outlet Manifold is the perfect addition for serious racers and those wanting to clean up their engine bay. Machined out of 6061 aluminum and anodized black, this billet piece takes up a considerably less space compared to the original equipment cast piece. Our Water Outlet Manifold also features additional ports for adding in sensors of your choosing, and allows you to plug ports you don't need in racing applications, such as the heater core and thermostat bypass. Fittings and plugs are available to configure this manifold for your needs.
Key features:
- Custom machined factory sized radiator hose o-ring boss fitting (ORB for short).
- ORB to hose barb fittings for the thermostat bypass hose and heater core hose
- OE sensor port.
- 2 x Additional 1/8" NPT sensor ports (3 for the Mazdaspeed6 and CX-7). Ideal for adding in both coolant temperature and coolant pressure sensors.

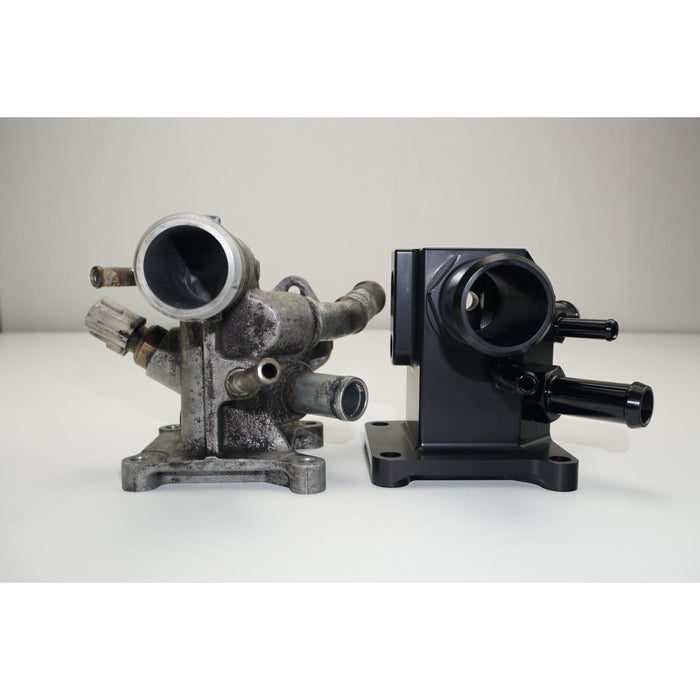

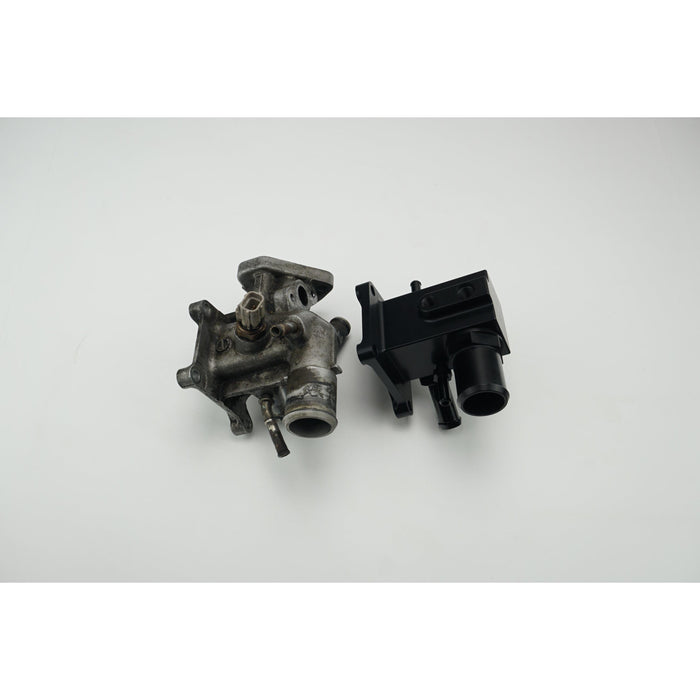

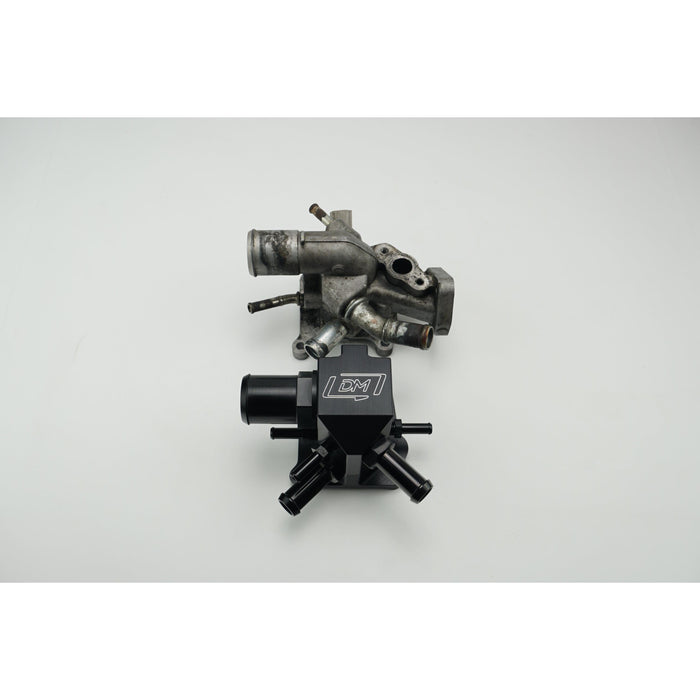

- Much more compact and sleek compered to the original cast water outlet, as well as lighter.

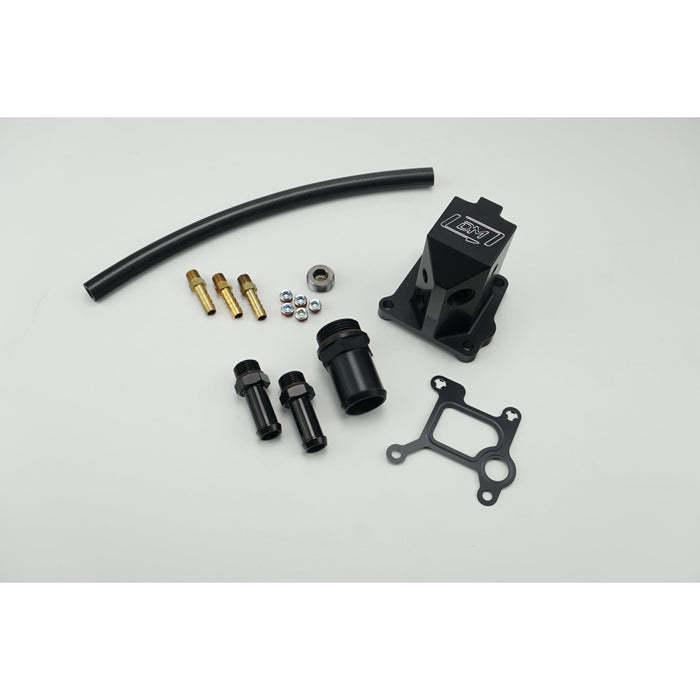

Parts included:
- 1 x Water Outlet Manifold
- 1 x ORB Radiator Hose Fitting
- 2 x ORB Boss Hose Barb Fittings

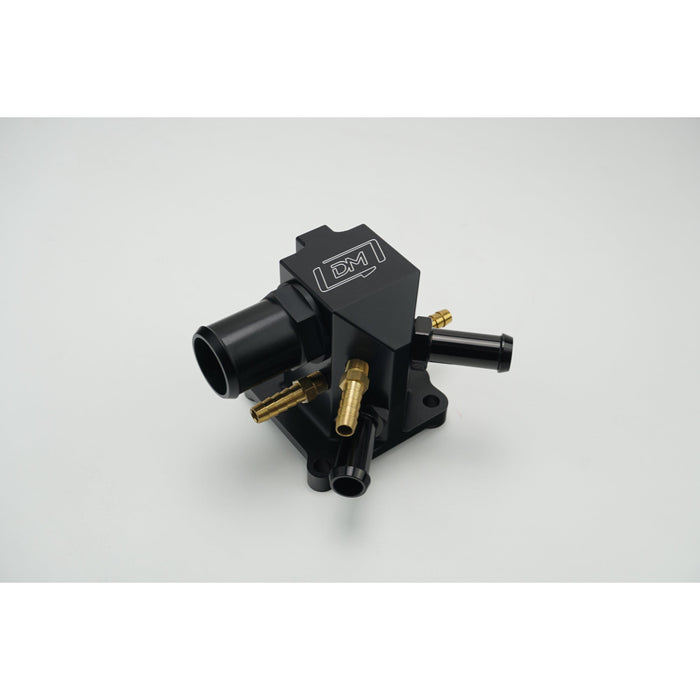

- 3 x Brass Hose Barb to NPT Fittings (unless aluminum option is selected)
- 5 x NPT Plugs
- 1 x Turbo Coolant Hose
- 1 x Plug for Intake Manifold EGR Tube Port
- 1 x Factory OEM Mazda Gasket

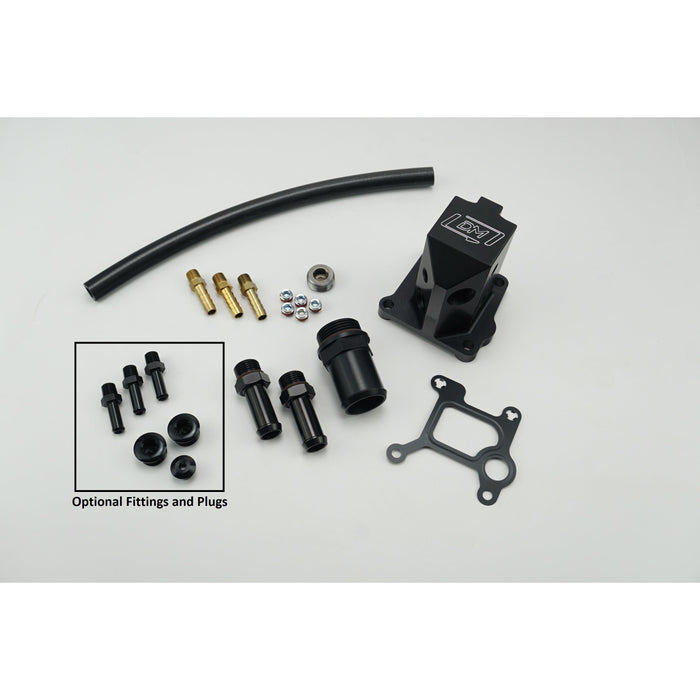

Optional Parts:
- 3 x Aluminum Hose Barb to NPT Fittings
- 2 x ORB Plugs (if deleting the thermostat bypass and/or heater core)
- 1 x OE Sensor Port Plug
Please note: This part is for offroad use only. This does not feature a provision for the EGR valve or tube, thus omitting the EGR system.
