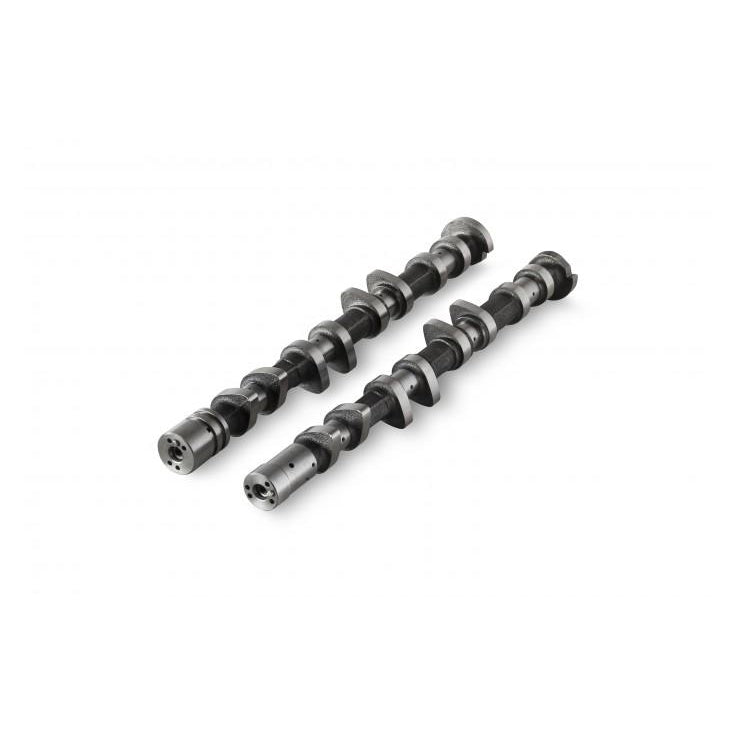

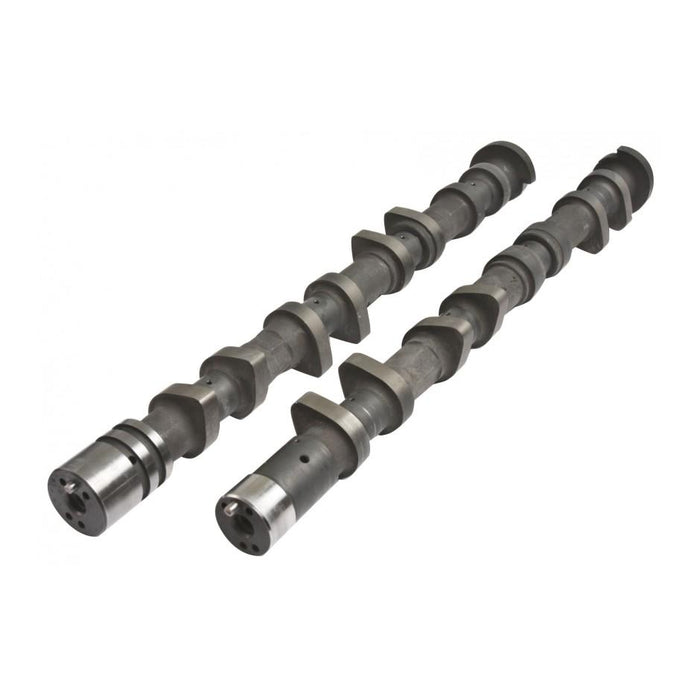

Kelford Cams 214-A Mitsubishi EVO X Cams
Buy now pay later,no extra cost!
Payments from $99.11 with
Note: Please check availability with us before ordering.
264/252 Degrees advertised duration, 10.00mm/9.30mm lift.
Additional Information:
These stage 1 high performance camshafts can run with the stock valve spring at stock RPM limit, or use our spring to run up to 32lb boost and 9000 RPM.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | ||||
MITSUBISHI | EVO X | 214-A | ||||
Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM |
Exhaust: | 0.35mm | Set | COLD | at the | CAM | |
Cam Lift: | Intake: | 10.30mm | Exhaust: | 9.65mm | ||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 9.30mm | ||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 252 | |
Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 212 | |
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | |||
IVC: | EVC: | |||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | VARI | ||
Lift @ TDC | Intake: | Exhaust: |
