READ BELOW TO GET A BETTER UNDERSTANDING OF WHAT HEADGASKET YOU NEED

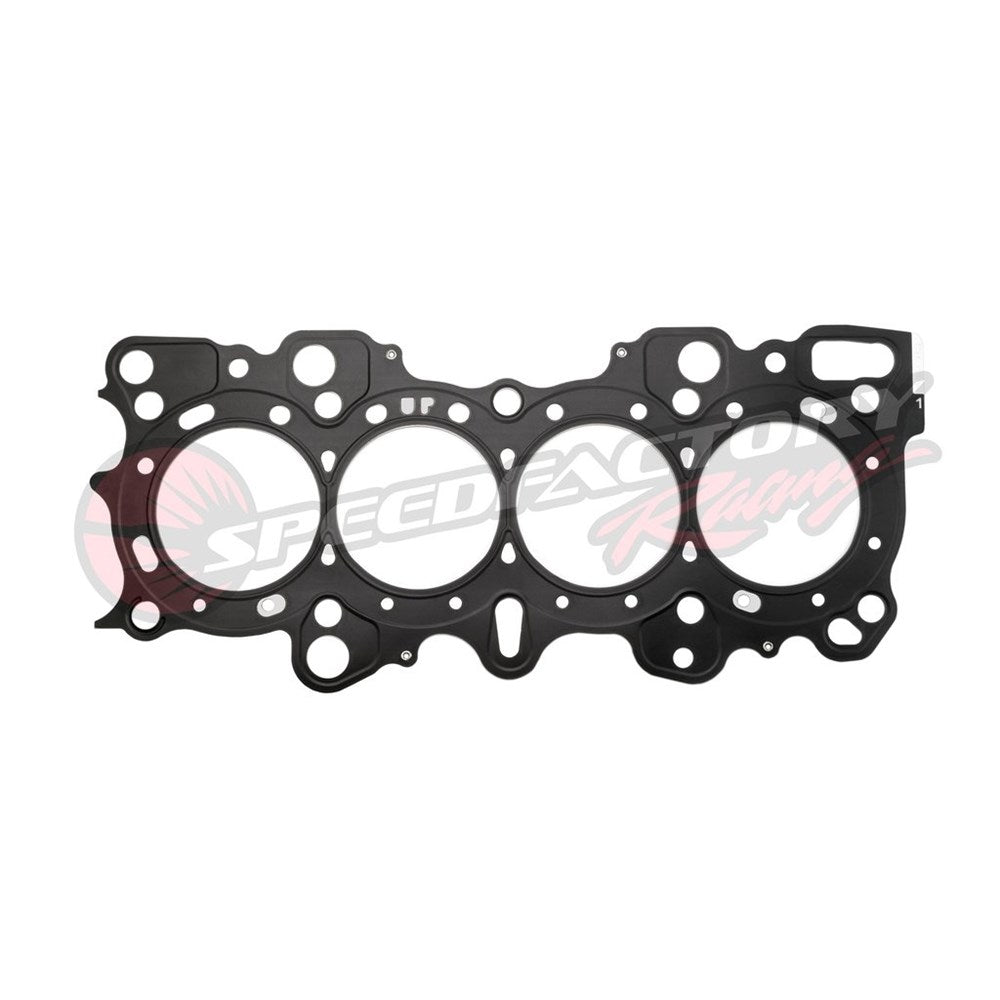

SpeedFactory High Performance MLSS-HP Head Gaskets for Honda/Acura B-Series VTEC Engines, Including LS-VTEC & B20-VTEC
These MLS gaskets have been purpose-built to provide an excellent seal on high compression / nitrous / turbocharged engines, and when used in combination with our Extreme Duty L19 Head Stud Kit have been real world tested to 1000hp with excellent results.
Our gasket utilizes a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. The 0.040” thickness makes up for cylinder head and block surfacing vs the OEM 0.028” thickness and we've also incorporated a unique internal silicone bead on the oiling passages for improved sealing.
Another unique feature is enlarged head stud holes for compatibility with 1/2” head studs (the 2 locating dowel holes remain OEM sized and are the only holes that need to be modified if running 1/2" head studs, greatly reducing the time & effort required during engine assembly). We have been reliably running these gaskets on wet deck Bullet Billet blocks which utilize 1/2" head studs at 1400+whp.
**B20-Vtec requires 84mm or Larger Head Gasket
FITMENT:
Honda/Acura B16A B18C VTEC engines
LS-VTEC & B20-VTEC **Must Use VTEC Conversion Stepped Dowel Pins
Available Sizes:
- 81.50mm (Use for 81.00-81.75mm/3.218” maximum bore)
- 82.00mm (Use for 82.00-82.25mm/3.238” maximum bore)
- 83.00mm (Use for 83.00-83.25mm/3.277” maximum bore)
- 84.00mm (Use for 84.00-84.25mm/3.316” maximum bore)
- 84.50mm (Use for 84.50-84.75mm/3.336” maximum bore)
- 85.00mm (Use for 85.00-85.25mm/3.356” maximum bore)
- 0.040”/1.016mm thickness
FEATURES:
- MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use
- 4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.

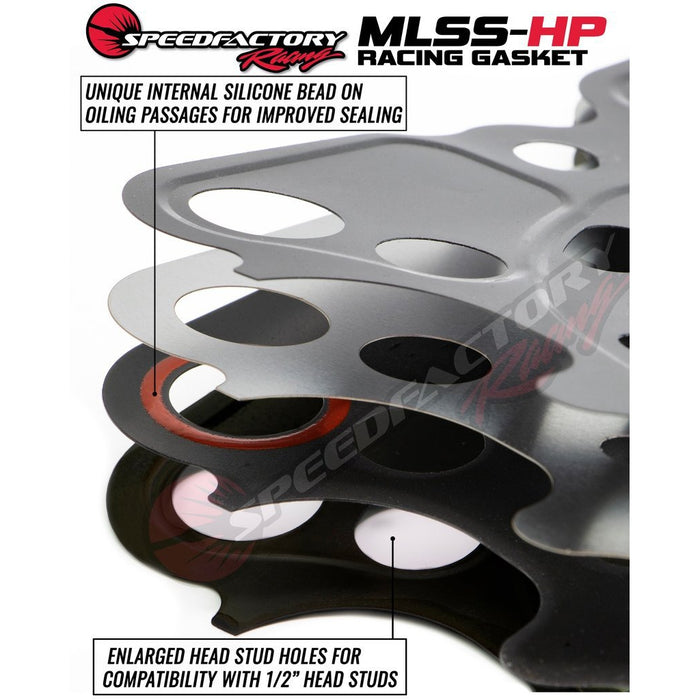

- Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.
- High performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.
- 1/2" head stud compatible.
- OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).
- Note: This is a non-stopper ring type design.
