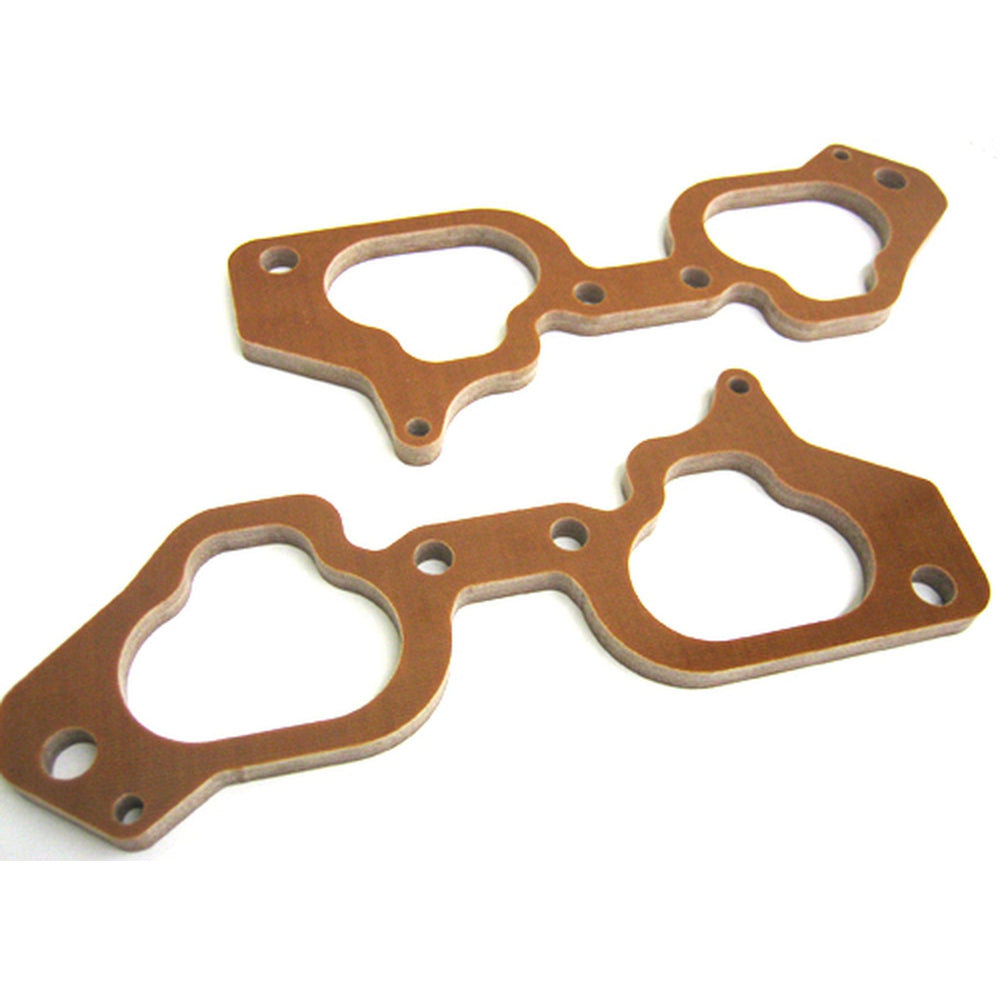

GrimmSpeed Phenolic Thermal Manifold Spacer WRX/STI/FXT/LGT - 8mm
Buy now pay later,no extra cost!
Payments from $12.68 with

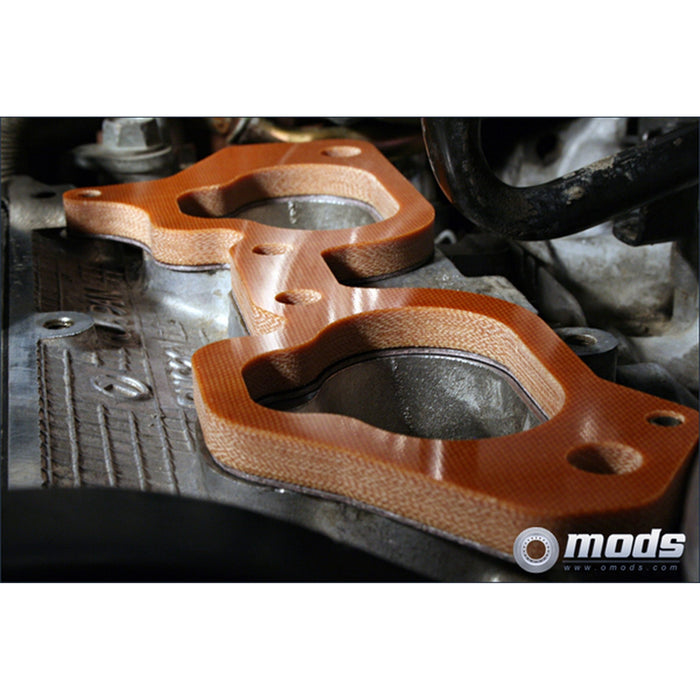

Do you know what your intake manifold sits on?...a superheated boxer engine. If you don't know already, the cooler your intake air is the more HP your car will achieve. We present you the answer to this age old problem, raising the intake manifold off the engine with GrimmSpeed's Phenolic Intake Manifold/TGV to Engine Thermal Spacer.
Phenolic spacers have been used for years by many other specialized automotive companies, but this is new technology to the Subaru world.
What it does:
- Greatly reduces the transfer of heat from engine to intake manifold thus reducing heat soak.
- One-of-a-kind true Phenolic material, not cutting board material like others.
- Cooler and denser intake air, increases the amount of air that can be mixed with fuel thus increasing efficiency.
- For every 5 degree reduction in air temperature, increases power by 1%.
- The cooler and denser the intake air that the engine sucks in, increases the amount of air that can be mixed with fuel thus increasing efficiency.
- Direct bolt-on.
- When running a gasket only, your intake manifold gets very hot to the touch, enough to burn your hand. When our gaskets are paired with our Phenolic Spacers, your hand can be placed on the intake manifold without any issues.
- We do recommend using 2 sets of our gaskets, one on both sides of the spacers.
- USA MADE.
How it works:
- The intake air in your engine travels through the airbox into the turbo, then into the aluminum intake manifold. The air exits the intake manifold and goes directly into the engine.
- While the intake air is within the intake manifold it picks up a lot of heat from the aluminum intake manifold. This added heat reduces air density thus reducing engine power capabilities.
- In stock form your engine has a steel gasket between the intake manifold and engine which allows the heat from the engine to quickly transfer into the intake manifold. By replacing this steel gasket with the GrimmSpeed Phenolic Spacer and gaskets you are greatly reducing the transfer of engine heat into the intake manifold.
- Phenolic Spacers are able to withstand 500+ degrees F. Subaru engines run at the hotter end of operation around 200 degrees F, so the Phenolic Spacer is well within its max running temperature. GrimmSpeed has tested that it is also safe to run race fuel, E85 and methanol with the Phenolic Spacers.
- The Phenolic Spacer will conduct 300-900 times less heat than the oem steel gasket.
Temperature Testing Data: Testing at 1/2 hour intervals. All testing was conducted fairly in Fahrenheit measurements on ONE day at a consistent outside temperature.
Test #1 - OEM measurement from IM without spacers, 152 degrees.
Test #2 - with 3mm phenolic spacers the temp dropped to 134 Degrees
Test #3 - With 8mm phenolic spacers the temp dropped to an outstanding 108 Degrees!!!
That is an OVER 44 Degree drop with the largest Phenolic Spacers!
Applications:
- WRX '02-'14
- STI '02-'20
- Legacy GT 02-'09
- Forester XT '02-'13
