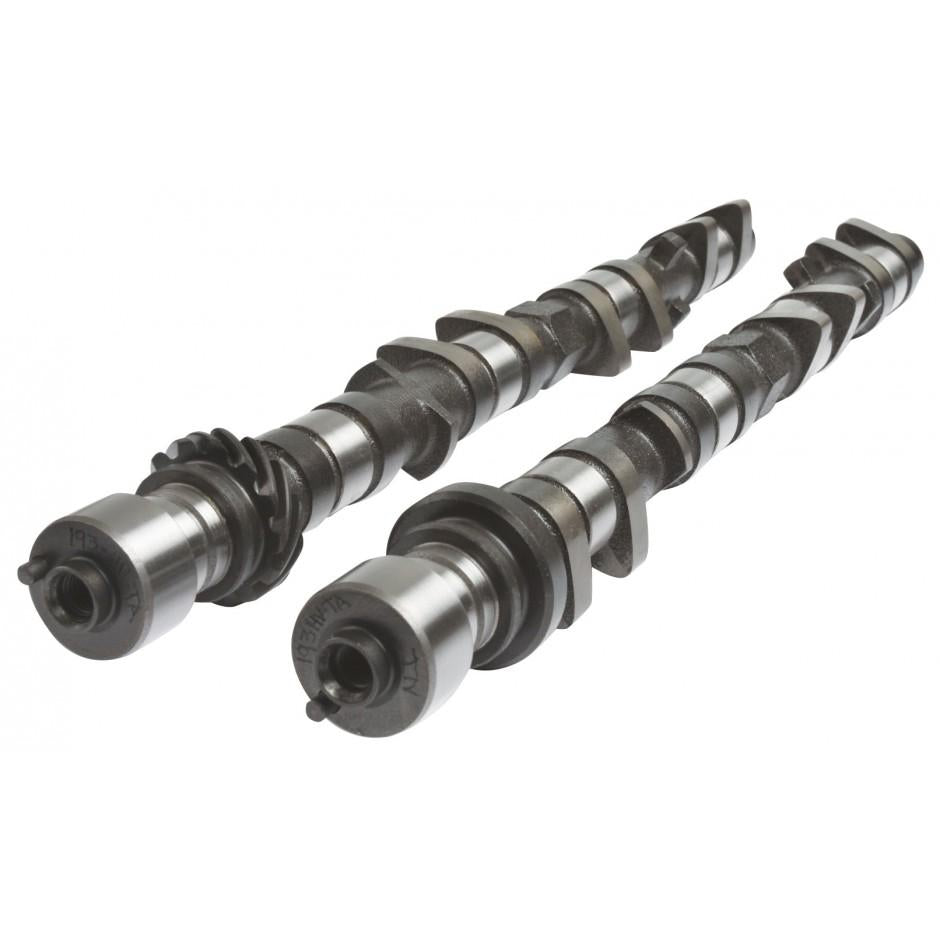

Kelford Cams 193HV-T Toyota 4A-GE 16V (Shim Under Bucket) Turbo Performance Cam

$1,178.66 NZD
SKU KC193HV-T
Buy now pay later,no extra cost!

Payments from $117.86 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/280 Degrees advertised duration. 10.00mm/10.00mm lift.

Additional Information:

Turbo cams for all out drag racing.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v (shim under bucket) 193HV-T
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.40mm Exhaust: 10.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.15mm Exhaust: 10.00mm
Advertised Duration @ 0.30mm Intake: 272 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 58 BBDC
    IVC: 44 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 118
VALVE Lift @ TDC Intake: 1.86mm Exhaust: 1.16
