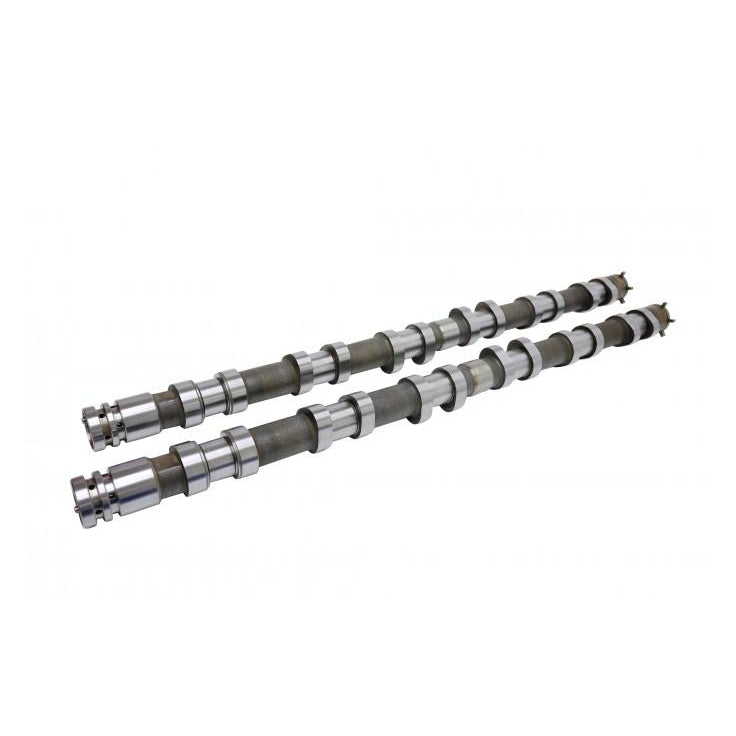

Kelford Cams 218-B Ford BA-FG SIX CYL Performance Cams
Buy now pay later,no extra cost!
Payments from $148.41 with
Note: Please check availability with us before ordering.
280/280 Degrees advertised duration, 11.88mm/11.88mm lift.
Additional Information:
Racing cams to suit well built engines for competition use. Suits turbo sizing and motorsport applications in the 700-1000HP range. Requires our KVS40-K valve spring kit
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | ||||
FORD | BA-FG Barra | 218-B | ||||
Valve Clearance: | Intake: | Set | at the | |||
Exhaust: | Set | at the | ||||
Cam Lift: | Intake: | 5.80mm | Exhaust: | 5.80mm | ||
Rocker Ratio: | Intake: | 2.05 | Exhaust: | 2.05 | ||
Nett Valve Lift: | Intake: | 11.88mm | Exhaust: | 11.88mm | ||
Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 280 | |
Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 236 | |
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | |||
IVC: | EVC: | |||||
Suggested Centre Lines: | Intake: | Vari | Exhaust: | Vari | ||
Lift @ TDC | Intake: | Exhaust: |
