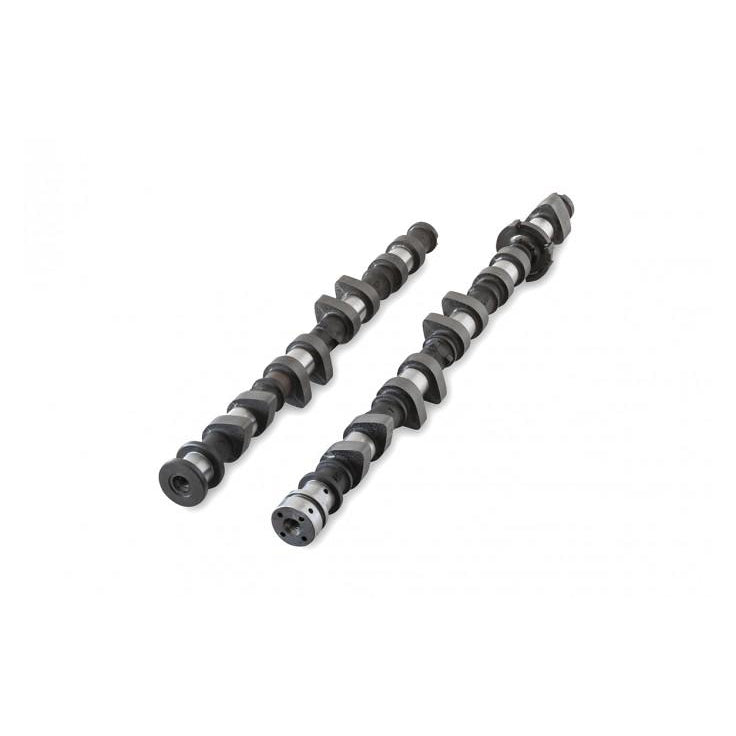

Kelford Cams 247-A Mazda 2.3L Disi Turbo (L3-VDT)
Buy now pay later,no extra cost!
Payments from $114.26 with
Note: Please check availability with us before ordering.
252/252 Degrees advertised duration, 9.50mm/9.50mm lift.
Additional Information:
E-Z power, drop in cams. Can be used with stock springs. Suits mild turbo upgrade.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MAZDA | 2.3 DISI | 247-A | |||||
Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM | |
Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.80mm | Exhaust: | 9.85mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.50mm | Exhaust: | 9.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 252 | Exhaust: | 252 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 212 | Exhaust: | 212 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 18 ATDC | EVO: | 36 BBDC | ||
IVC: | 50 ABDC | EVC: | 4 BTDC | ||||
Suggested Centre Lines: | Intake: | 124 | Exhaust: | 110 | |||
VALVE | Lift @ TDC | Intake: | 0.06mm | Exhaust: | 0.62 |
