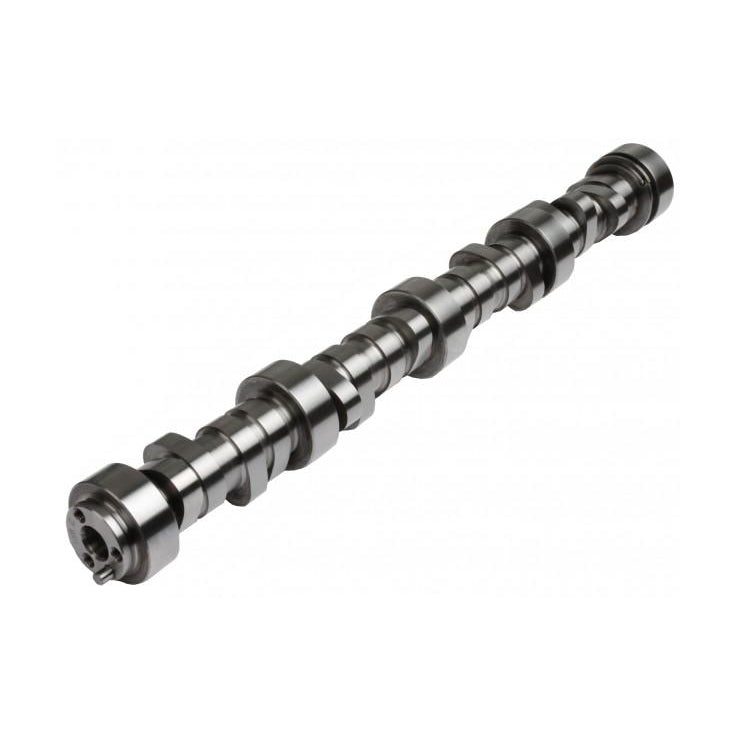

Kelford Cams SS108-A Chevrolet LS Series V8, High Performance Cam
Buy now pay later,no extra cost!
Payments from $76.38 with
Note: Please check availability with us before ordering.
222/226 Degrees duration @ 0.050" cam lift, .575"/.575" lift.
Additional Information
5.7-6.2L Mild performance upgrade cam, fantastic for daily driven cars with auto transmission. Great economy, smooth idle.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
CHEVROLET | LS Series V8 | SS108-A | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 0.338" | Exhaust: | 0.338" | |||
Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
Nett Valve Lift: | Intake: | 0.575" | Exhaust: | 0.575" | |||
Advertised Duration @ | 0.006" | Intake: | 270 | Exhaust: | 276 | ||
Duration @ | .050" CAM LIFT | Intake: | 222 | Exhaust: | 226 | ||
Timing @ | .050" CAM LIFT | IVO: | 1 ATDC | EVO: | 49 BBDC | ||
IVC: | 43 ABDC | EVC: | 3 BTDC | ||||
Suggested Centre Lines: | Intake: | 112 | Exhaust: | 116 | |||
CAM | Lift @ TDC | Intake: | 0.047" | Exhaust: | 0.042" |
