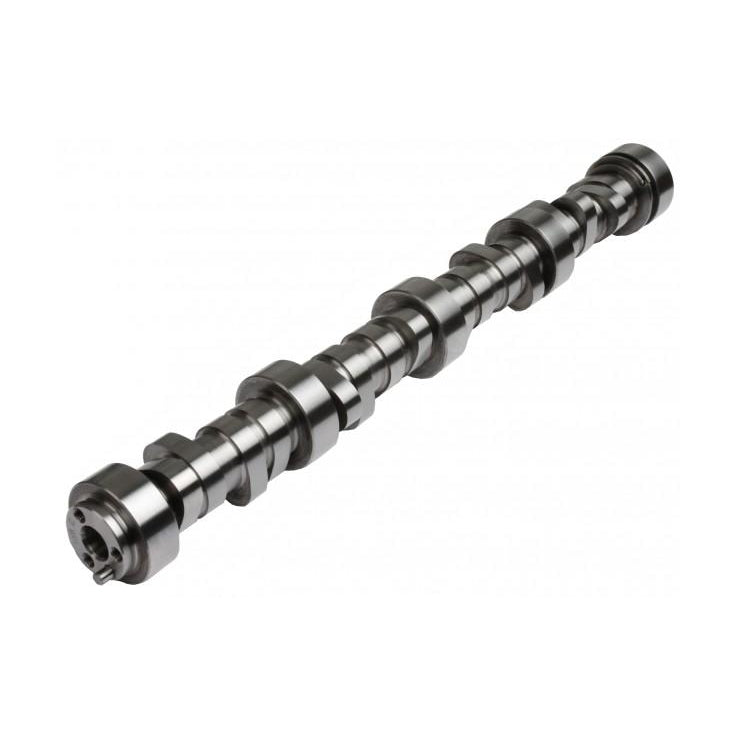

Kelford Cams SS108-B Chevrolet LS Series V8, High Performance Cam
Buy now pay later,no extra cost!
Payments from $76.38 with
Note: Please check availability with us before ordering.
230/236 Degrees duration @ 0.050" cam lift, .600"/.600" lift.
Additional Information:
5.7-6.2L Strong mid-level performance cam for auto or manual transmission. This is the largest cam for LS1 engines using stock pistons and stock head deck height.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
CHEVROLET | LS Series V8 | SS108-B | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 0.353" | Exhaust: | 0.353" | |||
Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
Nett Valve Lift: | Intake: | 0.600" | Exhaust: | 0.600" | |||
Advertised Duration @ | 0.006" | Intake: | 278 | Exhaust: | 286 | ||
Duration @ | .050" CAM LIFT | Intake: | 230 | Exhaust: | 236 | ||
Timing @ | .050" CAM LIFT | IVO: | 4 BTDC | EVO: | 53 BBDC | ||
IVC: | 46 ABDC | EVC: | 3 ATDC | ||||
Suggested Centre Lines: | Intake: | 111 | Exhaust: | 115 | |||
CAM | Lift @ TDC | Intake: | 0.064" | Exhaust: | 0.059" |
