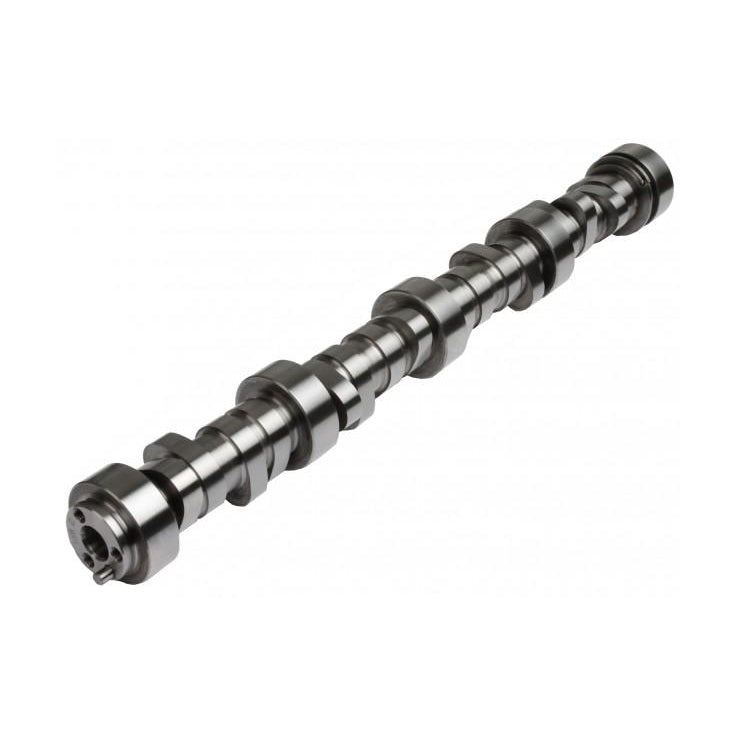

Kelford Cams SS108-J Chevrolet LS Series V8, High Performance Cam
Buy now pay later,no extra cost!
Payments from $76.38 with
226/232 Degrees duration @ 0.050" cam lift, .600"/.600" lift.
Engine Make: | Engine Model: | Part Number: | |||||
CHEVROLET | LS Series V8 | SS108-J | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 0.353" | Exhaust: | 0.353" | |||
Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
Nett Valve Lift: | Intake: | 0.600" | Exhaust: | 0.600" | |||
Advertised Duration @ | 0.006" | Intake: | 274 | Exhaust: | 282 | ||
Duration @ | .050" CAM LIFT | Intake: | 226 | Exhaust: | 232 | ||
Timing @ | .050" CAM LIFT | IVO: | 5 BTDC | EVO: | 48 BBDC | ||
IVC: | 41 ABDC | EVC: | 4 ATDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 112 | |||
CAM | Lift @ TDC | Intake: | 0.069" | Exhaust: | 0.063" |
