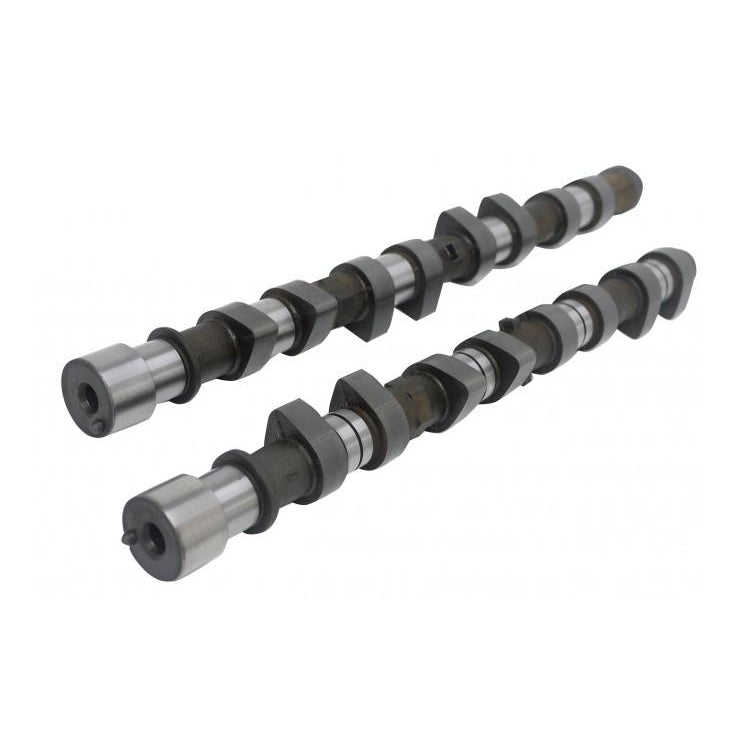

Kelford Cams T203-A Mazda Miata 323 B6 Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $108.67 with
Note: Please check availability with us before ordering.
250/256 Degrees advertised duration, 8.70mm/8.50mm lift.
Additional Information:
Fast street cams to suit stock turbo and stock ECU.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
MAZDA | Miata 323 B6 Turbo | T203-A | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 8.70mm | Exhaust: | 8.50mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 250 | Exhaust: | 256 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 216 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 5 ATDC | EVO: | 40 BBDC | ||
IVC: | 35 ABDC | EVC: | 4 BTDC | ||||
Suggested Centre Lines: | Intake: | 110 | Exhaust: | 112 | |||
VALVE | Lift @ TDC | Intake: | 0.80mm | Exhaust: | 0.56 |
