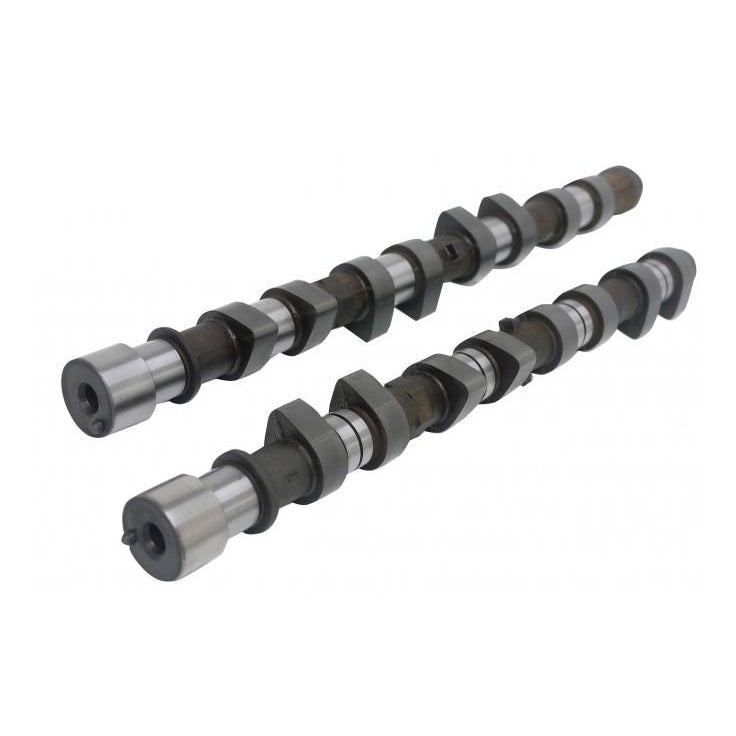

Kelford Cams T203-C Mazda Miata 323 B6 Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $108.67 with
Note: Please check availability with us before ordering.
272/272 Degrees advertised duration, 10.00mm/9.00mm lift.
Additional Information:
Top end performance race cams to suit well modified engines.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
MAZDA | Miata 323 B6 Turbo | T203-C | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 10.00mm | Exhaust: | 9.00mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 9.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 230 | Exhaust: | 230 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 7 BTDC | EVO: | 49 BBDC | ||
IVC: | 43 ABDC | EVC: | 1 ATDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 114 | |||
VALVE | Lift @ TDC | Intake: | 1.84mm | Exhaust: | 1.10 |
