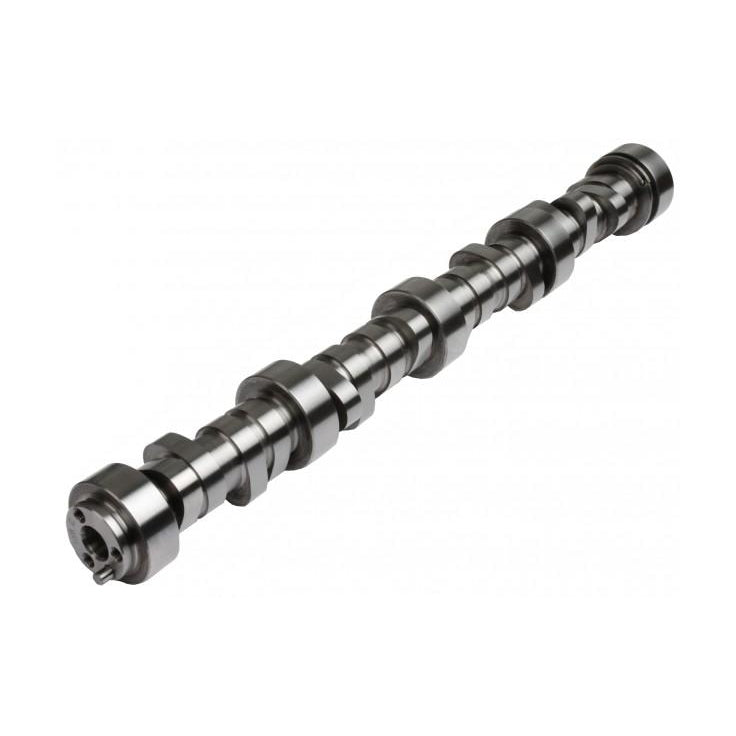

Kelford Cams TS108-P Chevrolet LS Series V8, High Performance Cam
Buy now pay later,no extra cost!
Payments from $76.38 with
Note: Please check availability with us before ordering.
240/246 Degrees duration @ 0.050" cam lift, .630"/.630" lift.
Additional Information:
Suits a professionally built high HP turbocharged LS. Best in large cubic inch drag racing engine. Valve spring will depend on RPM and boost level.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
CHEVROLET | LS Series V8 | TS108-P | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 0.371" | Exhaust: | 0.371" | |||
Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
Nett Valve Lift: | Intake: | 0.630" | Exhaust: | 0.630" | |||
Advertised Duration @ | 0.006" | Intake: | 290 | Exhaust: | 302 | ||
Duration @ | .050" CAM LIFT | Intake: | 240 | Exhaust: | 246 | ||
Timing @ | .050" CAM LIFT | IVO: | 3 BTDC | EVO: | 60 BBDC | ||
IVC: | 57 ABDC | EVC: | 6 ATDC | ||||
Suggested Centre Lines: | Intake: | 117 | Exhaust: | 117 | |||
CAM | Lift @ TDC | Intake: | 0.066" | Exhaust: | 0.067" |
