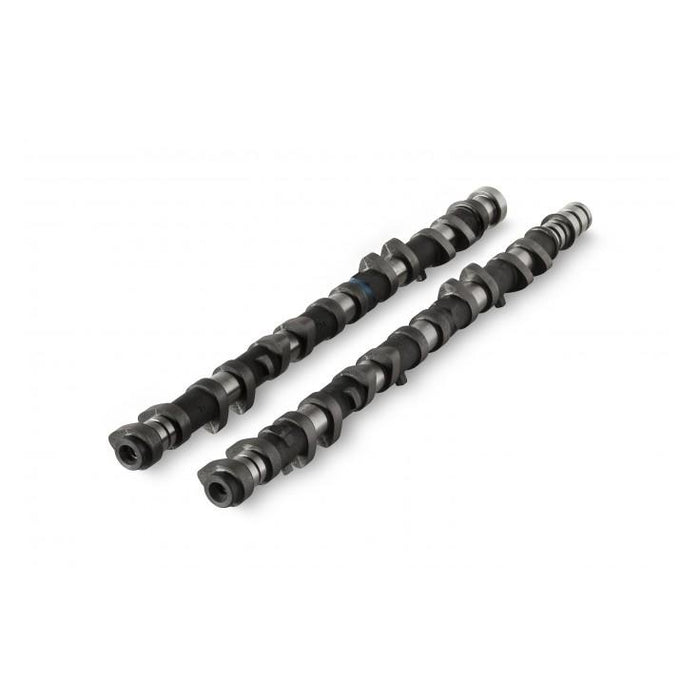

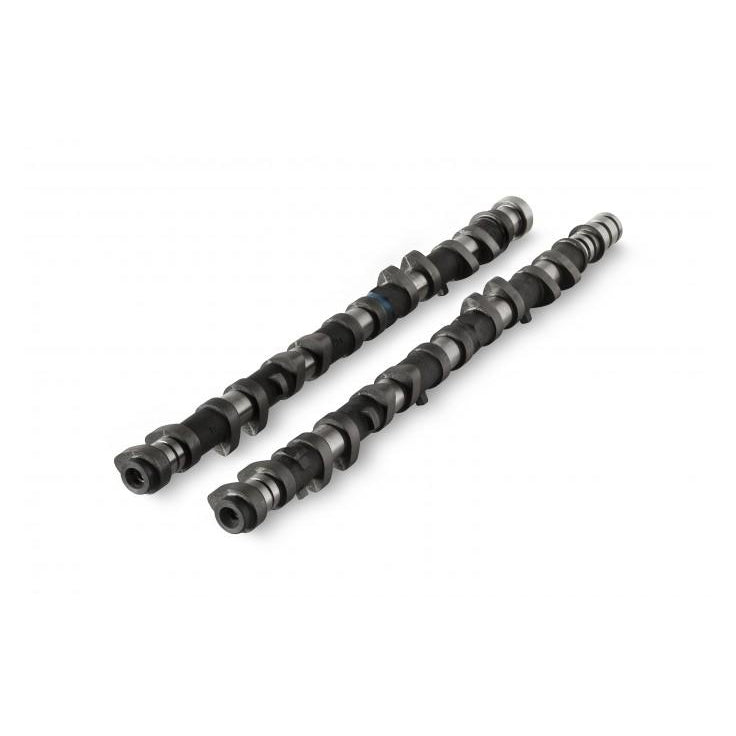

Kelford Cams V202-A Toyota Supra VVTi Billet Race Cams
Buy now pay later,no extra cost!
Payments from $136.49 with
Note: Please check availability with us before ordering.
248/248 Degrees advertised duration. 8.70mm/8.70mm lift. To suit Toyota 2JZ VVTi.
Additional Information:
High performance street cams for a near stock engine. Suits up to 30 lb boost and 7500 RPM with our recommended valve spring. Will also drop in on stock spring.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 2JZ VVTi | V202-A | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.70mm | |||
Advertised Duration @ | 0.10mm | Intake: | 248 | Exhaust: | 248 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 210 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 41 BBDC | |||
IVC: | EVC: | 11 BTDC | |||||
Suggested Centre Lines: | Intake: | vari | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: | 0.26mm |
