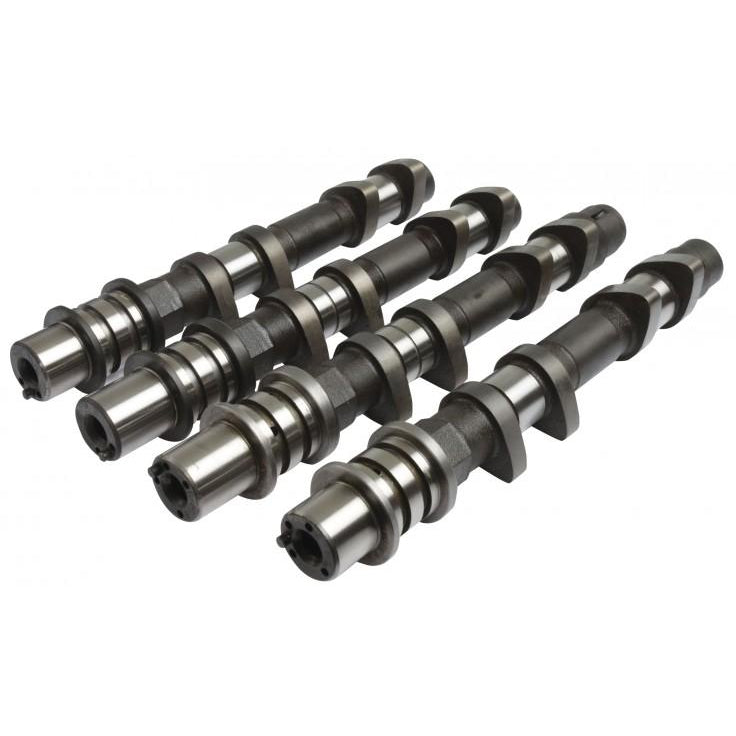

Kelford Cams R-199-B Subaru EJ25 STI 2005-on AVCS

$1,676.70 NZD
SKU KCR-199-B
Buy now pay later,no extra cost!

Payments from $167.67 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

264&260/260 Degrees advertised duration. 10.70mm&10.20mm/10.20mm lift.

Additional Information:

Race and Rally camshafts. High lift, low duration design for great throttle response. Must have shimless buckets and aftermarket ECU.

 Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU 2.5 STI 2005-2006 R-199-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.90mm Exhaust: 10.45mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.70mm Exhaust: 10.20mm
Advertised Duration @ 0.25mm Intake: 264 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 225 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 17.5 ATDC EVO: 44 BBDC
    IVC: 62.5 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 130 Exhaust: 113
VALVE Lift @ TDC Intake: 0.03mm Exhaust: 0.83
