Mishimoto Performance Intercooler, Fits BMW F22/F30 2012-2016
Buy now pay later,no extra cost!
Payments from $178.96 with
Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune.
Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 6” thick step-core design adds a 115° angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction, optimizing this intercooler for heat dissipation with minimal pressure drop.
Coupled together, our features were able to drop intercooler outlet temperatures by 45°F, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in silver or black and also includes the Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2012-2016 BMW F22/F30 Chassis
- Patent Pending

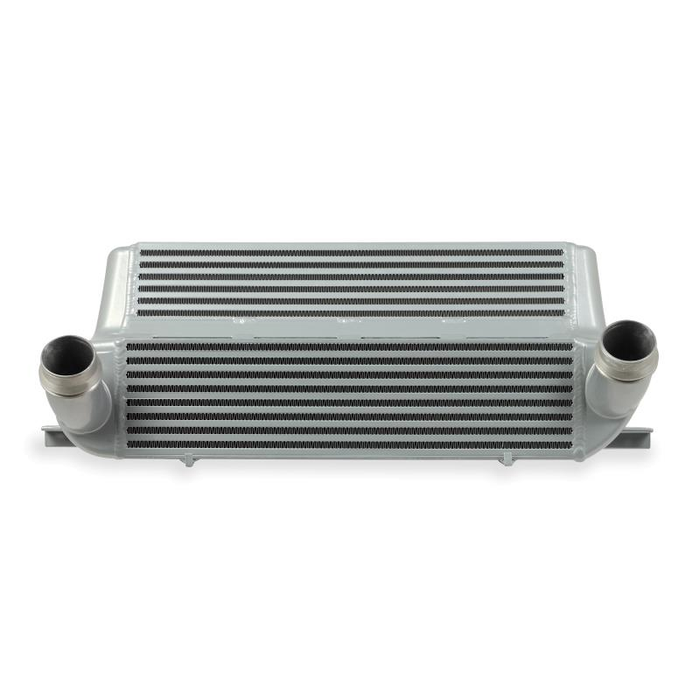

- 6” thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers
- Max power gains of 10 whp and 8 wtq on stock tuning
- Drops intercooler outlet temperature by 45°F on stock tuning
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Intercooler core volume increased by 96%
- External fin surface area increased by 130%
- Header plate includes shroud specifically designed to seal against curved factory crash beam
- Retains factory quick-disconnect fittings for compatibility with stock piping

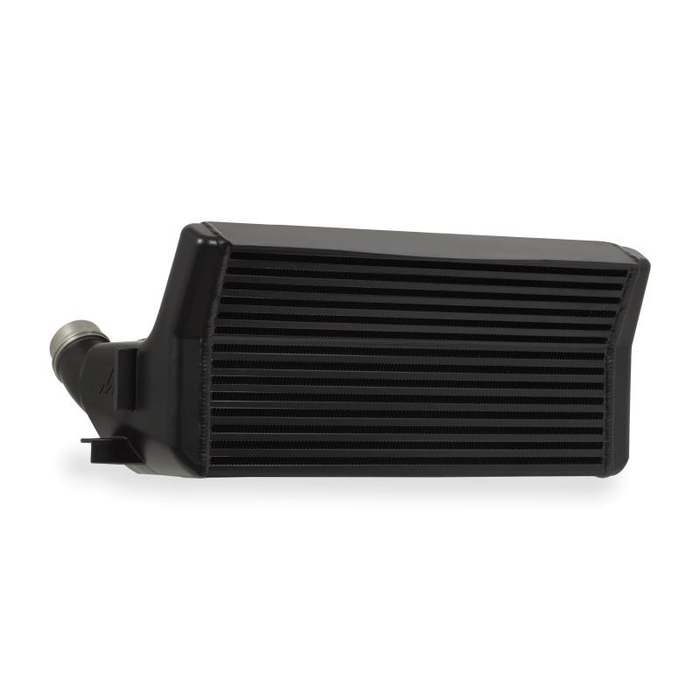

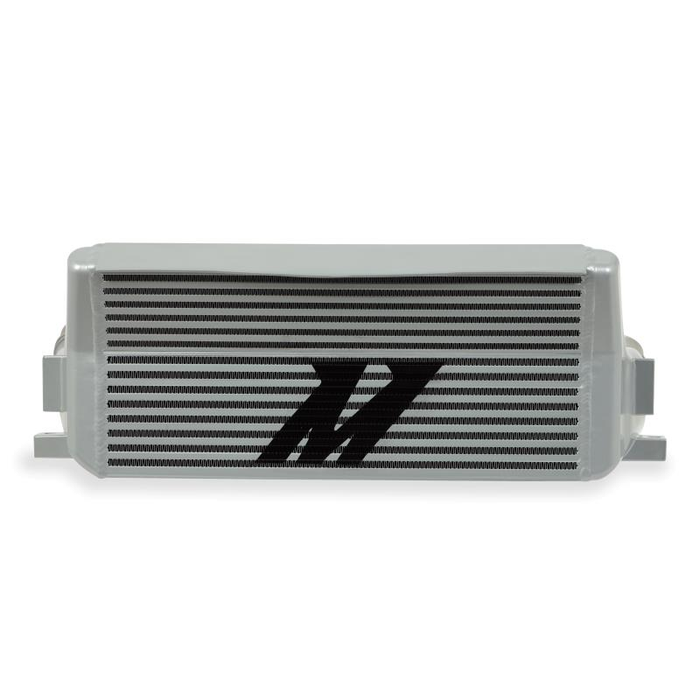

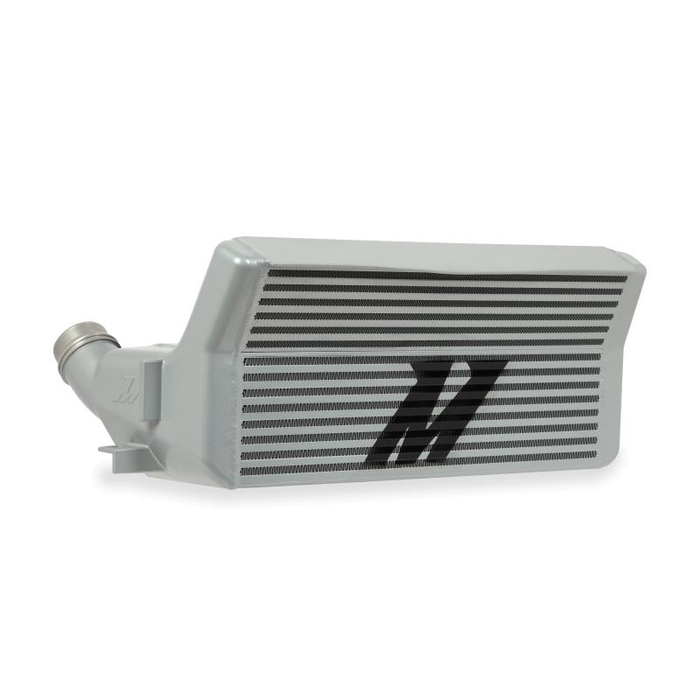

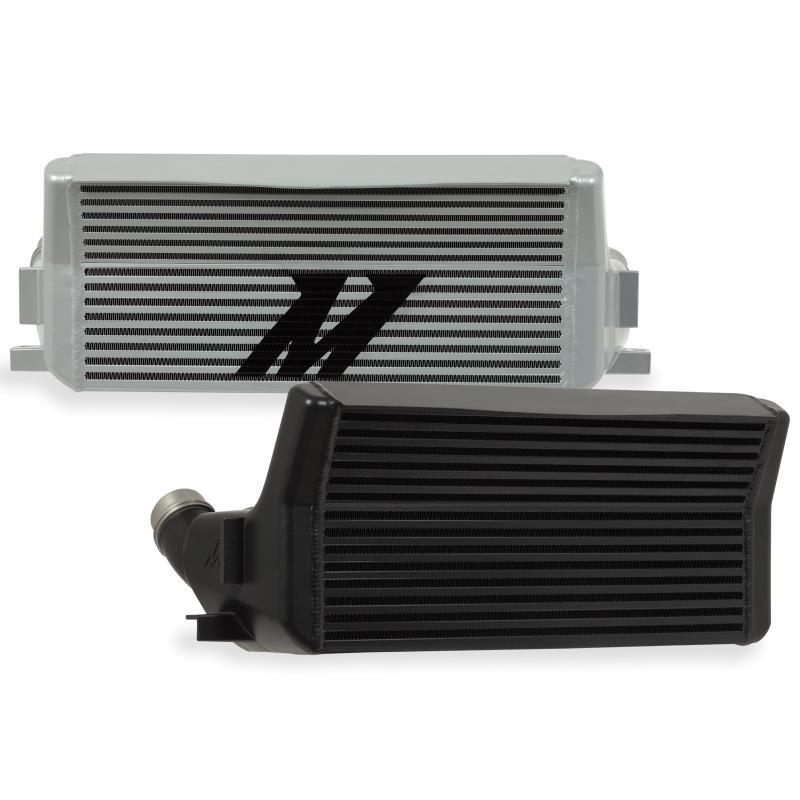

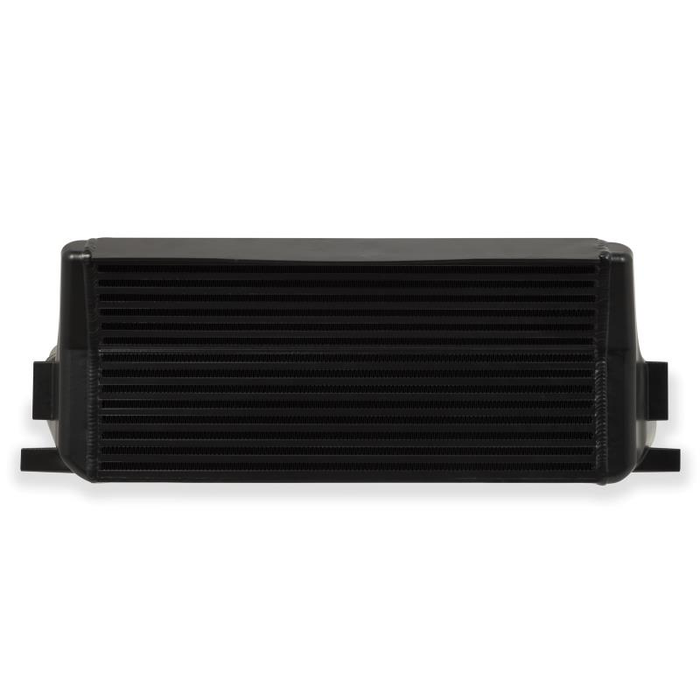

- Available in silver or black
- Mishimoto Lifetime Warranty
Purchase Includes:
- (1) Performance Intercooler
- Mishimoto Lifetime Warranty
Notes:
M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.
Vehicle Specifications:
| Engine Codes | N20 N26 N47 N55 |
| Chassis Codes | F22 F23 F30 F31 F32 F33 F34 F87 |
| Fits | 2014-2016 BMW 228i/228i xDrive 2014-2016 BMW M235i/M235i xDrive 2013-2016 BMW 320i/320i xDrive 2012-2016 BMW 328i/328i xDrive 2012-2016 BMW 328d/328d xDrive 2012-2016 BMW 335i/335i xDrive 2014-2016 BMW 428i/428i xDrive 2014-2016 BMW 435i/435i xDrive 2016+ BMW M2 |
Product Specifications:
| Installation Torque Specs | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). |
| Core Thickness | 6" |
| Coating | Powder Coated |
| Outlet | 2" |
| Inlet | 2" |
| Core Size | Upper - 20.2" x 3.9" x 2.2" Lower - 20.2" x 5.3 x 6" |
| Construction | Bar-and-Plate |
