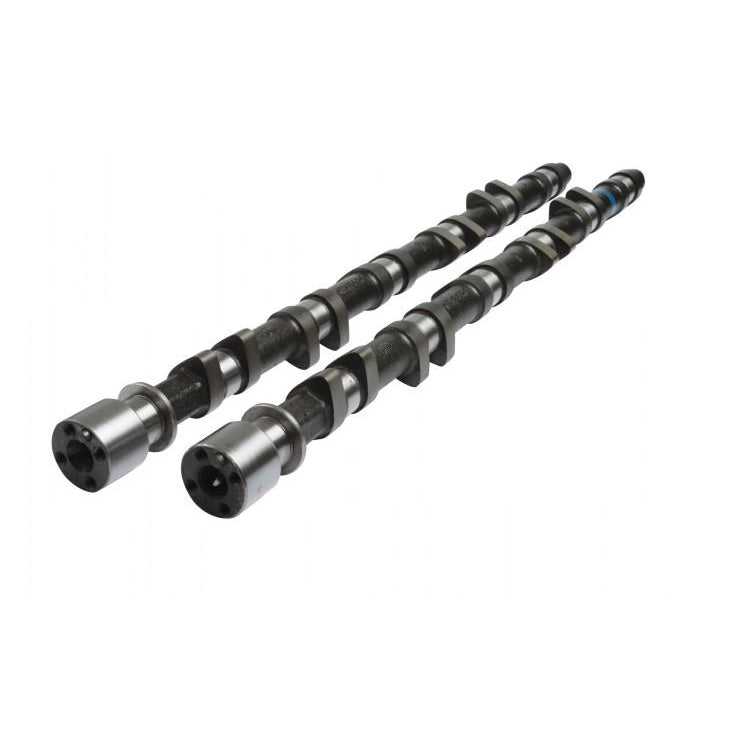

Kelford Cams HL182-A Nissan RB20DE/T & RB25DE/T R31 & R32 Performance Cam
Buy now pay later,no extra cost!
Payments from $133.51 with
Note: Please check availability with us before ordering.
262/262 Degrees advertised duration, 9.30mm/9.30mm lift.
Additional Information:
Drift spec, low duration, low overlap, maximum velocity, for ultimate throttle response. No cylinder head clearancing needed.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | RB20&25DE/T | HL182-A | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 9.30mm | Exhaust: | 9.30mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.30mm | Exhaust: | 9.30mm | |||
Advertised Duration @ | 0.10mm | Intake: | 262 | Exhaust: | 262 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 45 BBDC | ||
IVC: | 39 ABDC | EVC: | 3 BTDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 114 | |||
VALVE | Lift @ TDC | Intake: | 1.37mm | Exhaust: | 0.85 |
