aFe Power BladeRunner GT Series Bar and Plate Radiator w/ Hoses Jeep Wrangler (JK) 07-11 V6-3.8L
Buy now pay later,no extra cost!
Payments from $221.65 with

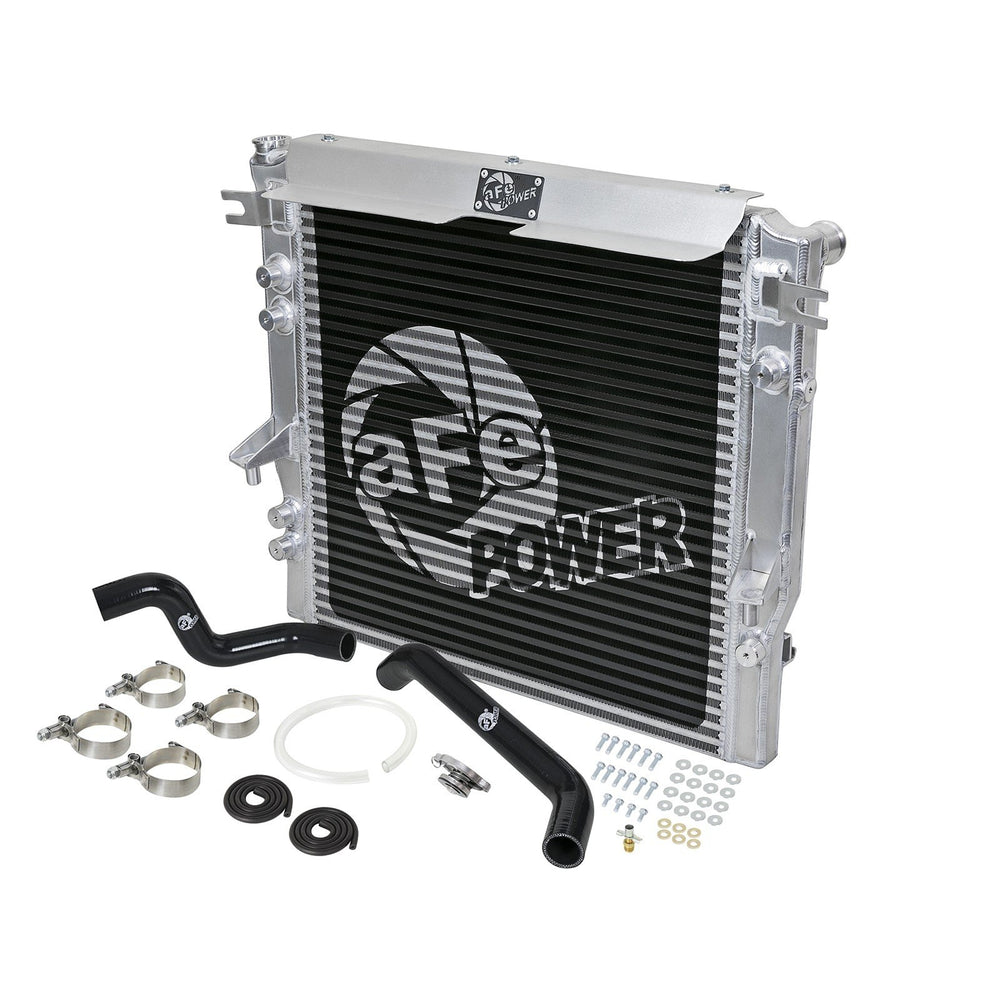

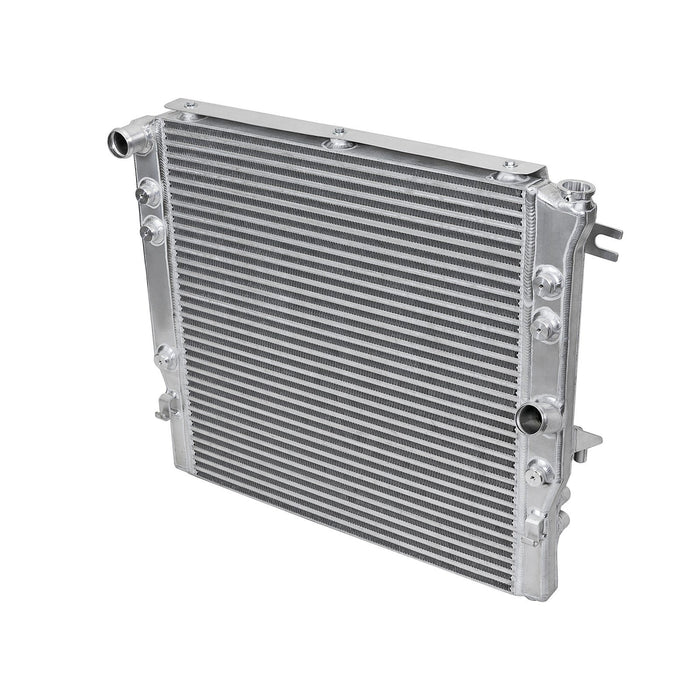

This BladeRunner GT Series Radiator keeps your 2007-11 Jeep Wrangler JK with the 3.8L running cooler, longer. Made of 100% aircraft-grade 5052 aluminum, this 1-3/4" bar and plate design and 1/8 IN aluminum fabricated end tanks handle rock-crawling and street hauling. Includes upper and lower 5-ply polyester reinforced silicone hoses and quality stainless steel, T-Bolt clamps for a simple, secure installation.

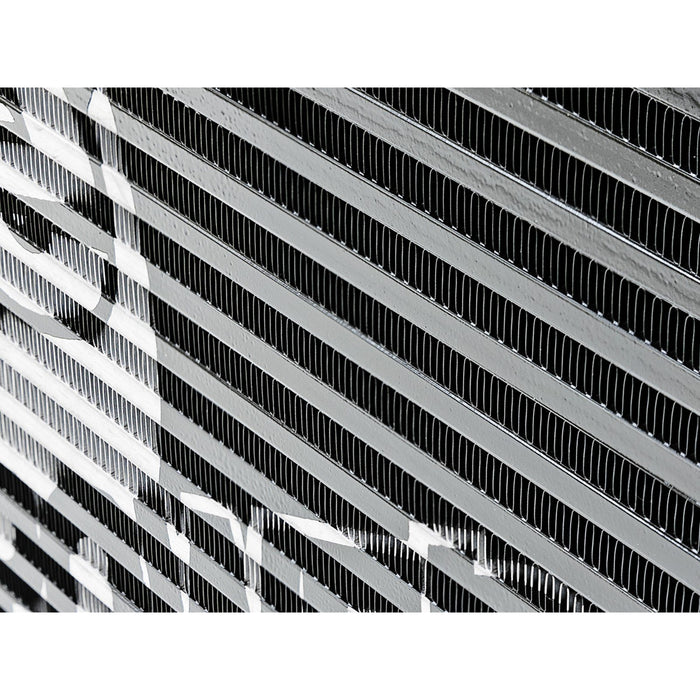

Unique 1-3/4" Bar and Plate Core Design:
25% more efficient than factory tube and fin core design. The BladeRunner features a bar and plate core design which provides greater heat dissipation and better coolant flow for optimum cooling efficiency.
Flow and Performance:

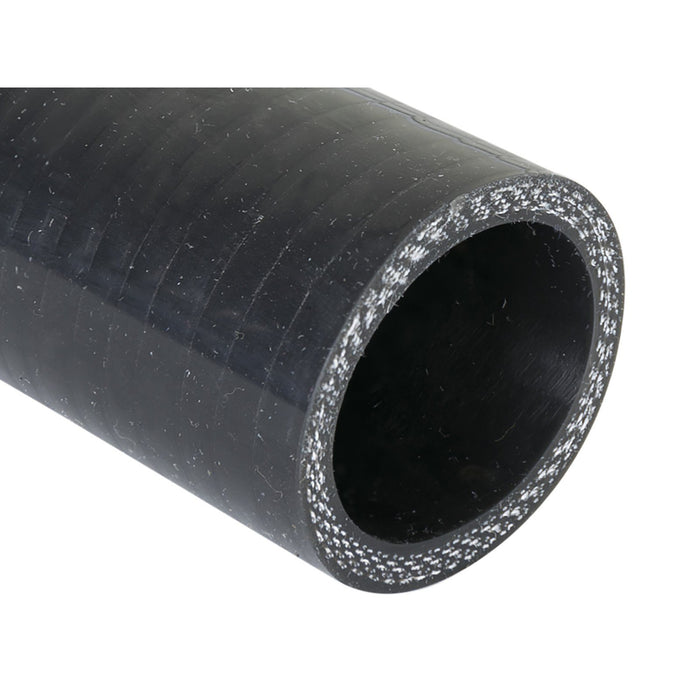

Aircraft-grade aluminum construction and larger core offers 25% more coolant capacity to maintain cooler temperatures. Includes both upper and lower 5-ply polyester reinforced silicone hoses that withstand high-temperatures and outlast factory rubber hoses.

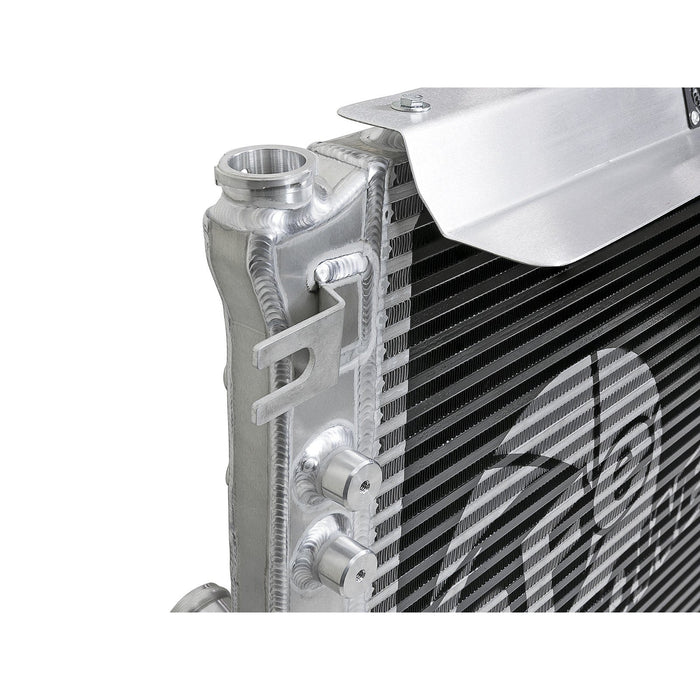

End Tanks:
The unique BladeRunner end tanks are constructed out of 1/8'' TIG-welded aluminum plates for strength and durability.

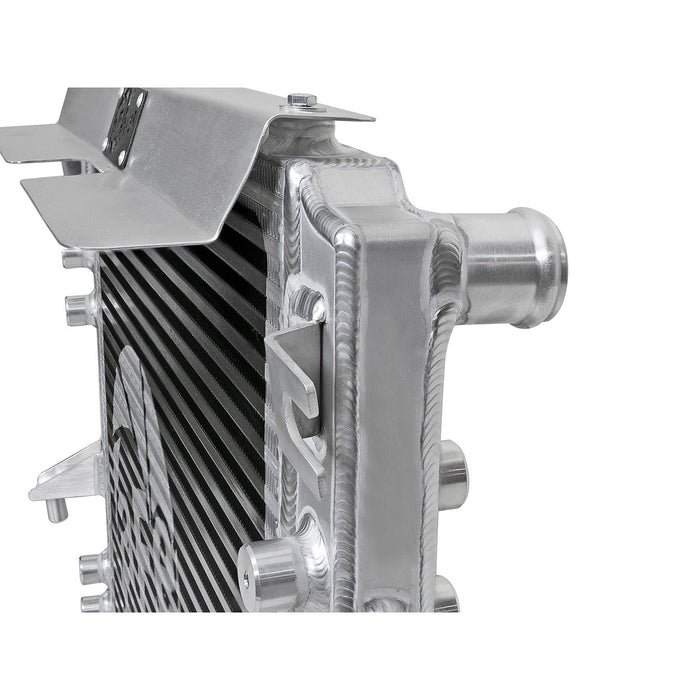

Billet Aluminum Inlet/Outlet:
1 1/2 IN diameter billet aluminum inlet and outlet for long-lasting reliability.
TIG-Welded:
100% TIG-welded by certified craftsmen for race proven strength and durability. TIG-welding provides the strongest welds reducing stress cracks.
Brass Drainage Valve:
This radiator includes a 1/4 IN NPT brass drain valve with a barbed fitting to connect a hose for draining coolant easy and mess free.
Perfect Fit:
Utilizes the factory mounting locations to provide stability for a hassle-free installation. Includes high quality, stainless steel, T-Bolt clamps and heavy-duty 5-ply silicone hoses for strength.
Custom Appearance:
Brushed aluminum finish with an aFe Power logo painted on the front. Radiator hoses are finished in black silicone with an aFe Power logo printed on them.

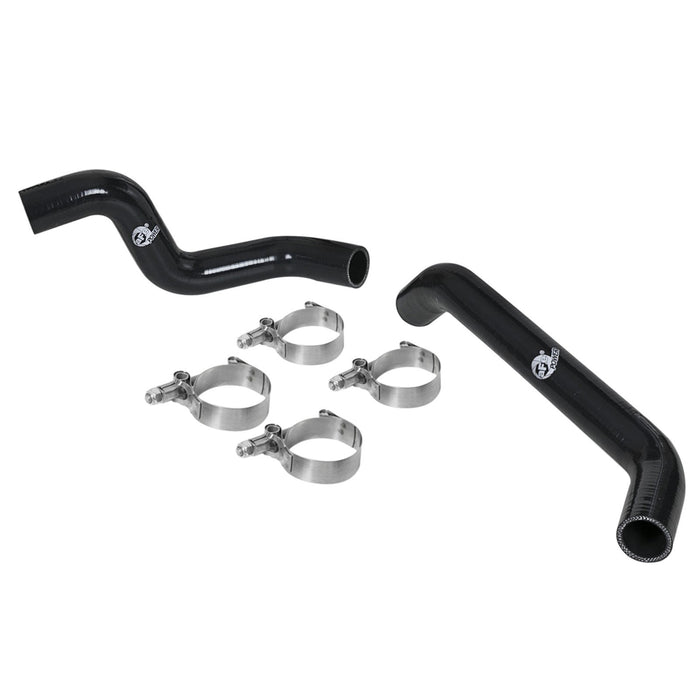

aFe BladeRunner radiator hose kit is also available separately PN 46-50004-B.
Features:
- Unique bar and plate designed core for 25% more efficient cooling
- 1 3/4" thick core, 75% larger than the factory Jeep radiator
- Increases coolant capacity by 25% to maintain cooler temperatures
- 100% aircraft-grade welded 1/8" 5052 aluminum for strength and durability
- Premium upper and lower 5-ply silicone hoses for long life
- Uses factory mounting locations for easy install
- Includes 1.3 Bar radiator cap
Vehicle Applications:
| Year | Make | Model | SubModel | Engine | Fuel |
| 2007-2011 | Jeep | Wrangler JK | V6 3.8L | Gas |
