S1Built - 5/8" Chromoly Rod End Heim Joint
Buy now pay later,no extra cost!
Payments from $4.08 with

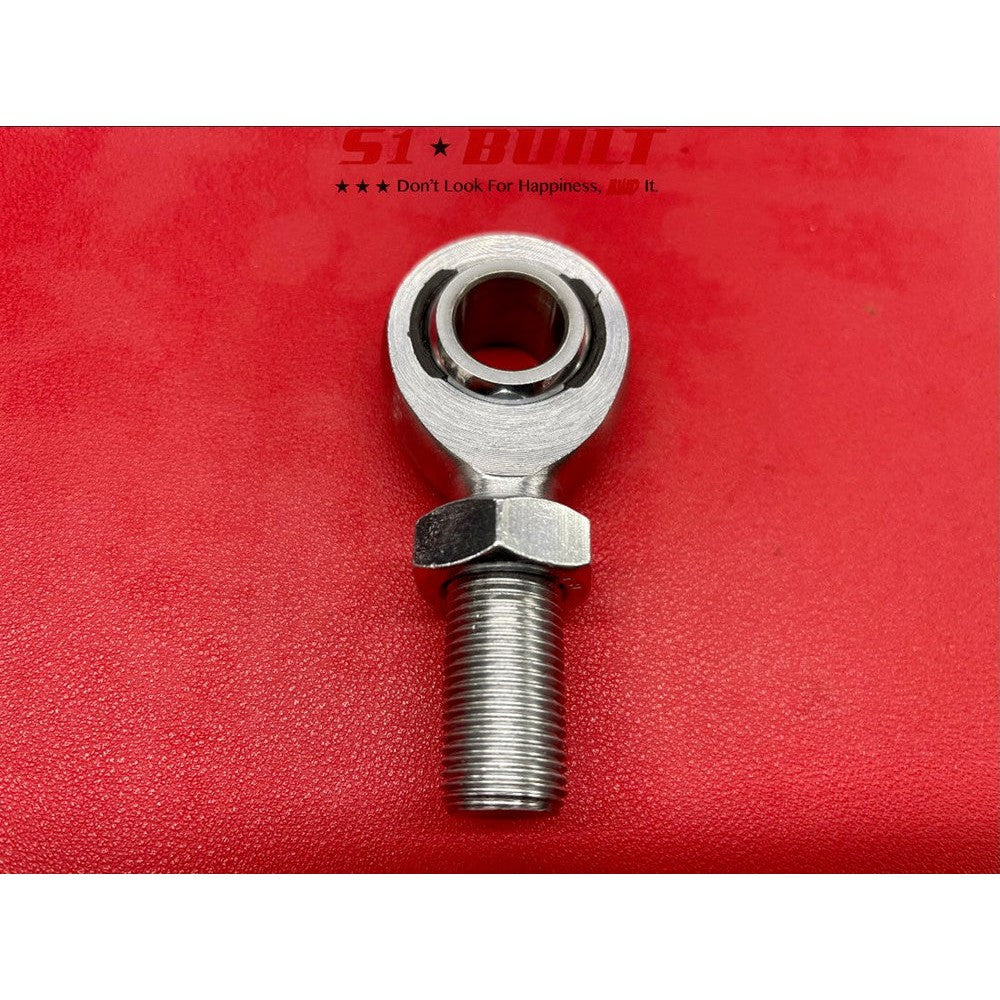

Our 5/8" Chromoly Rod End Heim Joint. Comes as shown in photos(nut included). Price is per 1 piece. Available in Left-hand and Right-hand threads.
Material: 4130 Chromoly Steel
Thread Size: 5/8"-18
Ball Bore: .625"
Ball Width: .750"
Centerline Length: 2.625"
Thread Length: 1.625"
Load Capacity: 17,995lbs
Jam Nut
Thread: 5/8"-18
Width: Max 0.938"-Min 0.922"
Height: Max 0.387"-Min 0.363"
Our products are made for Off-road use only. Our product's full potential is based entirely upon proper installation. Made in the USA. All sales are final.
