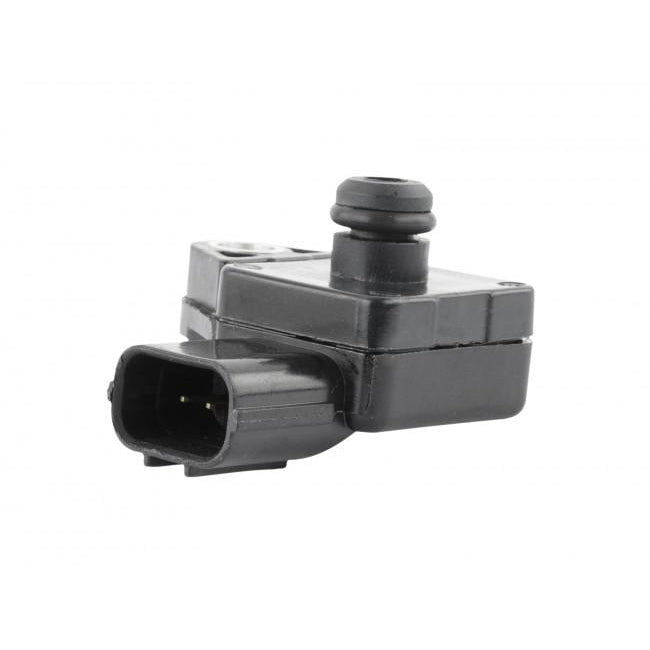

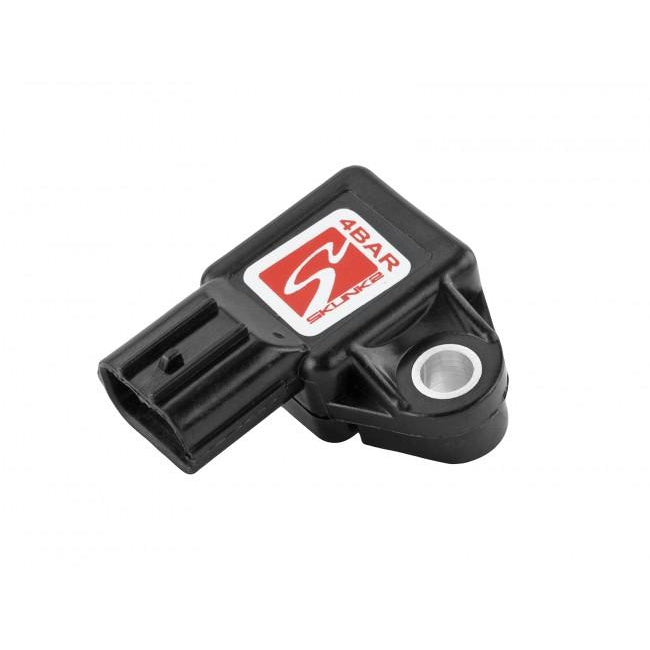

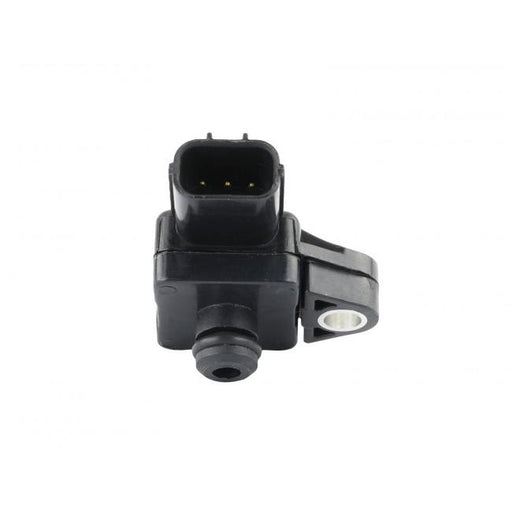

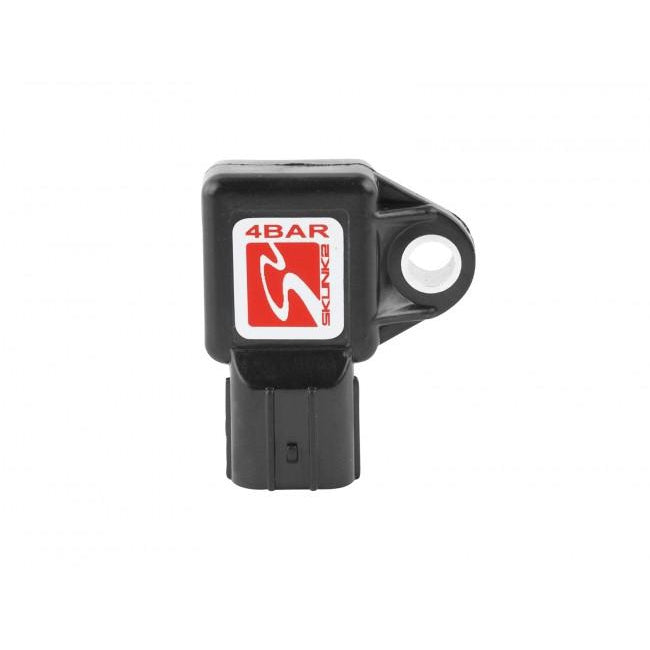

Skunk2 MAP Sensor - 4 BAR - Honda K24Z/ F22C
Buy now pay later,no extra cost!
Payments from $25.39 with
Skunk2 is proud to offer our very own 4 BAR MAP Sensor for the 2012-2015 Civic Si, 2006-2009 S2000 and 2013-2015 ILX for all your boosted K24Z7 and F22C engine needs!
Notes:
A 1 BAR MAP sensor reports barometric pressure times one, which is approximately 14.7 psi or 30in/Hg (inches of mercury). 2 BAR or 3 BAR simply mean two or three times above barometric pressure. The sensor will measure each direction, vacuum or pressure.
For Reference:
1 BAR is for a normally aspirated engine
2 BAR will handle a forced induction up to 14.5 psi of boost
3 BAR will handle a forced induction up to 29.0 psi of boost
4 BAR will handle a forced induction up to 43.5 psi of boost
A vehicle's computer is calibrated to function at a specific level as programmed by the design engineer. A 2, 3, or 4 BAR MAP sensor placed in a system designed for a 1 BAR sensor will not function correctly; in fact the system will run very rich because of the low return voltage signal. A computer that is programmable is a must for any tuner attempting to boost their engine's output with the addition of a turbocharger and a 2, 3, or 4 BAR MAP sensor.
Specs:
Scalar 838
Offset 31
Voltage to pressure (KPA) conversion
P= pressure in KPA 4 bar = 400 KPA
Voltage out/signal = 5 X (.002421 X P - .00842)
Atmosphere equals 1 bar or 100 KPA = 5 X (.002421 X 100 - .00842) = 1.168 volts @ 1 bar or 100 KPA
