TracTuff Remote Mount Fluid Manifold
Buy now pay later,no extra cost!
Payments from $18.99 with
My remote mount oil/ fuel manifold gets your critical sensors off of the engine! Lets face it, the factory oil pressure sending port was never meant to support the weight of the OEM sender, your after market gauge pressure sender, your after market gauge temp sender, and your turbo oil feed! Vibration can cause some pretty serious problems and an oil fire is not something you want to deal with; not to mention... it has been known to not only knock out sensors prematurely, so why not get them off the block.

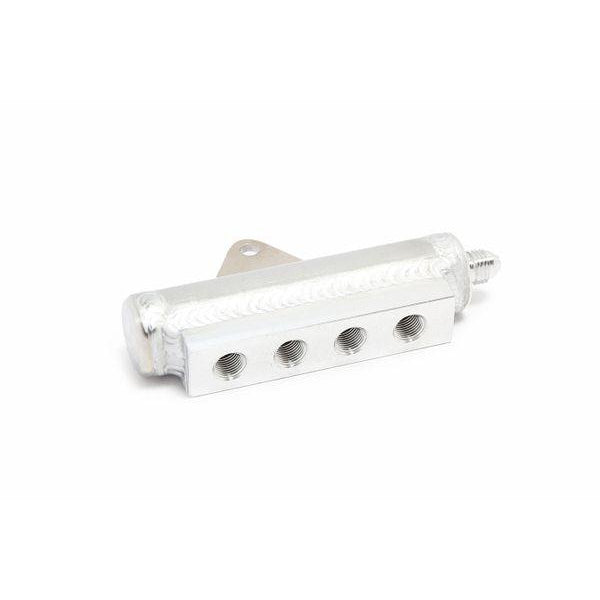

The block is CNC machined from 6061-T6 aluminum and has several universal BSPT and NPT ports as well as a MAP sensor port that works with k series type sensors, when the product is to be used as a vacuum manifold. Simply choose the ports you want and cut those you don't, off. The two (BSPT and K MAP) that may not be wanted... are on the ends so removing them doesn't affect anything. If you don't want four NPT ports... cut between them and your done! The distance of both the BSPT and MAP ports also insure that the body of the sensors don't crowd the accessory ports!

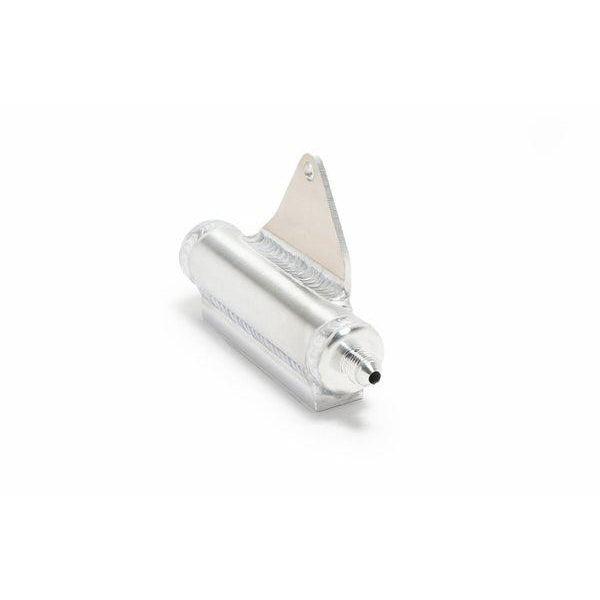

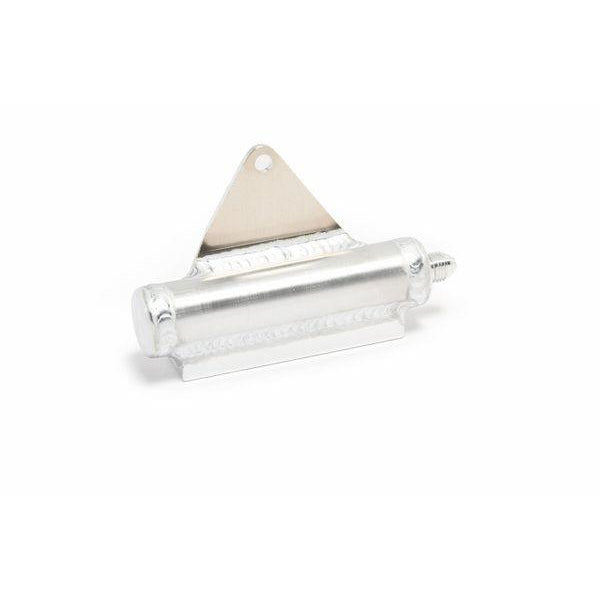

The back-side of the block is 3D machined for a PERFECT fit against a 1.00" diameter aluminum tube and the caps have a small undercut so they sit inside the tube when welding. Just choose the combo you want/ need. The K MAP port has an associated M5 x 1.0 screw hole to hold the sensor in place.
NOTE: Please contact sales@tractuff.com for your specific mounting bracket needs as this is just an example. If a bracket is chosen and we are not contacted about specific needs... this bracket will be duplicated and welded in the same position.
Addtional Options:
-1/8" BSPT Ports
-Dont Need It
-Left Side
-Right Side
-Mounting Bracket
-Universal w/6mm Hole - Centered
-Custon-Email Details
