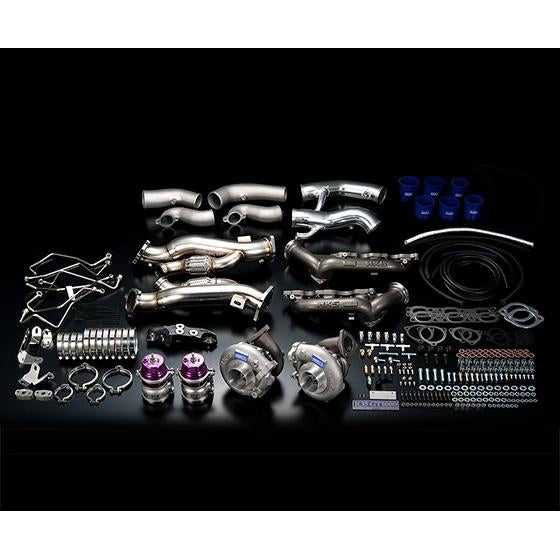

HKS R35GT-R GT1000+ Full Turbine Kit
by HKS
$28,337.14 NZD
SKU 11003-AN015
Buy now pay later,no extra cost!
Payments from $2,833.71 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*
HKS R35GT-R GT1000+ Full Turbine KitConcept and Features:
- This kit is a part of family of Symmetric layout HKS R35 Full Turbine Kits. It utilizes ball bearing turbines and produces powerful strong high end and great response.
- GTII 8267 and GTII 8267R turbines
- Specialy developed suction pipe and chamber pipe to improve intake efficiency
- Heat resistant cast steel exhaust manifold
- Compact and light GTII wastegates to precisely regulate boost
- Please note that installation requires engine removal.
- Products such as Fuel Pumps, Injectors, F-CON, EVC, Engine parts are not included in the kit.
- Wastegates are shipped precalbrated at approximately 90-100kPa.
- This kit requires modification of stock water pipe and turbocharger heat insulator.
- This product is designed for race/motorsport application only. HKS is not responsible for any damage to vehicle's engine, transmission or other parts.
- This product may void dealer warranty.
- Capacity upgrade kit(4.3L)
- HKS STEP 2 Camshafts
- HKS HIGH FLOW SURGE TANK
- HKS Intercooler
- Upgraded fuel pump and injectors
- HKS EVC6-IR 2.4 (240kPa boost)

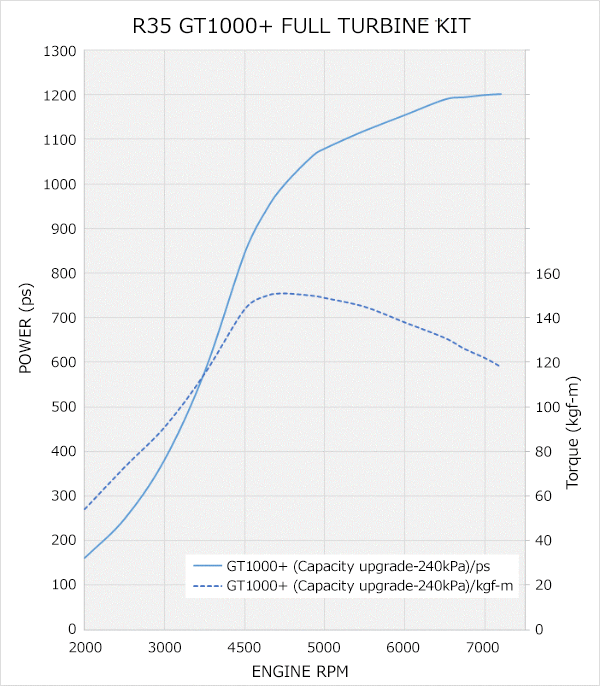

- Max Power: 1204ps (885.5kW)/7410rpm
- Max Torque: 151.0kgf/m (1480 N/m)/4560rpm
|
Vehicle |
Model | Engine | Model Year | Type | Turbo Kit | Turbine Size | Boost Pressure | Code No. | Price | Instruction Manual | Remarks | |
| GT-R | R35 | VR38DETT | 07/12 - | GT1000+ FULL TURBINE KIT | GT-FTK | GTII 8267 & GTII 8267R | 88.3kPa (0.9kgf/cm2) | 11003-AN015 | Box Sizes(mm) (Weight): #1: 685x270x270 (14kg), #2: 1160x460x290 (34.5kg) |
