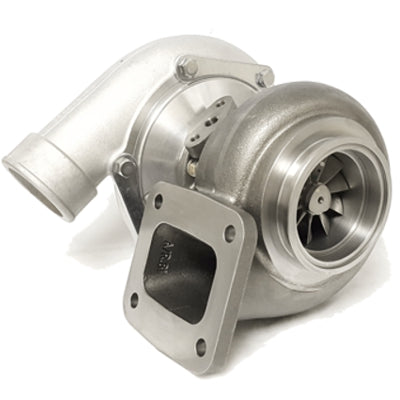

ATP Turbo Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .70 A/R T4 UNDIVIDED WITH 3" V-BAND
by ATP Turbo
Save 10%
Original Price
$2,688.14 NZD
Current Price
$2,419.33 NZD
SKU GRT-TBO-J34
Buy now pay later,no extra cost!
Payments from $241.93 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTW3684JB (aka GTW6262JB) journal bearing turbo with .70 A/R T4 undivided turbine housing and 3" v-band exit. 750 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price
Product Specifications:
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 71.0mm
- Turbine Wheel Exducer: 61.9mm
- Turbine Wheel Trim: 76
- Compressor Housing is T04S Frame .70 A/R with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series journal bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-042
- Oil drain gasket: Product Code: ATP-GSK-027
- Flange, T4 Inlet Product Code: ATP FLS-200
- Gasket, T4 Inlet Product Code: ATP GSK-006
- Flange, V-Band 3 Inch Outlet (for Downpipe): Product Code:ATP-FLS-063
- Clamp, V-Band Outlet : Product Code:CLC-CLA-013
