ATP Turbo Garrett GTW3684R (aka GTW6262R) Ball Bearing Turbo, 1.15 A/R T4 Divided w/ 3" V-band
by ATP Turbo
$3,921.10 NZD
SKU GRT-TBO-H62
Buy now pay later,no extra cost!
Payments from $392.11 with
Enjoy now. Pay Later. Interest free. Learn More

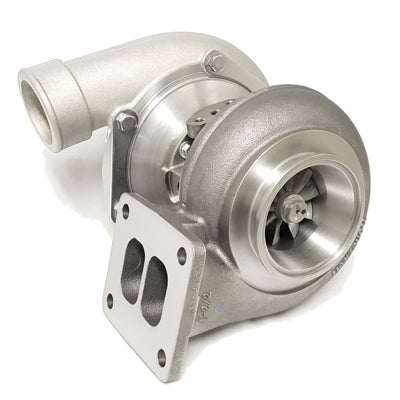

Garrett GTW3684R (aka GTW6262R) ball bearing turbo with 1.15 A/R T4 divided, 3" v-band turbine housing. 750 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 71.0mm
- Turbine Wheel Exducer: 61.9mm
- Turbine Wheel Trim: 76
- Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-042
- Oil drain gasket: Product Code: ATP-GSK-027
- T4 Divided Inlet Flange (for Turbo Manifold)- Product Code: ATP-FLS-057
- T4 Divided Inlet Gasket - Product Code: ATP-GSK-014
- 3" GT V-Band Outlet Flange with 81mm centering groove (for Downpipe)- Product Code: ATP-FLS-246
- Matching Downpipe V-Band Outlet Clamp - Product Code: CLC-CLA-048
