Corksport 2007-2013 Mazdaspeed 3 & 6 Intake Manifold
Buy now pay later,no extra cost!
Payments from $190.22 with
Next batch due with CorkSport late January 2025 - They will sell out in advance. Place orders now to secure yours.
Fitment Inspired:
We know modifying additional components to install a new performance part can be a real PITA; we worked hard to design a performance intake manifold that does not require extensive modification to use. The CorkSport Intake Manifold installs nearly identical to an OE IM plus difficult-to-access hardware locations on the flange have been cleared for improved installation.
The following components are in OE location and install like OE:
- 70mm Throttle Body w/included Hardware
- Oil Dipstick Mount
- MAP Sensor
- PCV Port w/include Barb Fitting
- Top Mount Intercooler (TMIC) Mounts (hardware not included & TMIC cannot be used with port injection)
- Lower Mounting Brace
Design Focused:
The CorkSport Intake Manifold may fit like OE, but that’s where the similarities end. The CS IM is designed with performance and drive-ability in mind with the larger plenum design and long even flow cylinder runners.
The intake plenum is 3x larger than OE which improves high RPM power capacity without sacrificing throttle response and driveability. The cylinder runners are longer than the typical aftermarket intake manifold to improve mid-range power while still having peak RPM capacity with the single runner design vs the OE split runner.
Auxiliary Fueling Support:
Newly added, the CorkSport V2 Intake Manifold features two auxiliary fueling solutions.

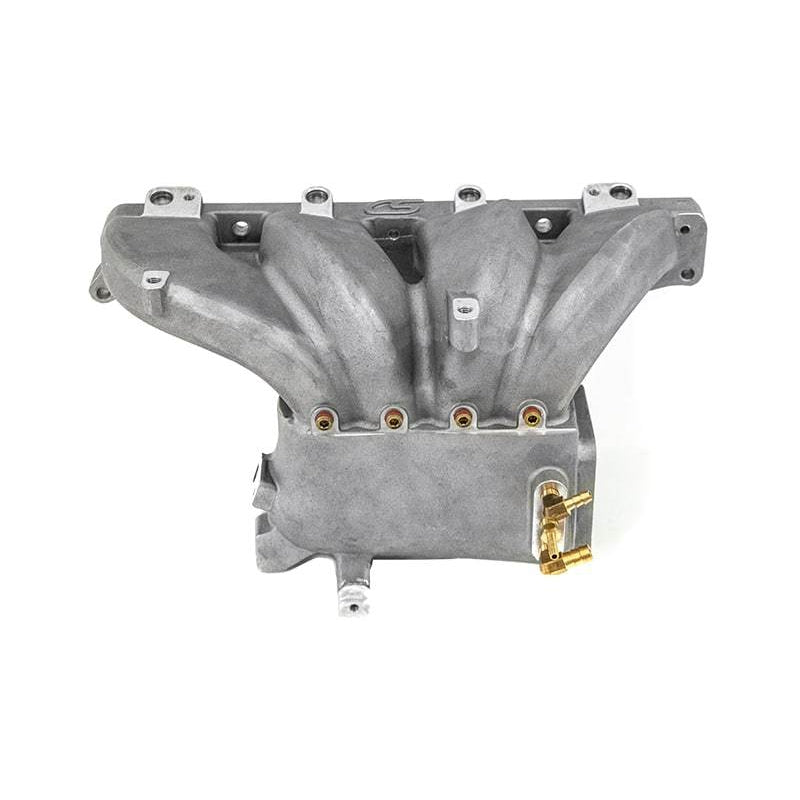

- Standard 1/8-27 NPT threaded ports are located on each runner for use with methanol nozzles or other fueling options. These allow for TMIC and FMIC clearance.

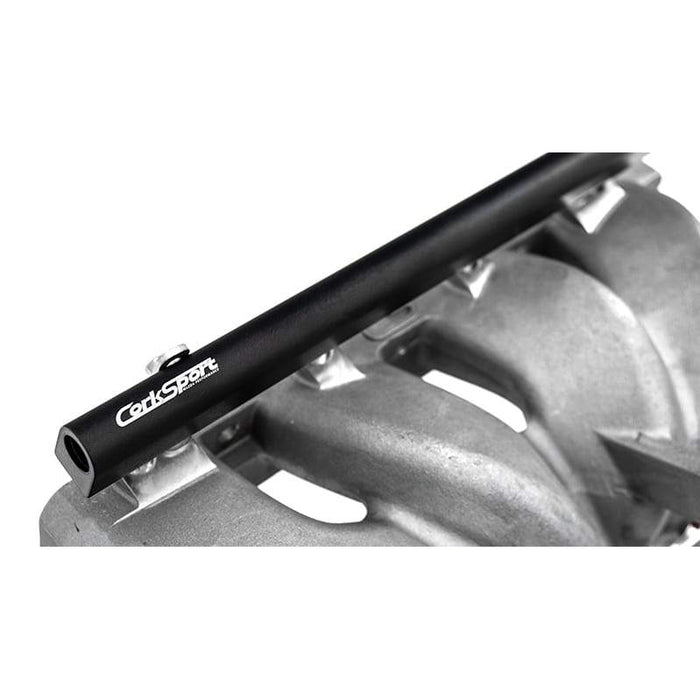

- Port Injection provisions have been incorporated in the design for easy use of Injector Dynamics injectors for high-power additional fueling. To use the port injection provisions you must also use the CorkSport Fuel Rail kit. (Injectors and tuning solution not included)

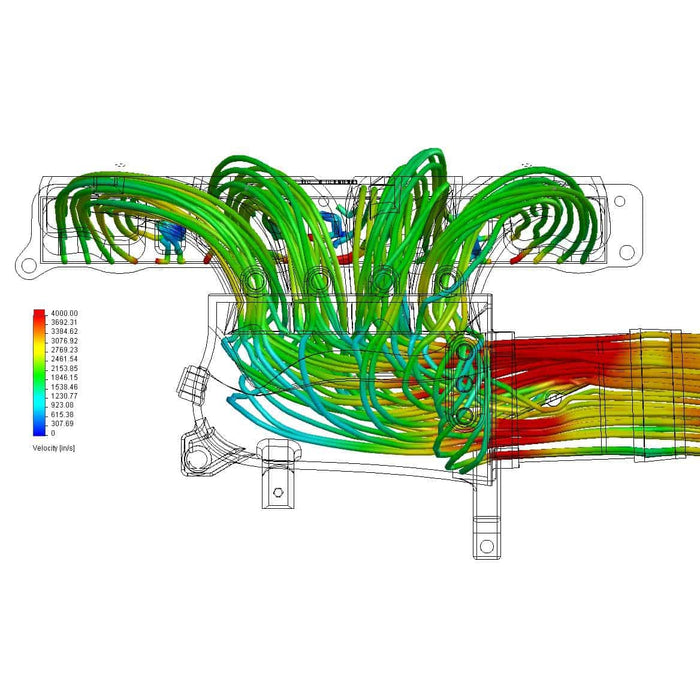

Balanced Flow:
Balanced flow is critical to the durability and performance of an engine; this is why the CorkSport Intake Manifold is such a valuable performance component for the Mazdaspeed engine. The OE Intake Manifold has a significant flow imbalance between the 4 cylinders which causes cylinders to run excessively lean or rich, affecting engine durability and performance.
Check out the graph to see the difference. Not only does the CorkSport Intake Manifold outflow the OE design by 70CFM on average, but it also significantly reduces the flow imbalance to 2% or less vs the OE imbalance of 21%. This means your engine can run stronger longer and have a higher potential to make power.
- CorkSport Intake Manifold: 275CFM per Runner Average @ 2% Imbalance
- OE Intake Manifold: 205CFM per Runner Average @ 21% Imbalance
Performance Driven:
The increased flow capacity and even flow between the cylinders provided by the CorkSport Intake manifold help increase power across the entire RPM range and spool the turbo ~100 RPM faster than OE. The graph to the right shows the difference in power before and after the CS IM on a MS3 with the CorkSport TD05H-18G turbo equipped.
The horsepower spike around 3300rpm is a result from a combination of the CS IM and a small increase in wastegate pre-load. The increased efficiency of the CS IM caused a 2-3psi drop in boost pressure that had to be corrected with the wastegate preload.
Proven Power:
The CorkSport Intake Manifold is not just for stock or little big turbos. This manifold is designed for the daily driver and high power builds alike. Proven to 684whp on a built 2009 Mazdaspeed 3 utilizing the CST6 turbocharger.

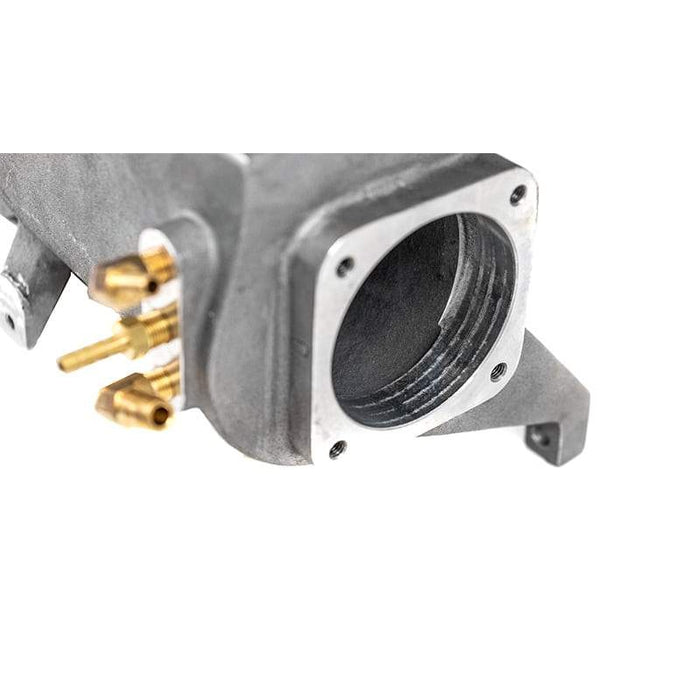

Large Throttle Body Opening:
Designed with a larger throttle body opening measuring at 70mm vs the OE 60mm. This works great with the OE throttle body and also allows the use of a larger throttle body without modification if desired. Pair with the CorkSport Throttle Body for peak flow efficiency.
Hardware and Accessories:
The CorkSport intake manifold comes to your door with the installed hardware as well as additional hardware and accessories required for installation. This includes:
- Three – M8x1.25x35mm Flange Bolts
- 1.5 Ft – 1/4” ID Chemical Resistant Rubber Hose for the EVAP System
- 3 Ft – 3/8” ID Chemical Resistant Rubber Hose for the Brake Booster
- CorkSport Throttle Body Gasket
- Vehicle Fitment:2007-2013 Mazdaspeed 3 and 2006-2007 Mazdaspeed 6. 2007-2009 CX-7 Not Confirmed
- Designed in America: Designed in Vancouver, Washington, in the Pacific Northwest.
- CorkSport Service & Support: 2-year limited warranty, full-color installation instructions, all necessary components, and knowledgeable telephone support at (360) 260-2675.
- The CorkSport Intake Manifold is for off-road and racing applications only.
- If you choose the optional fuel rail the Port Injection nozzle holes will be drilled out for use. If you do not choose to include the fuel rail you will need to drill the holes. This a very simple task.
- EGR Block-Off Plate: The CorkSport Intake Manifold does not retain the EGR recirculation port. An EGR block-off plate is required for installation. This will cause a CEL (check engine light).
- VTCS: The CorkSport Intake Manifold does not retain the provisions for the VTCS system. This will cause a CEL (check engine light).
- Gaskets Not Included: OE throttle body and cylinder head gaskets are not included in the kit. OE gaskets will work correctly with the CorkSport Intake Manifold.
OEM Intake Manifold Gasket – Part #: L3K9-13-111
OEM Throttle Body Gasket – Part #: L3K9-13-655 - Due to the difficulty of the manufacturing process, not all intake manifolds are identical or perfect in reference to aluminum casting. Dimensionally and performance-wise the intake manifold will perform as advertised. Every intake manifold is inspected for quality assurance.
- Tuning: the CorkSport Intake Manifold requires aftermarket tuning for proper engine performance.
