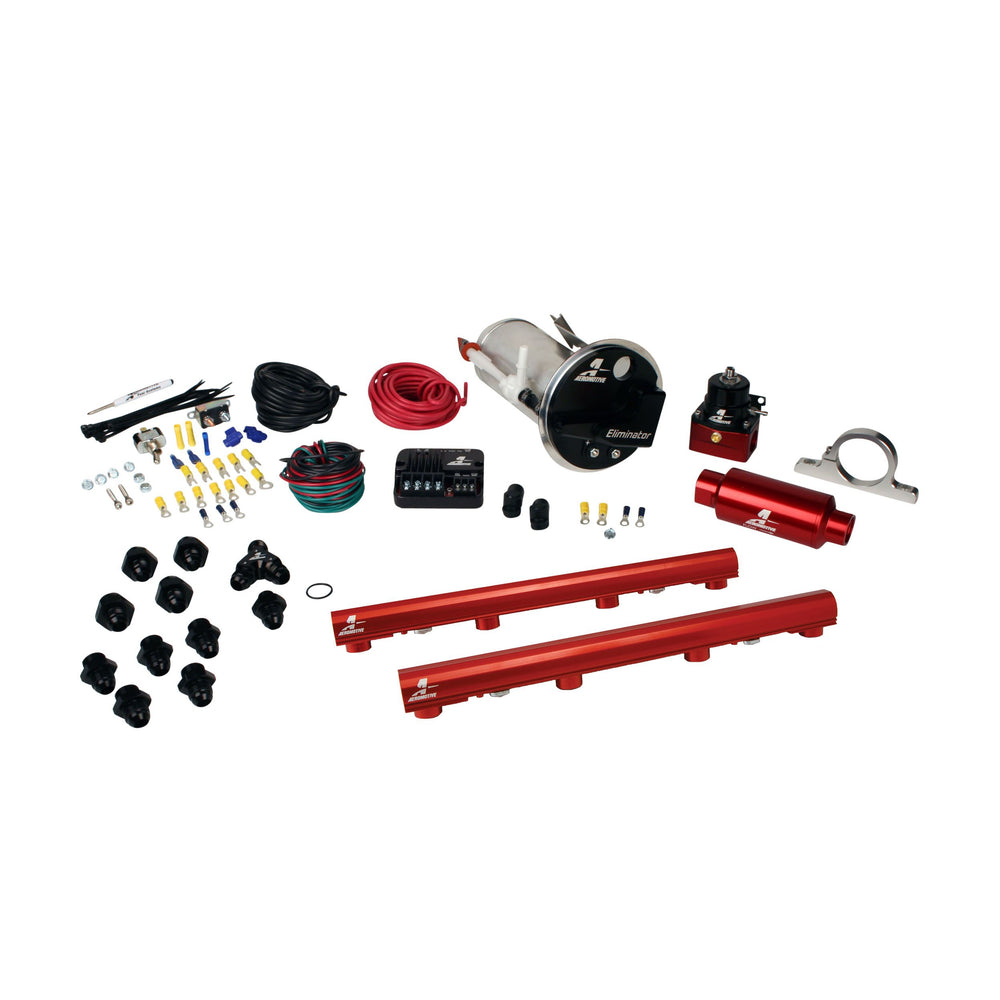

Aeromotive 05-09 Mustang GT Stealth Eliminator Street System with 4.6 3-V Fuel Rails
Buy now pay later,no extra cost!
Payments from $539.89 with
This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a Tach Adapter will be required to operate Pump Speed Controller.
This system contains the following parts:
- 1ea p/n 14116 Fuel Rails
- 1ea p/n 13134 Fuel Pressure Regulator
- 1ea p/n 18677 Fuel Pump Assembly
- 1ea p/n 12305 Filter Bracket
- 1ea p/n 12335 Filter Assembly, 40-micron
- 1ea p/n 16306 Fuel Pump Speed Controller
- 1ea p/n 15107 One-Way Check Valve
- 6ea p/n 15607 ORB-08 to AN-08 Fittings
- 5ea p/n 15610 ORB-10 to AN-08 Fittings
- 1ea p/n 15674 Y-Block, AN-08
- 1ea p/n OR002-2910 AN-10 O-Ring
P/N 17327 05-09 Mustang GT Stealth EFI Fuel System.
For Mustang GT’s with Stock 3-Valve 4.6L Engine.
- Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated.
- For Mod Motor Mustangs requiring 4.6L 3V GT Fuel Rails and/or equivalent intake.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.
Additional Information:
| Weight | 18.09 lbs |
| Dimensions | 19 × 13 × 13 in |
