ASR “Revolver” Trailing Arm Bushes – EF/EG/EK/DC
ASR "Revolver" Trailing Arm Bushes - EF/EG/EK/DC

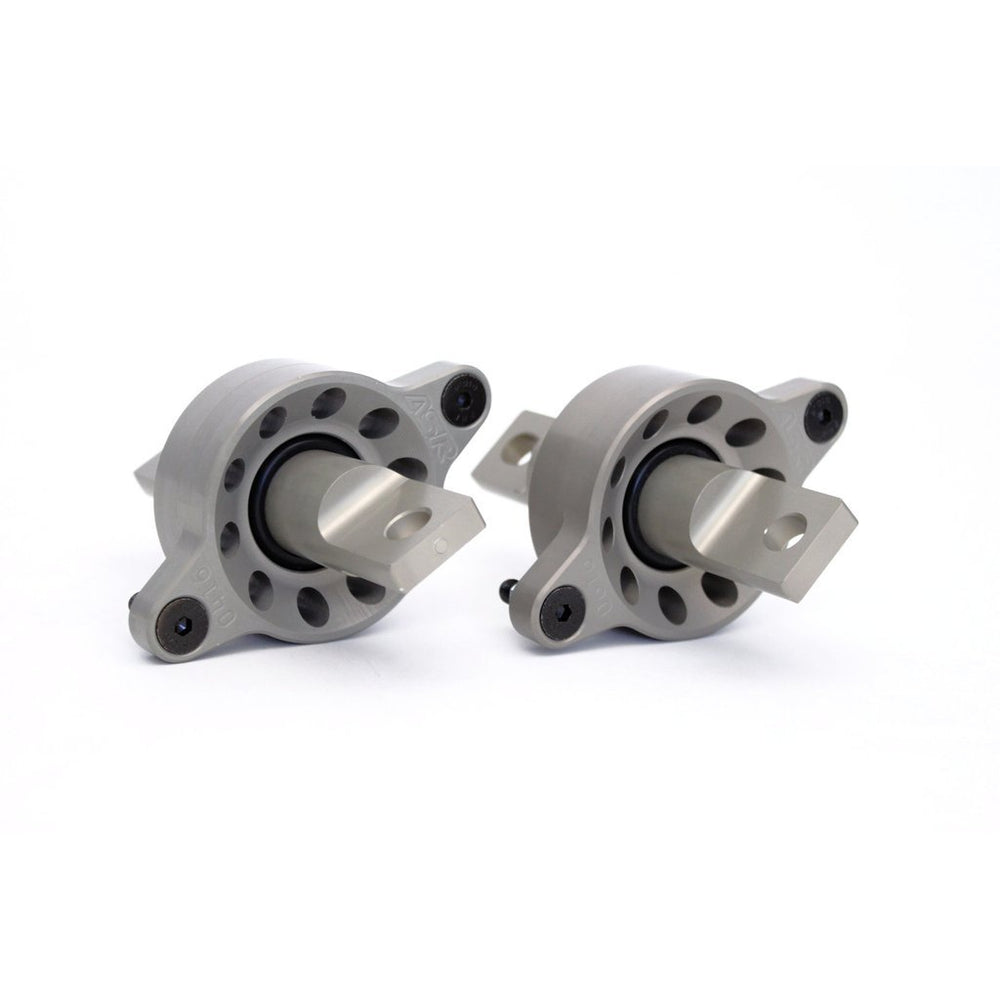

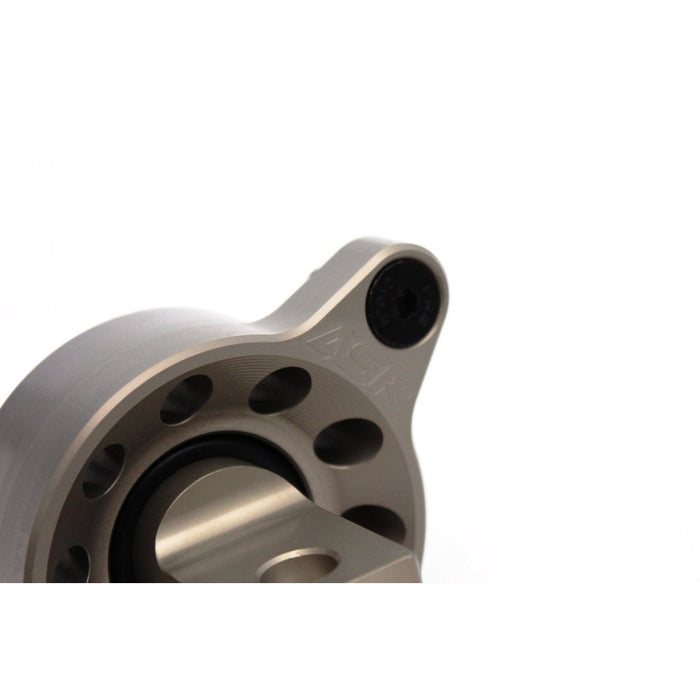

The ASR "Revolver" is a high-performance replacement for the rear trailing arm compliance bushing found on many 90s Civic and Integra. The factory Honda bushings are designed to take braking and cornering loads from a street tire with stock vehicle height. But as you modify your car with grippier tires and lowering it, the factory bushing will become inadequate and may cause handling issues due to binding and over traveling.
During suspension movement, the Revolver's unique spherical bushing design allows the trailing arm to move in rotational and axial motions simultaneously. Resulting in zero binding throughout the suspension movement, therefore, enhances mechanical grip and driver feel.
Designed for maximum performance and lightweight, the Revolver is made out of aircraft grade 6061 T6 aluminum and then hard anodized to Mil-A-8625 Type III for wear resistance.
The spherical bushing is machined out of Delrin which provides superior low friction characteristics and durability.
Installation requires drilling 2 holes per side. This is done for maximum retention of the Revolver housing to your trailing arm.
*Fits 88-00 Civic and 94-01 Integra*

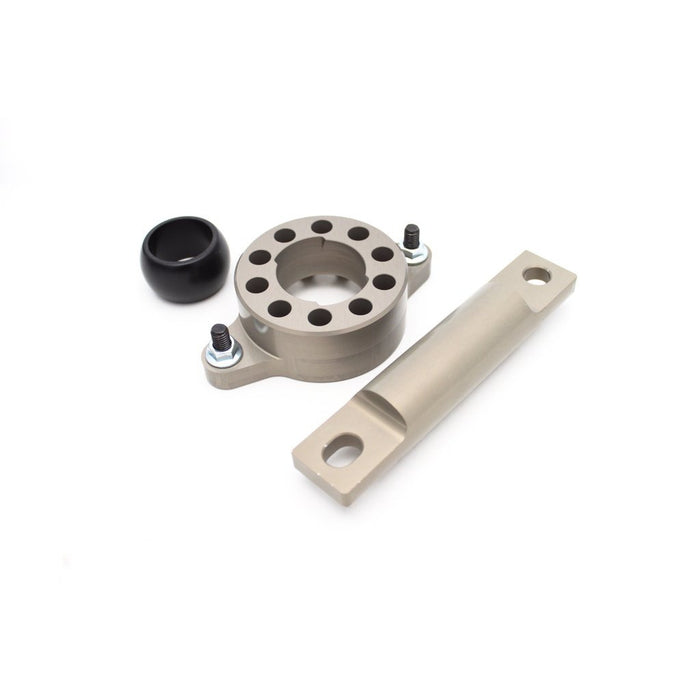

Contents:
- 2 - RTA Housings
- 2 - Tab Shaft
- 2 - Delrin Ball Bushings
- 4 - Socket Flat Bolts
- 4 - M8 Serrated Nut
