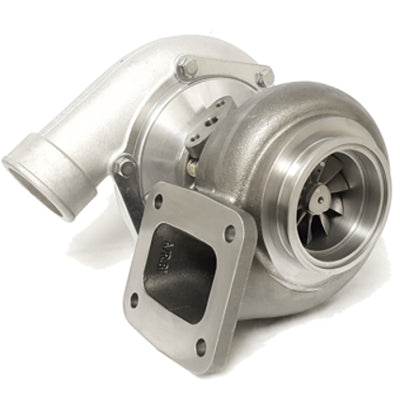

ATP Turbo Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Bearing SuperCore (Turbo w/o Tbn Hsg) P/N 841297-5005
by ATP Turbo
Save 10%
Original Price
$2,110.83 NZD
Current Price
$1,899.75 NZD
SKU GRT-TBO-B73
Buy now pay later,no extra cost!
Payments from $189.97 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett Supercore (Turbo w/o TBN HSG) GTW3884 (aka GTW6765JB) Journal Bearing Turbo. 950 HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
Product Specifications:
- Compressor Wheel Inducer: 67.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 64
- Turbine Wheel Inducer: 74.2mm
- Turbine Wheel Exducer: 64.6mm
- Turbine Wheel Trim: 76
- Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
- NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
- External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
- GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
- Oil feed flange: Product Code: ATP-FLA-041
- Oil feed gasket: Product Code: ATP-GSK-026
- Oil drain flange: Product Code: ATP-FLA-042
- Oil drain gasket: Product Code: ATP-GSK-027
- 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034
- T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R) Default / Standard Option
- T3 Non-Divided Inlet and machined V-band 2.5 inch Outlet (Available in .63, .82, or 1.08 A/R)
- T3 Inlet and welded 3.0 inch GT V-Band (90mm OD) Outlet (Available in .63, .82, or 1.08 A/R)
- T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
- T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R) - Additional $50.00 option
- T3 Divided inlet and V-Band, 3.0 inch Outlet (Available in .78 or 1.06 A/R)
- T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63, or .82 A/R)
- T4 Inlet and V-Band, 3.0 inch Outlet (Available in .68, .81 or .96 A/R)
- T4 Divided inlet and V-Band, 3.0 inch Outlet (Available in .70, .84, 1.00, 1.15, or 1.32 A/R)
- V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange (Product Code: CLC-CLA-040)
- V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .82 A/R). NOTE: V-Band Inlet Manifold Flange (Product Code: ATP-FLS-093)
- 715582-5010S
- 841297-5005S
