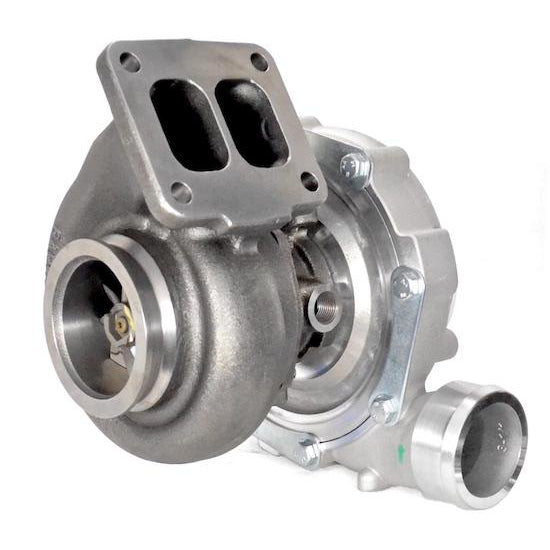

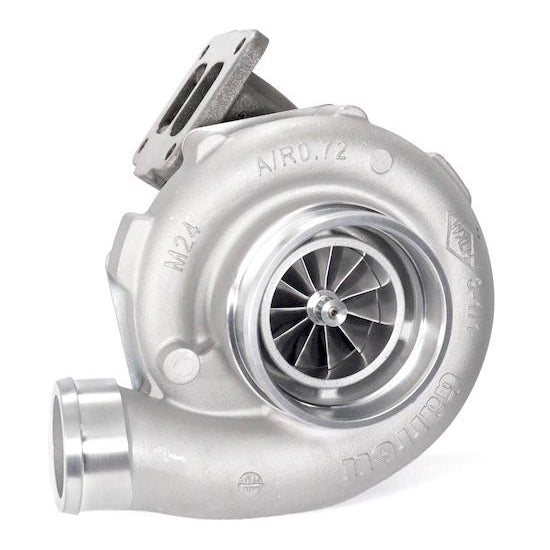

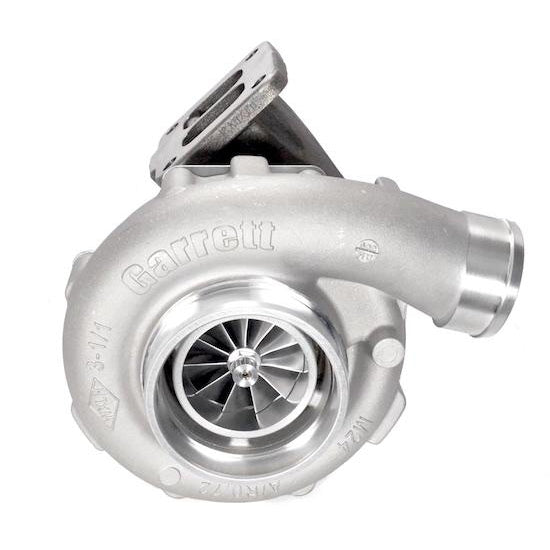

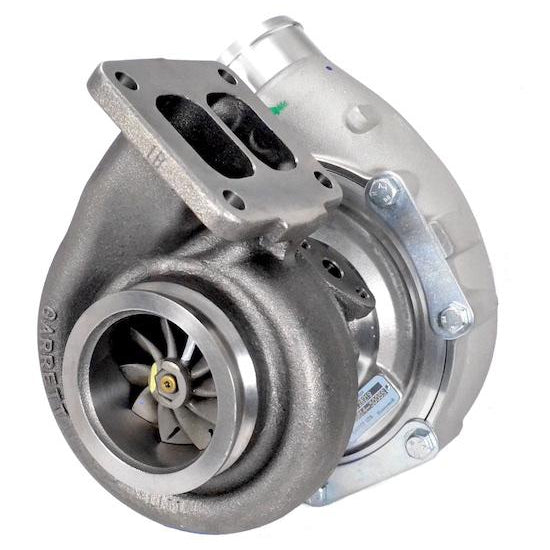

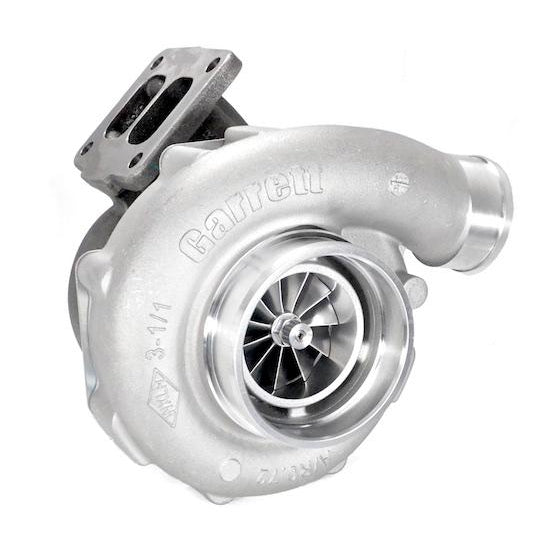

ATP Turbo Garrett GTX4088R Turbo, .95 A/R T4 Divided (Twin-Scroll) Turbine Housing
by ATP Turbo
$5,812.49 NZD
SKU GRT-TBO-B16
Buy now pay later,no extra cost!
Payments from $581.24 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX4088R dual ball bearing turbocharger with a .95 A/R T4 Divided (Twin-Scroll) Inlet and 3" V-Band Outlet. 850HP+ potential flow.
PRODUCT SPECIFICATIONS:
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 65.0mm
- Compressor Wheel Exducer: 88.4mm
- Compressor Wheel Trim: 54
- Compressor Housing: .72 A/R T04H Frame with a 4" Inlet (Ported shroud anti surge) and 2.5" Outlet
- Turbine Wheel Inducer: 77.0mm
- Turbine Wheel Exducer: 68.0mm
- Turbine Wheel Trim: 78
- Turbine Housing: .95 A/R T4 Divided Inlet (Twin-scroll) and 3" V-Band Outlet
- Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
- Oil feed Flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
- Oil Feed Gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T4 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-057
- T4 Divided Inlet Gasket: Product Code:GRT-GSK-014
- Exhaust/Turbo Manifold Flange/Clamp set (for Downpipe): Product Code:CLC-CLA-274
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 825614-5002S
- 825614-5004S
- 825614-5005S
- 803614-2
- 803614-4
- 803614-5
- 751450-0021
- 751450-21
- 751450-0023
- 751450-23
