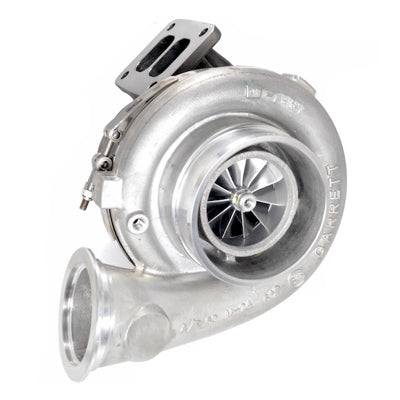

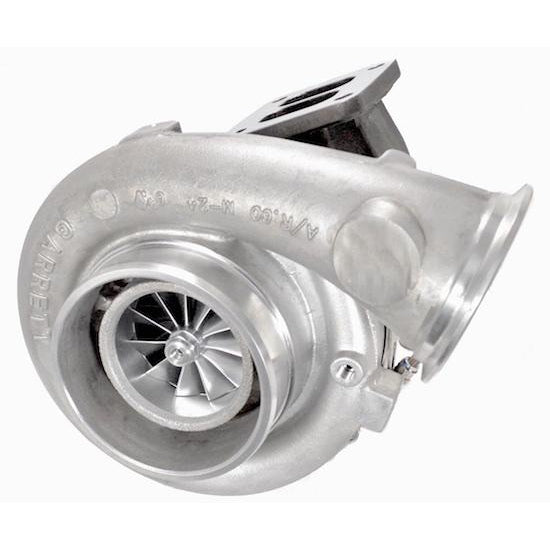

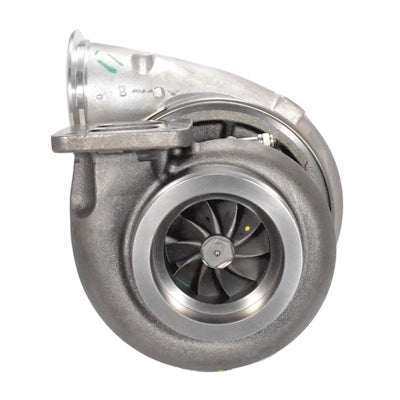

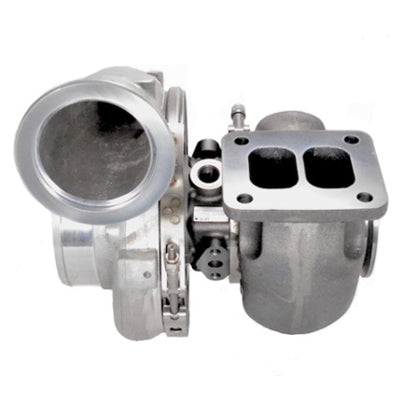

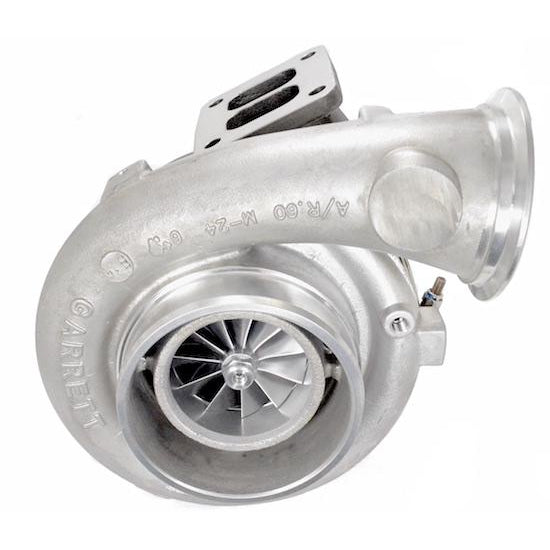

ATP Turbo Garrett GTX4202R - 76mm Ball Bearing - 1.01 AR T4 Divided Turbine Housing
by ATP Turbo
$7,547.01 NZD
SKU GRT-TBO-972
Buy now pay later,no extra cost!
Payments from $754.70 with
Enjoy now. Pay Later. Interest free. Learn More
Garret GTX4202R - 76mm Ball Bearing Turbocharger with a 1.01 A/R T4 Divided Inlet and 4" V-Band Outlet Turbine Housing. Supports over 1,100HP!
Large frame and high flowing compressor housing, featuring built-in ported shroud (anti-surge), 5" Inlet and V-Band outlet (4.5" outer diameter ring and 3.5" tube).
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 75.8mm
- Compressor Wheel Exducer: 102.3mm
- Compressor Wheel Trim: 55
- Compressor Housing: 60 A/R, GT42R Frame, 5" Inlet, V-Band 4.5" OD (3.5" ID) Outlet
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75.1mm
- Turbine Wheel Trim: 84 trim
- Turbine Housing: 1.01 A/R, T4 Divided Inlet, 4" V-Band Outlet
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
- Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- T4 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-057
- T4 Divided Inlet Gasket: Product Code:ATP-GSK-014
- 4" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-352
- 4" V-Band Clamp: Product Code:CLC-CLA-014
NOTE: Alternate coolant and oil fittings and flanges are available.
COMPRESSOR AND TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 800269-5002S
- 451888-0044
