ATP Turbo GEN2 - Garrett GTX5533R - 98mm (aka GTX55-98) W/ 1.30 A/R TiAL Stainless V-Band Turbine Hsg.
ATP Turbo GEN2 - Garrett GTX5533R - 98mm (aka GTX55-98) W/ 1.30 A/R TiAL Stainless V-Band Turbine Hsg.

ATP Turbo GEN2 - Garrett GTX5533R - 98mm (aka GTX55-98) W/ 1.30 A/R TiAL Stainless V-Band Turbine Hsg.

by ATP Turbo
Save 10%
$12,432.73 NZD
$11,189.46 NZD
SKU GRT-TBO-B89
Buy now pay later,no extra cost!

Payments from $1,118.94 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

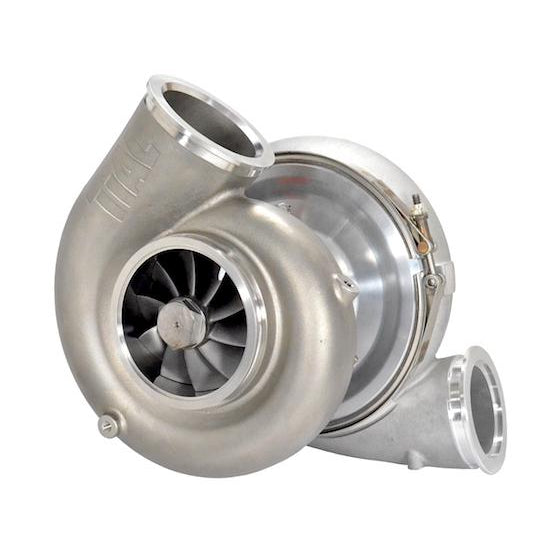

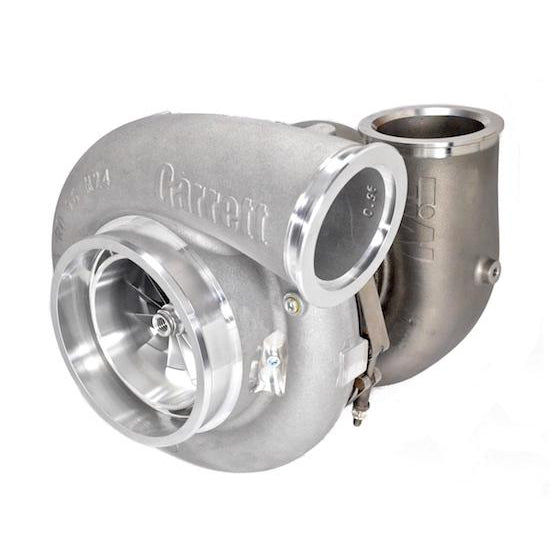

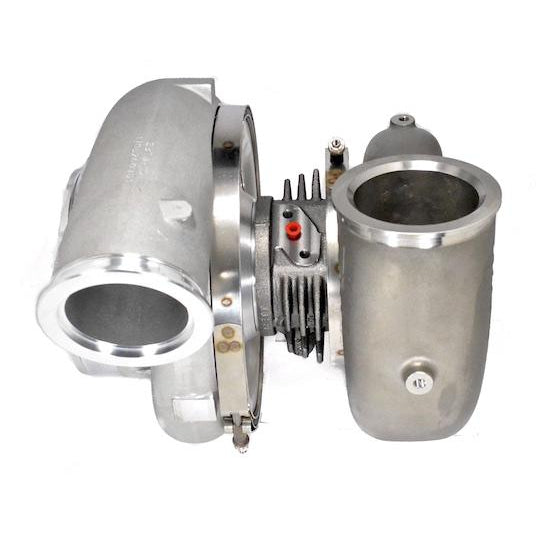

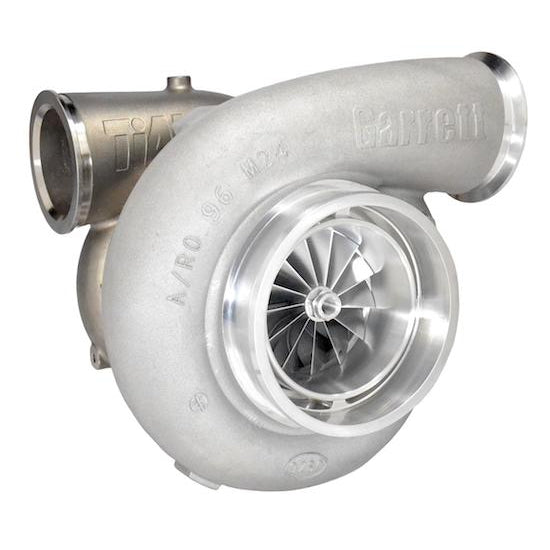

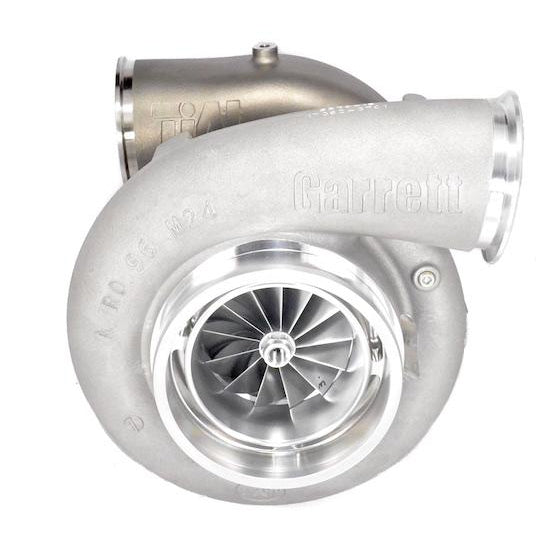

Garrett GEN2 GTX5533R (98mm) also known as the GEN2 "GTX55-98", dual ball bearing turbocharger with a 1.30 A/R TiAL Stainless Steel V-Band Inlet and V-Band Outlet Turbine Housing. Designed for race classes limited to a 98mm compressor wheel inducer.

PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Machined speed sensor port
  • Light weight billet backplate
  • Oil cooled bearing housing (no water ports)
  • Dual ball bearing CHRA rotating assembly

    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 98mm
  • Compressor Wheel Exducer: 133mm
  • Compressor Wheel Trim: 54
  • Compressor Housing: 0.96 A/R, 6" Inlet, and 3.5" V-Band Outlet
  • Turbine Wheel Inducer: 112mm
  • Turbine Wheel Exducer: 102mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.30 A/R, 3.5" V-Band Inlet and 4.5" V-Band Outlet

    • OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Oil feed flange: Product Code: ATP-FLA-008
  • Oil feed gasket: Product Code: GRT-GSK-011
  • Oil drain flange: Product Code: ATP-FLA-035
  • Oil drain gasket: Product Code: GRT-GSK-035
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055

  • V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-225
  • V-Band Inlet Clamp: Product Code:CLC-CLA-045
  • V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-226
  • V-Band Outlet Clamp: Product Code:CLC-CLA-046

    • NOTE: Alternate oil fittings and flanges are available.

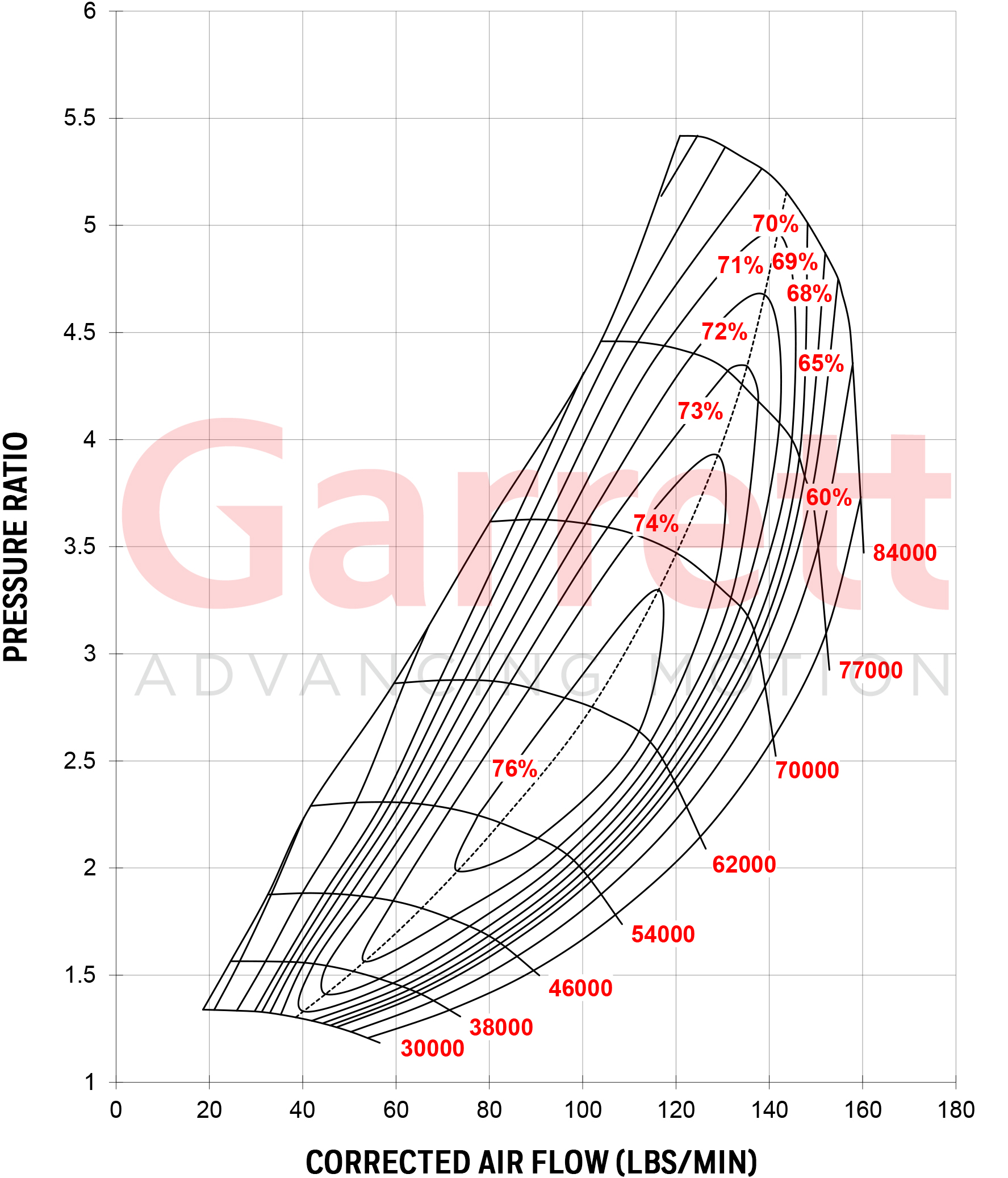

    COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 851285-5005S
