ATP Turbo Turbocharger, Garrett Gen2 GTX4720R - 80mm with a TiAL 1.45 A/R V-band Turbine Housing
by ATP Turbo
$9,917.11 NZD
SKU GRT-TBO-K48
Buy now pay later,no extra cost!
Payments from $991.71 with
Enjoy now. Pay Later. Interest free. Learn More

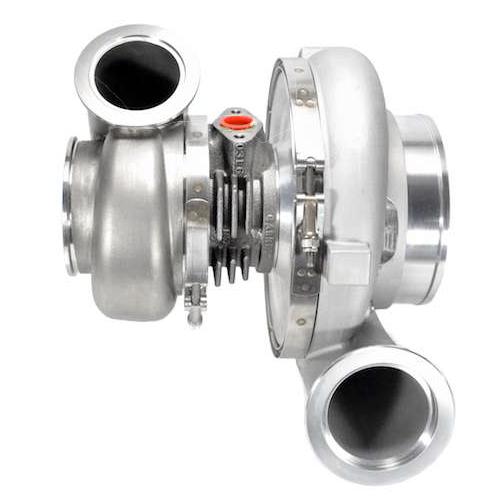

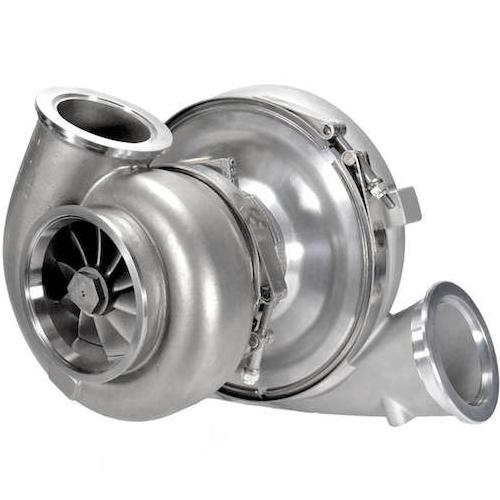

Garrett Gen2 GTX4720R-80mm dual ball bearing turbocharger with a TiAL 1.45 A/R stainless turbine housing.
The most responsive configuration for Garrett's high flow Gen II GTX 80mm compressor wheel. The turbo for race classes limited to a 80mm compressor wheel inducer and/or GT/GTX47 series turbo.
Product Features:
- Gen II compressor wheel aerodynamics
- 9%-15% increased flow
- Larger .88 A/R compressor housing volute
- 120mm comp exducer ( + 2mm) with 30% lower inertia
- Compatible with GT and GTX turbine housings
- Compressor Wheel Inducer: 80mm
- Compressor Wheel Exducer: 120mm
- Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
- Compressor Wheel Trim: 41
- Turbine Wheel Inducer: 93mm
- Turbine Wheel Exducer: 84mm
- Turbine Wheel Trim: 82
Oil Fittings, Flanges, and Components Solutions:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-095
- V-Band Inlet Clamp: Product Code:CLC-CLA-027
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-096
- V-Band Outlet Clamp: Product Code:CLC-CLA-028
NOTE: Alternate oil fittings and flanges are available.
Turbine Map:
Garrett Part Numbers:
- 851285-5014S
