ATP Turbo Turbocharger - Garrett GTX4294R W/ T4 DIV 1.01 A/R
by ATP Turbo
$6,731.26 NZD
SKU GRT-TBO-G54
Buy now pay later,no extra cost!
Payments from $673.12 with
Enjoy now. Pay Later. Interest free. Learn More

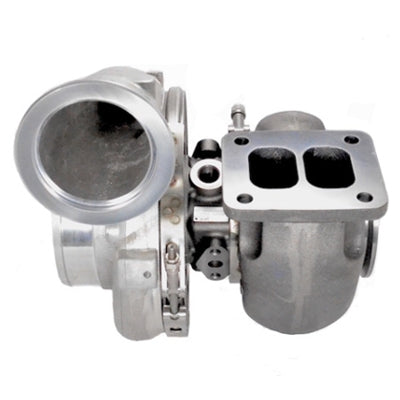

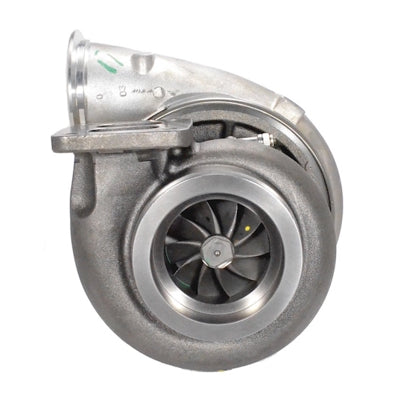

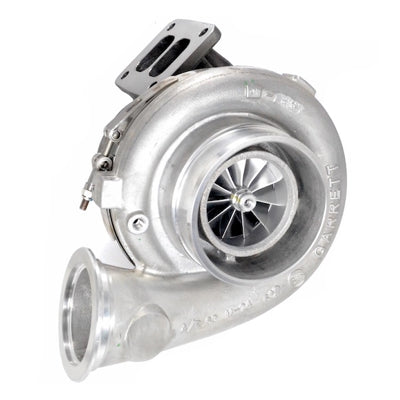

Garret GTX4294R ball bearing turbocharger with T4 divided 1.01 A/R turbine housing. Supports over 1,000HP!
Product Specifications:
- Compressor Wheel Inducer: 70.3mm
- Compressor Wheel Exducer: 94mm
- Compressor Wheel Trim: 56
- Compressor Housing: 60 A/R
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75.1mm
- Turbine Wheel Trim: 84 trim
- Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
- Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- T4 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-057
- T4 Divided Inlet Gasket: Product Code:ATP-GSK-014
- 4" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-352
- 4" V-Band Clamp: Product Code:CLC-CLA-014
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 800269-5001S
