Eagle Connecting Rod Set - H23A
Buy now pay later,no extra cost!
Payments from $78.82 with

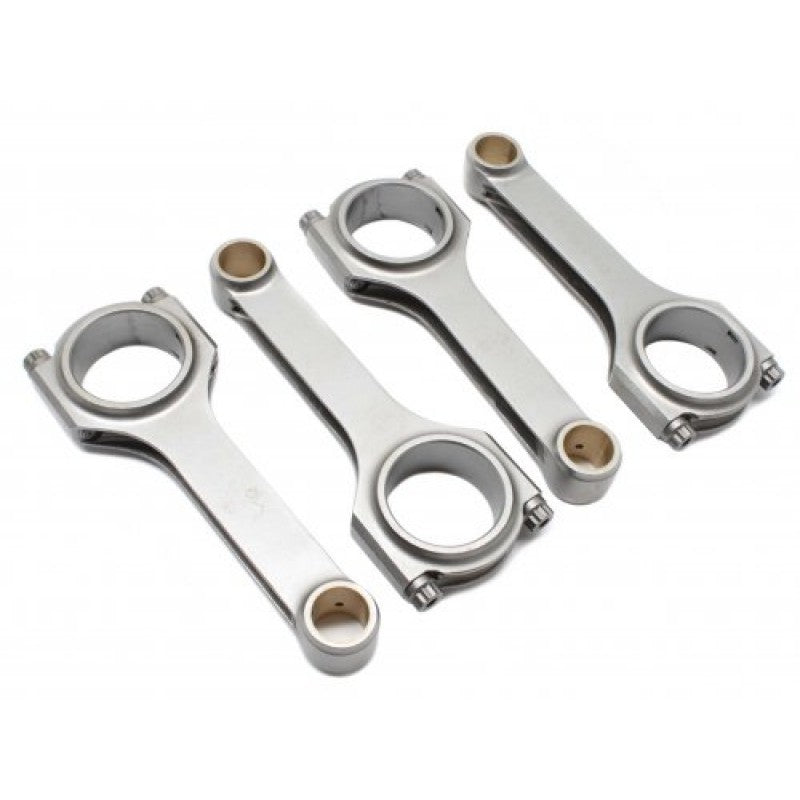

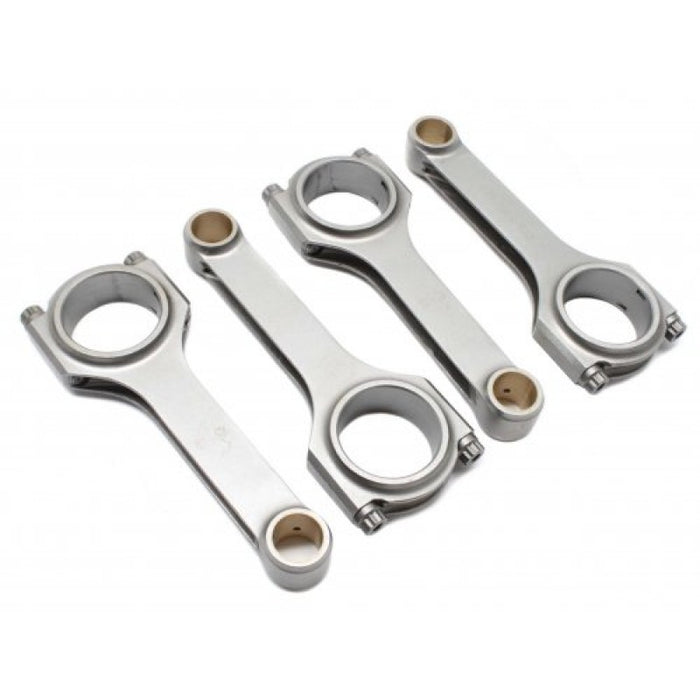

The Eagle ESP Import H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal.
The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations.
They come standard with ARP 2000 rod bolts!
Rated to 900 HP
Specifications:
Advertised Horsepower Rating (hp) - 900 hp
Advertised RPM Rating - 7,500 rpm
Approximate Connecting Rod Weight (g) - 510
Big End Bore Diameter (in.) - 1.771
Big End Width (in.) - 0.935
Cap Retention Style - Cap screw
Clearanced for Stroker - No
Connecting Rod Beam Style - H-beam
Connecting Rod Bolt Brand - ARP
Connecting Rod Bolt Head Style - 12-point
Connecting Rod Bolt Material - ARP2000 alloy
Connecting Rod Finish - Shot-peened
Connecting Rod Length Center to Center (in.) - 5.394
Connecting Rod Material - Forged 4340 steel
Fastener Yield Strength (psi) - 200,000
Magnafluxed - Yes
Pin End Bore Diameter (in.) - 0.748
Pin End Width (in.) - 0.935
Quantity - Sold as a set of 4
Remanufactured - No
Weight Matched Set - Yes
Wrist Pin Style - Floating
