HKS 02-06 Subaru Impreza WRX Light Action Single Plate Clutch Kit
by HKS
Save 10%
Original Price
$3,381.00 NZD
Current Price
$3,042.90 NZD
SKU 26010-AF002
Buy now pay later,no extra cost!
Payments from $304.29 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*

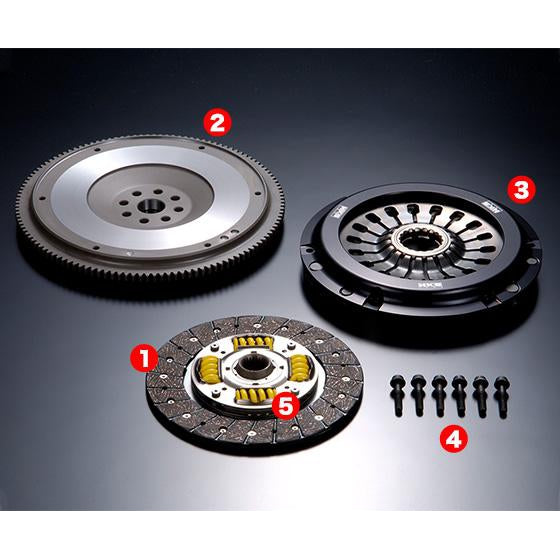

Single Plate Clutch Kit that includes Clutch Disc, Cover, Flywheel for up to 450ps. "MG Composite Disc" eliminates uncomfortable vibration during clutch engagement. Launch controllability and higher torque transfer capacity than metal disc are well balanced. Disc Damper prevents unusual noise from transmission and absorbs shock torque. It protects drive train.New "MG Composite Disc"

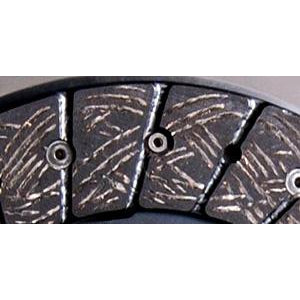

- "MG Composite Disc" is composite of Metal fiber and Glass fiber. The newly developed disc has ideal performance of friction coefficient , anti-heat and strength.
- For street driving, clutch engagement is easy and smooth. For circuit driving, it engages quickly without sliding.
- Diameter of disc is about 10mm smaller. The low inertia disc protects synchronizer and accepts quick gear change.
- The lightweight Flywheel weighs70%-80% in order to balance smooth engagement operation, quick response and acceleration.
- Clutch cover has Strap Drive Mechanism that eliminates noise while clutch disconnection.
- It ensures clutch disconnection.
- Bolt On Design. No modification is required.
- All required parts are included in the kit.
- No parts to change movement type is required.
- It is easy installation and OEM parts are not required.(Replacement of Release Bearing is recommended.)

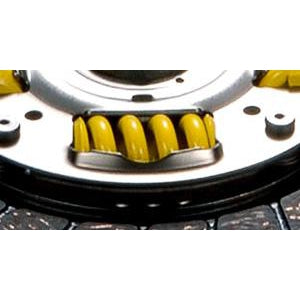

- Disc Damper prevents uncomfortable gear noise from transmission.
- It absorbs shock torque and protects drive train.

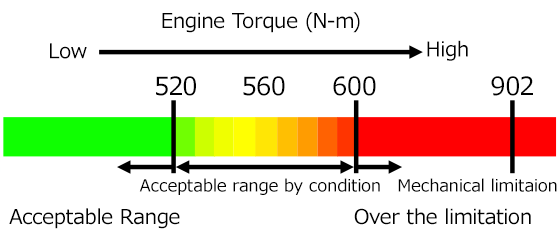

- Acceptable Range is the range of engine torque that the clutch can be used for except intentional overheating of clutch.
- Acceptable range by condition is the range that the clutch might slide by rough operation, kick back from tire and distortion of parts etc.
- Over the limitation is the range that the clutch might slide during clutch engagement at high rpm.
- Mechanical limitation is the point that sliding starts when accelerated during driving.
| Impreza/wagon, Forester /Legacy/Wagon | |||
| Stock | HKS | Comparison | |
| Clutch Capacity (N･m) | 600 | 902 | 150% |
| Pedal pressure (N) | 132 | 152 | 115% |
| FW weight (kg) | 10.94 | 5.74 | 52.60% |
Repair parts
| Product | Code no. | Price (w/o tax) | Remark |
| Repair clutch cover | 26999-AF001 | ||
| Repair clutch disc | 26999-AF002 | ||
| Repair bolt set | 26999-AK004 | ||
| Repair fry wheel bolt | 26999-AF003 | 26010-AF002 only |
|
Vehicle |
Model | Engine | Model Year | Mission Type | Form | Flywheel Weight | Clutch Type | Code No. | Price | Instruction Manual | Remarks |
| IMPREZA WRX | GDA | EJ20 | 00/08 -05/05 | Stock 5 speed | PULL | 5.75kg | SINGLE | 26010-AF002 |
